Double emission systems for indoor application. The warm white LED light source with a diffused + no optic light distribution is composed of 348 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 7270 lm, with a 158.0 lm/W nominal luminous efficacy.The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20; the total weight is of 2.2 kg.The total absorbed power is 50 W.The device features protection class I and can be ceiling-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Instruction sheet

Combinato + C-U200002 IESNA C00793WHWDZ_C-U200002

Combinato + C-U200002 Eulumdat C00793WHWDZ_C-U200002

Combinato + C-U200026 IESNA C00793WHWDZ_C-U200026

Combinato + C-U200026 Eulumdat C00793WHWDZ_C-U200026

Product dimensions

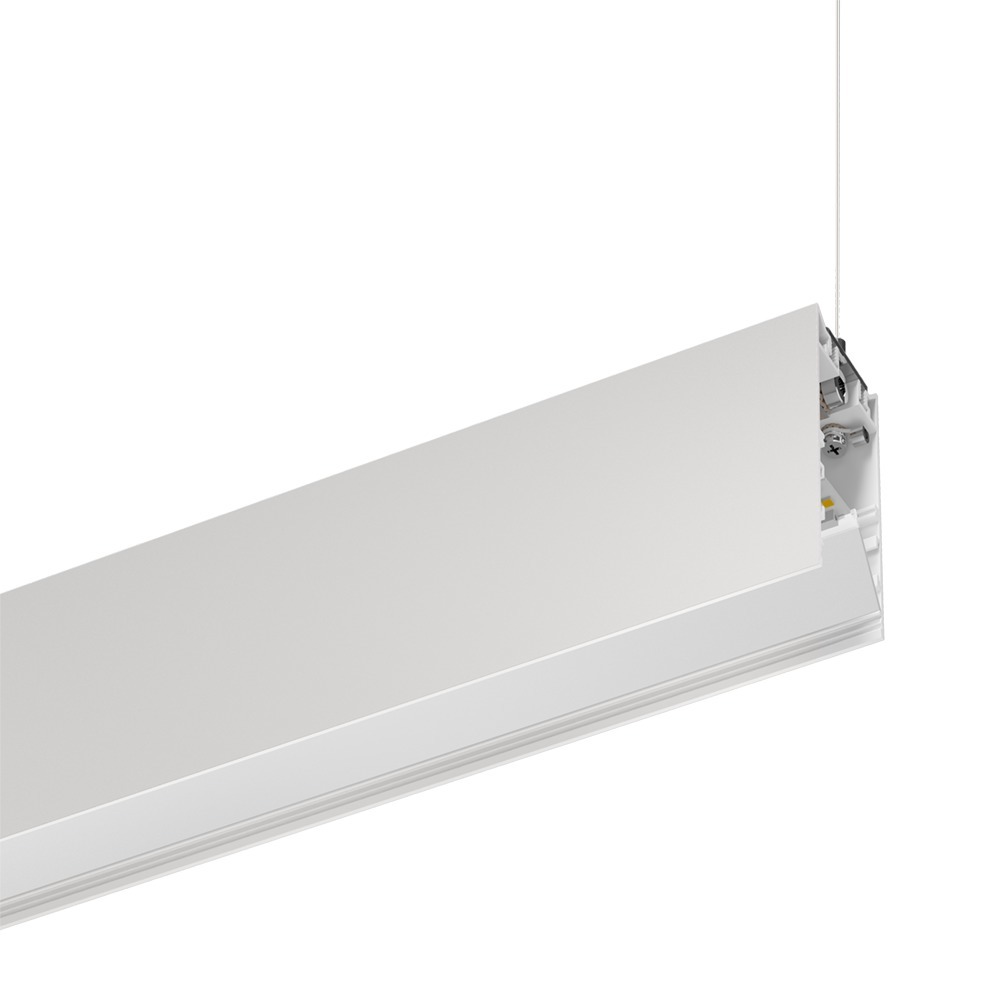

Product image

Specification text

Rollip35_MP

ProductLeaf

Cable cover

Diffuser

Suspensions

Closing cap

Rollip

C00793WHWDZ
