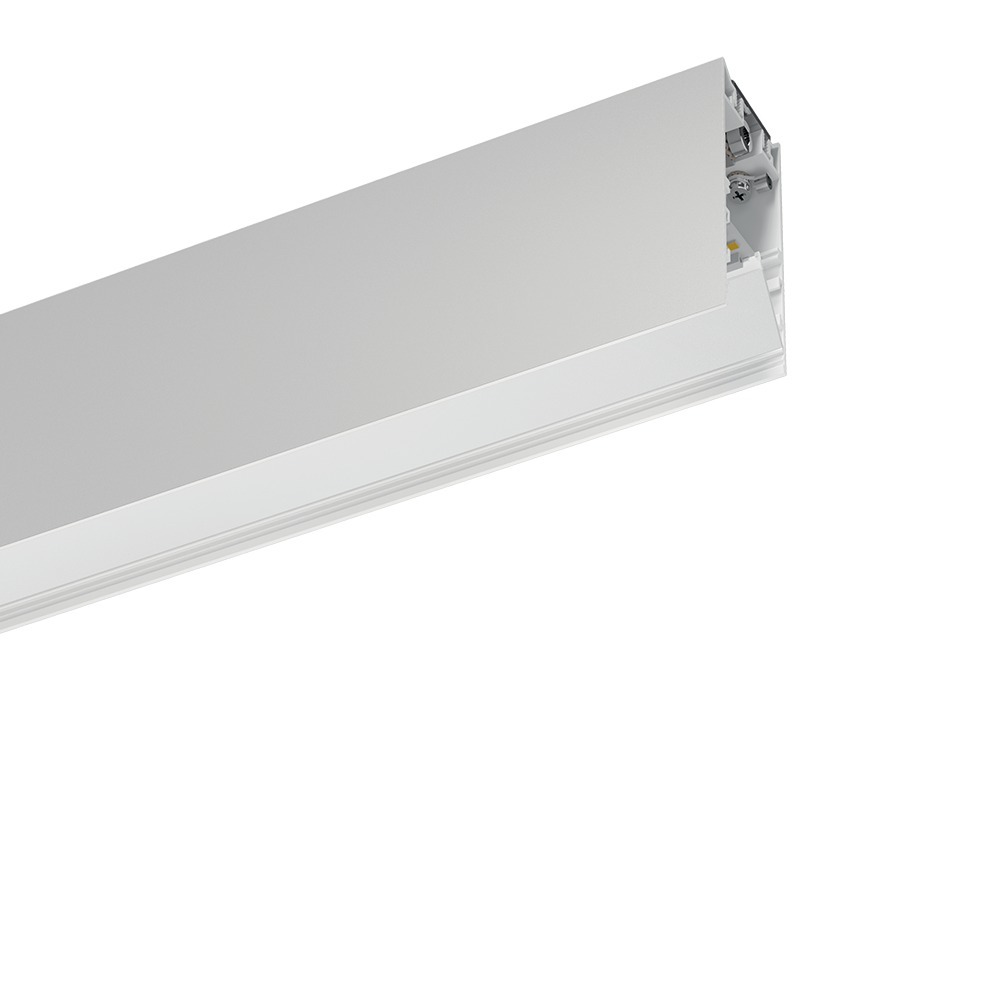

Single emission systems for indoor application. The warm white LED light source with a no optic light distribution is composed of 144 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2078 lm, with a 159.8 lm/W nominal luminous efficacy.The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 1.1 kg.The total absorbed power is 14.5 W.The device features protection class I and can be ceiling-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Combinato + C-U200002 IESNA C00794WHWZZ_C-U200002

Combinato + C-U200002 Eulumdat C00794WHWZZ_C-U200002

2d_Dwg

2d_Dxf

Instruction sheet

Product dimensions

Product image

Specification text

Rollip35_MS

ProductLeaf

Diffuser

Closing cap

Fixing bracket for Rollip35_MS /Rollip60_MS

Bracket

Rollip

C00794WHWZZ
