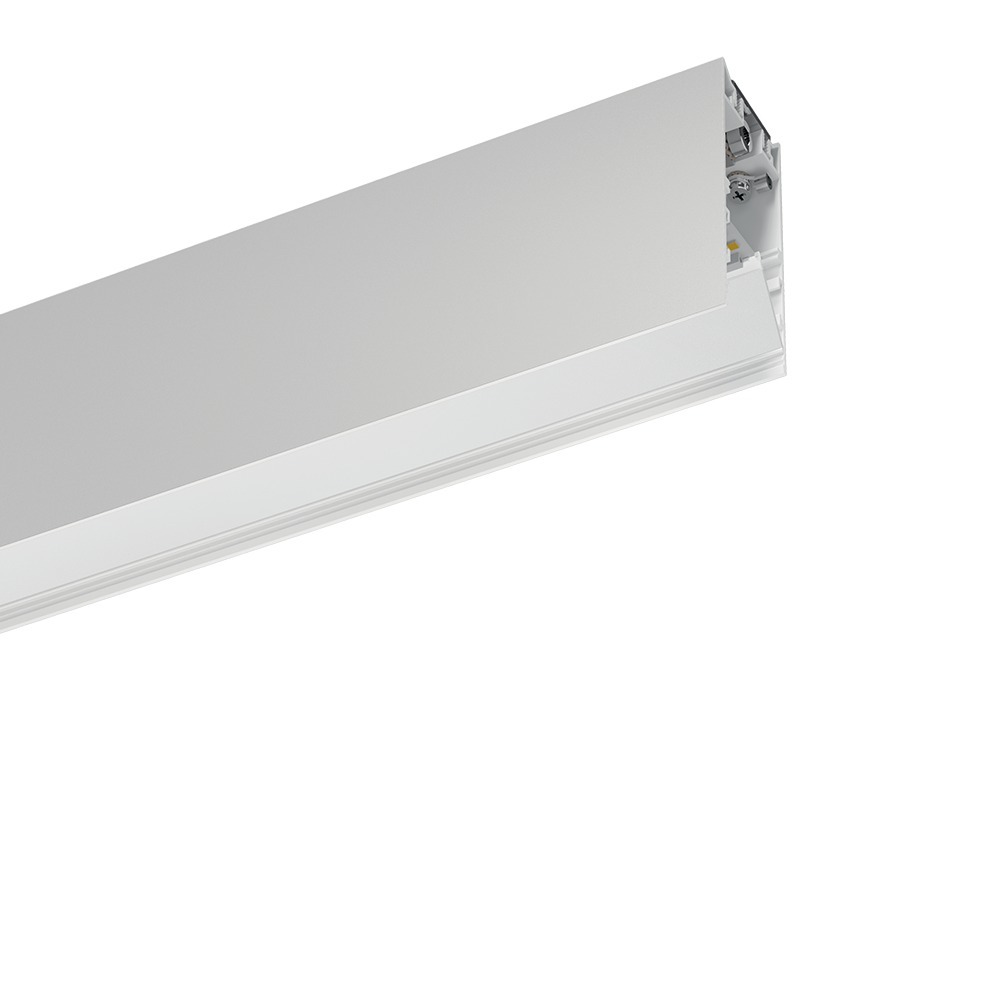

Single emission systems for indoor application. The super warm white LED light source with a no optic light distribution is composed of 288 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 3968 lm, with a 152.6 lm/W nominal luminous efficacy.The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 2.2 kg.The total absorbed power is 29 W.The device features protection class I and can be ceiling-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Combinato + C-U200002 IESNA C00837WHMZZ_C-U200002

Combinato + C-U200002 Eulumdat C00837WHMZZ_C-U200002

2d_Dxf

2d_Dwg

Instruction sheet

Product dimensions

Product image

Specification text

Rollip35_MS

ProductLeaf

Closing cap

Diffuser

Fixing bracket for Rollip35_MS /Rollip60_MS

Bracket

Rollip

C00837WHMZZ
