Rollip60_MS
C00803BBNZZ
Indoor / Catenary and Systems, Linear Lights
Systems | 198-264 V AC /180-280 V DC
144 topLED 13 W DC - 14.5 W AC | Modular
| IP | IP40 |
|---|---|
| Optic | No Optic |
| Degrees | 71.6° |
| CCT | 4000 K |
| CRI | 90 |
| Optical compartment IP | IP54 |
| Delivered lumens | 1779 lm |
| Finishes | Black |
| Installation position | Ceiling |
| Control | |
| Source Type | topLED |
Technical description

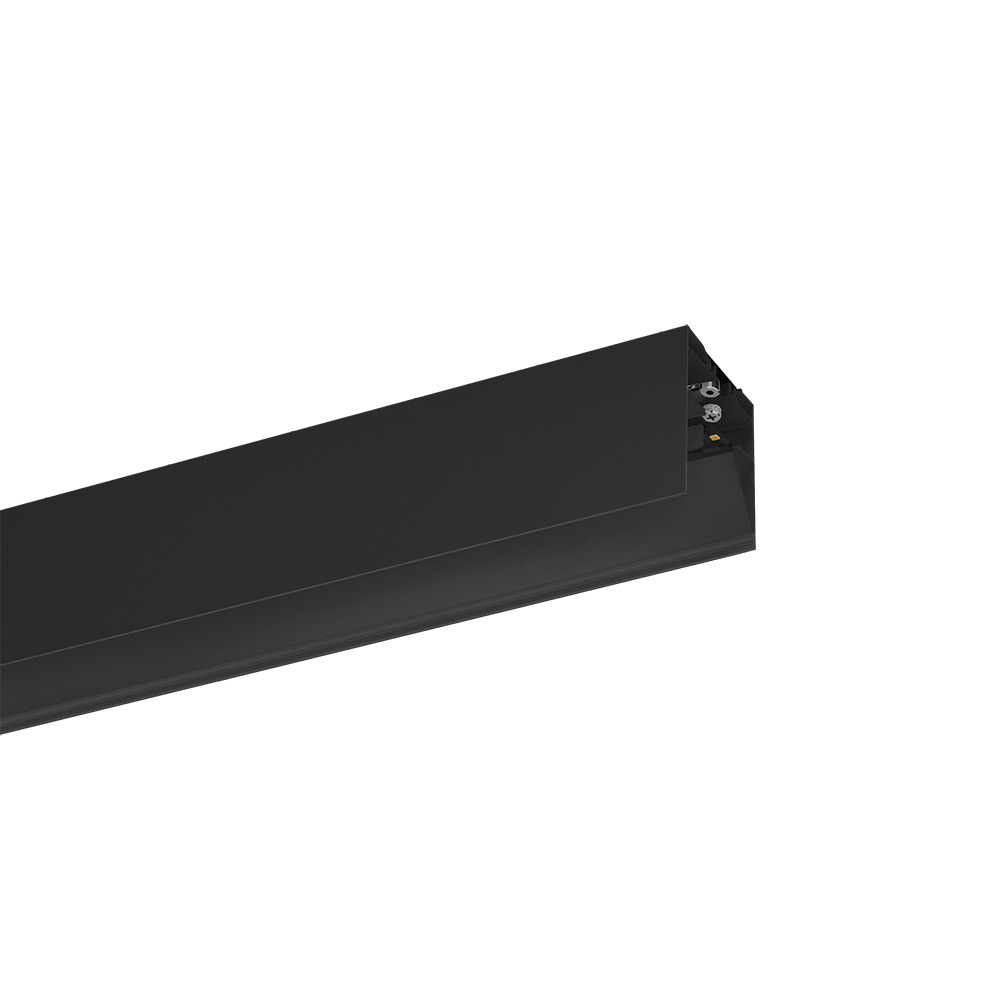

Single emission systems or lines for indoor application. The natural white LED light source with a no optic light distribution is composed of 144 topled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 2228 lm, with a 171.4 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a black finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 1.1 kg.
The total absorbed power is 14.5 W.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
