Satori_W
9185M
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
312 topLED 35 W DC - 38 W AC
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 129.6° |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | 2426 lm |
| Finishes | Black |
| Installation position | Wall lights |
| Control | DALI-2 |
| Efficiency | 63.8 lm/W |
| Source Type | topLED |
Technical description

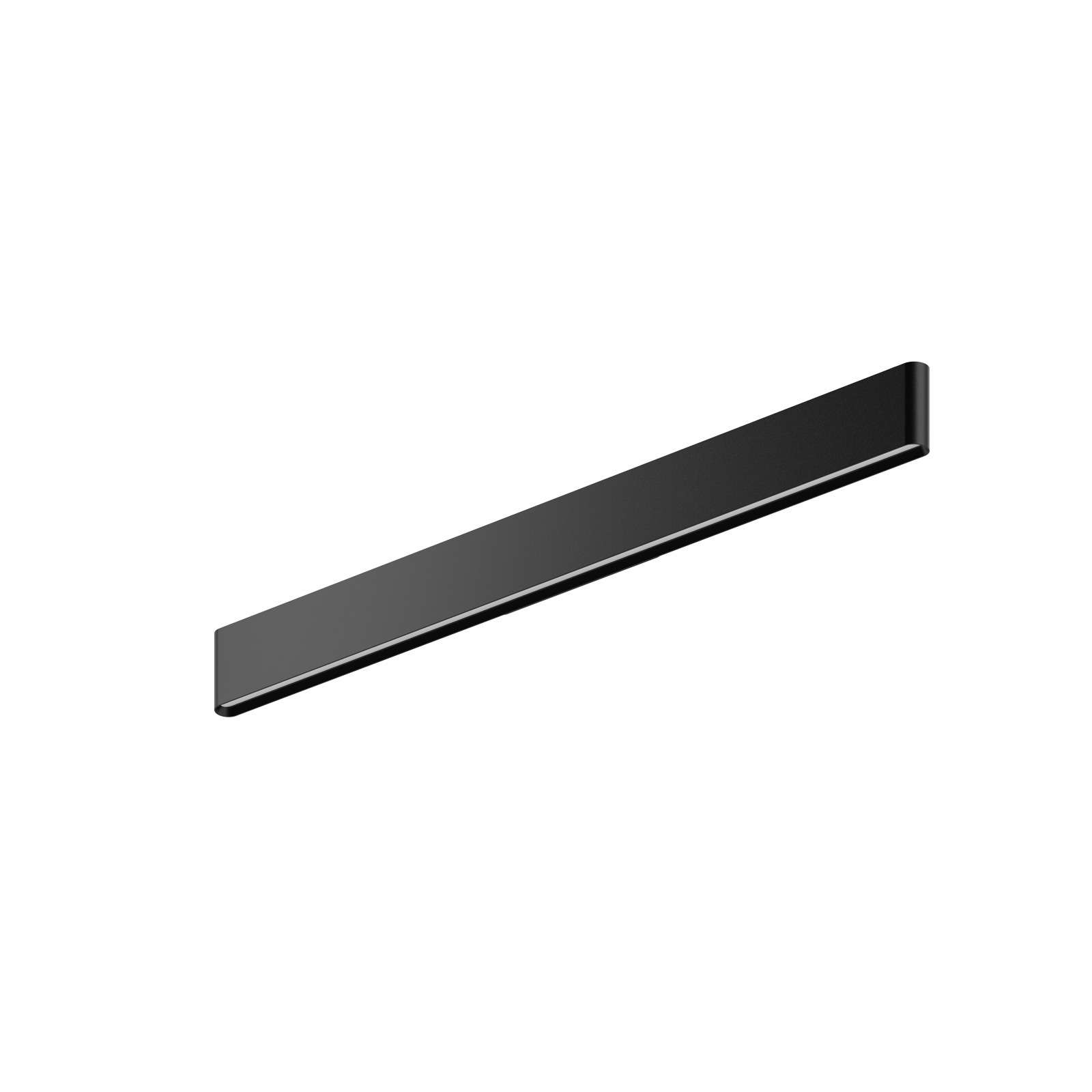

Double emission wall lights for indoor application. The super warm white LED light source with a diffused light distribution is composed of 312 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 5624 lm, with a 160.7 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of PC; the mounting frame is made of aluminium, with a black finish, processed by means of coating. The ingress protection degree is IP20;
The total absorbed power is 38 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
