Sinfonia System - Puccini
9511
Indoor / Catenary and Systems
Systems
1 topLED 2 W DC 350 mA
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 54.6° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 148 lm |
| Finishes | Black |
| Installation position | Ceiling |
| Control | |
| Efficiency | 74.0 lm/W |
| Source Type | topLED |
Technical description

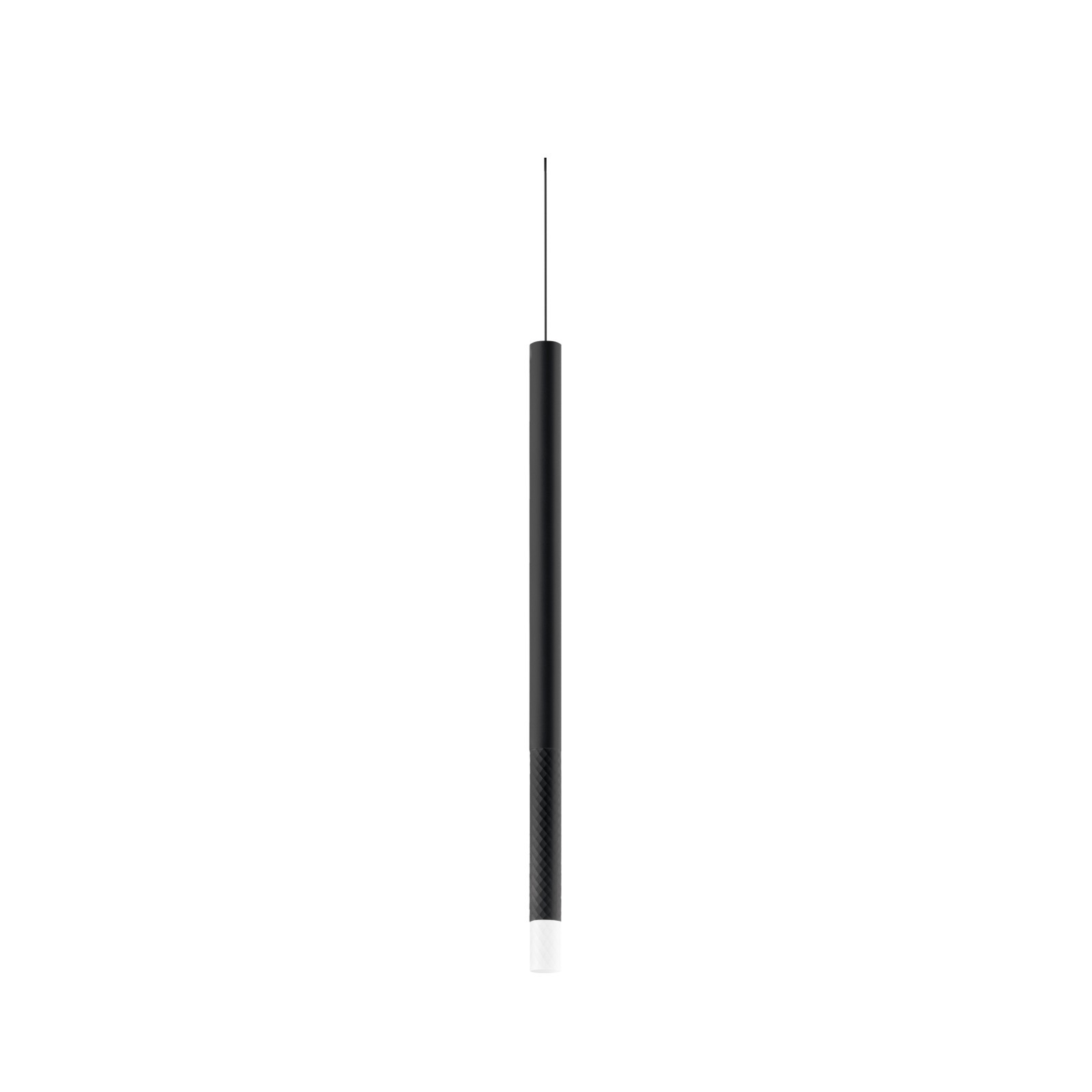

Single emission systems for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 230 lm, with a 115.0 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 0.480 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 2 W. The power supply cable is included and features a 5 m length.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
