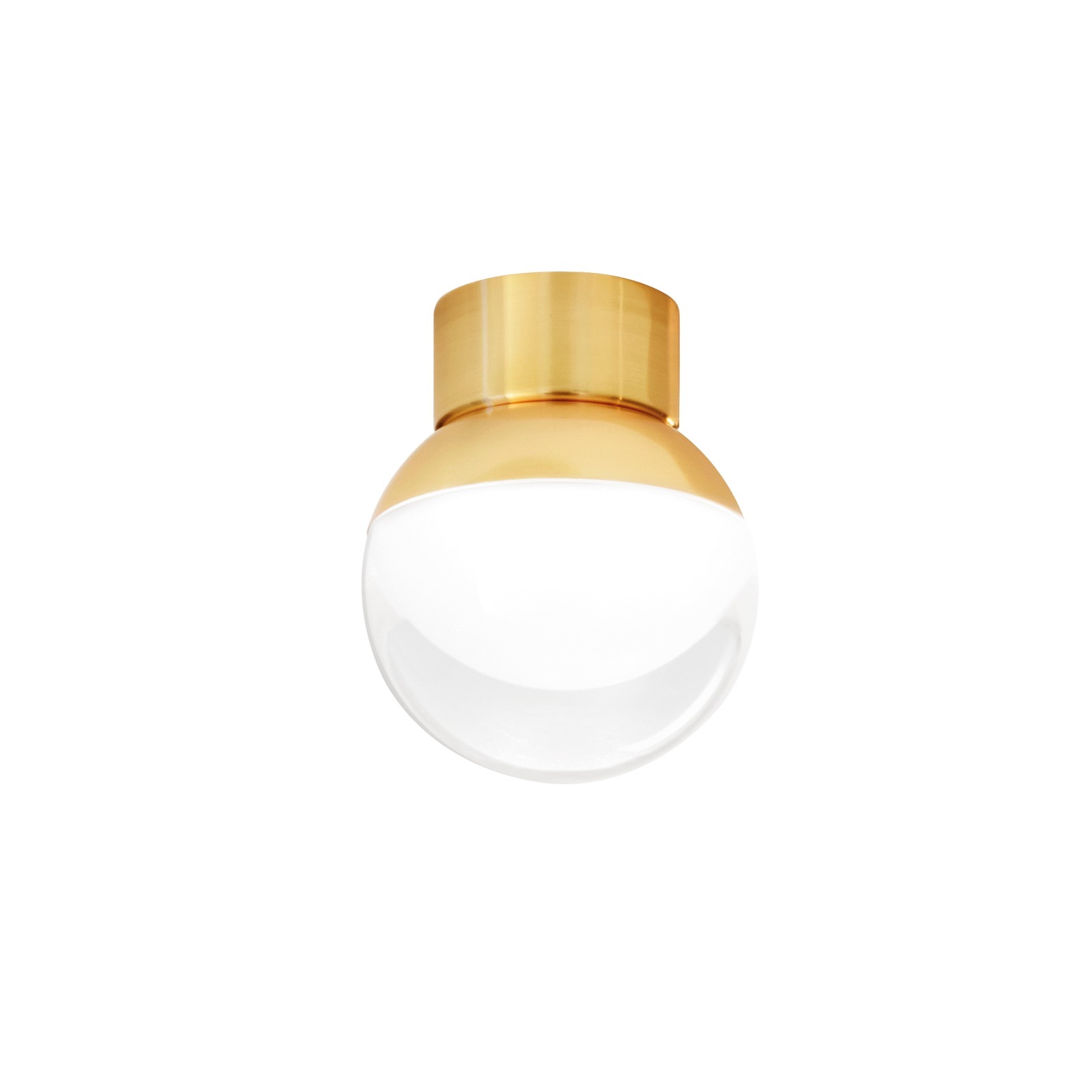

Sinfonia System - Rossini_S
9219
Indoor / Catenary and Systems
Systems
1 topLED 5 W DC 350 mA
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 87.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 468 lm |
| Finishes | Gold |
| Installation position | Ceiling |
| Control | |
| Efficiency | 78.0 lm/W |
| Source Type | topLED |
Technical description
Single emission systems for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 627 lm, with a 125.4 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a gold finish, processed by means of electroplating; the diffuser is made of pmma; the mounting frame is made of aluminium, with a gold finish, processed by means of electroplating. The ingress protection degree is IP20; the total weight is of 0.685 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 5 W.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
