Vivaldi_P3
9246
Indoor / Pendant Lights
Pendant Luminaires | 220-240 V
1 topLED 15 W DC - 17 W AC
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 139.2° |
| CCT | 3000 K |
| CRI | 90 |
| Optical compartment IP | IP40 |
| Delivered lumens | 1016 lm |
| Finishes | Black |
| Installation position | Ceiling |
| Control | |
| Efficiency | 59.8 lm/W |
| Source Type | topLED |
Technical description

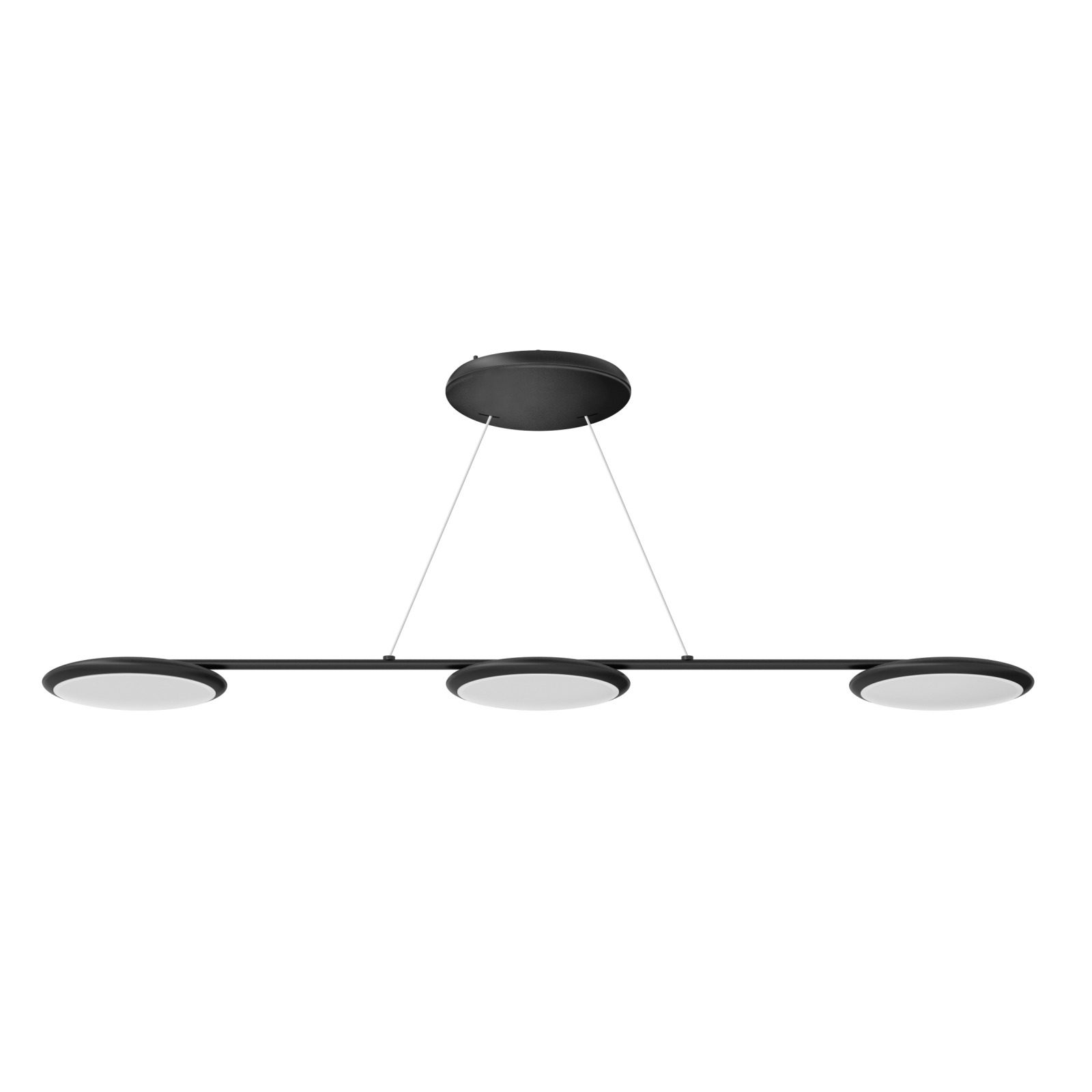

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1569 lm, with a 104.6 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of pmma; the mounting frame is made of aluminium, with a black finish, processed by means of coating. The ingress protection degree is IP20; the total weight is of 4.312 kg.
The total absorbed power is 17 W. The power supply cable is included and features a 3 m length.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
