Skylum_R Comfort
C00741WHWDI
Indoor / Ceiling Lights
Ceiling Downlights | 198-264 V AC /180-280 V DC
144 topLED 19 W DC - 22 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 87.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 2270 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | DALI-2 |
| Efficiency | 103.2 lm/W |
| Source Type | topLED |
Technical description

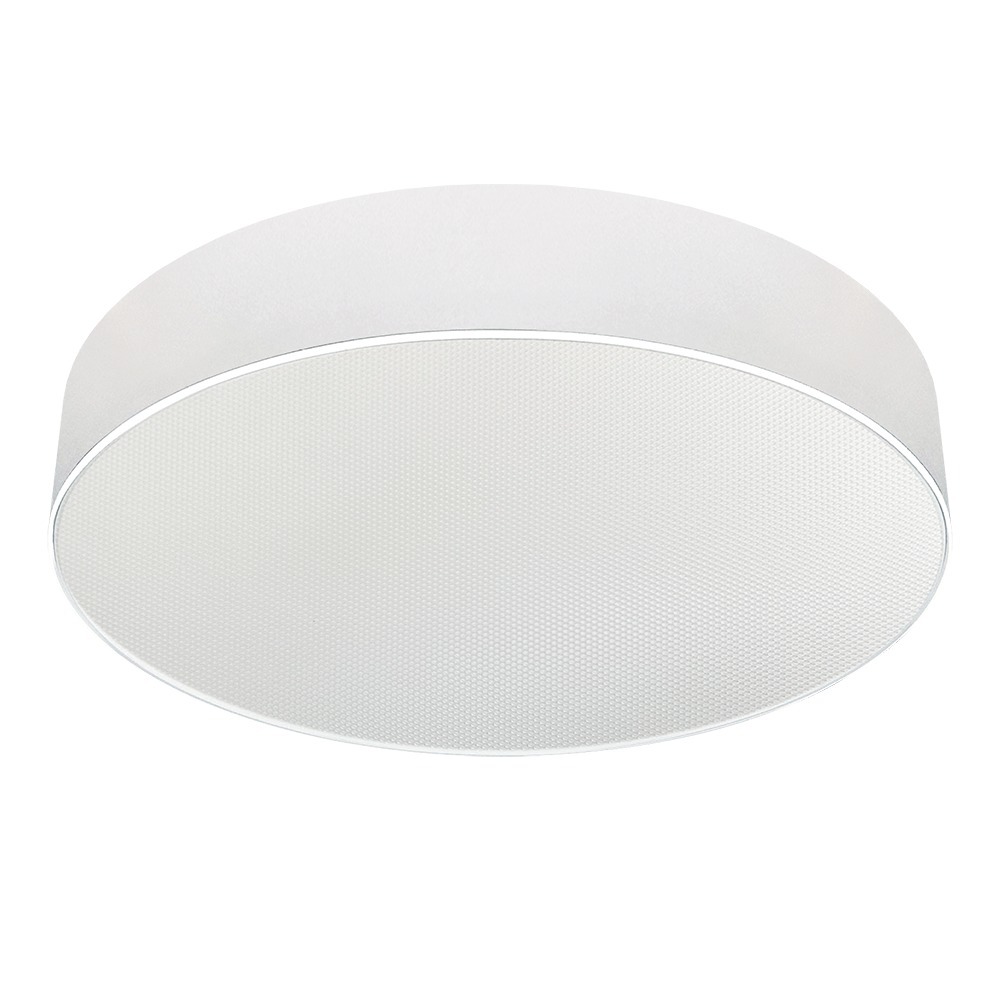

Single emission ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 144 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3129 lm, with a 164.7 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of technical fabric. The ingress protection degree is IP40; the total weight is of 2.1 kg.
The total absorbed power is 22 W.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
