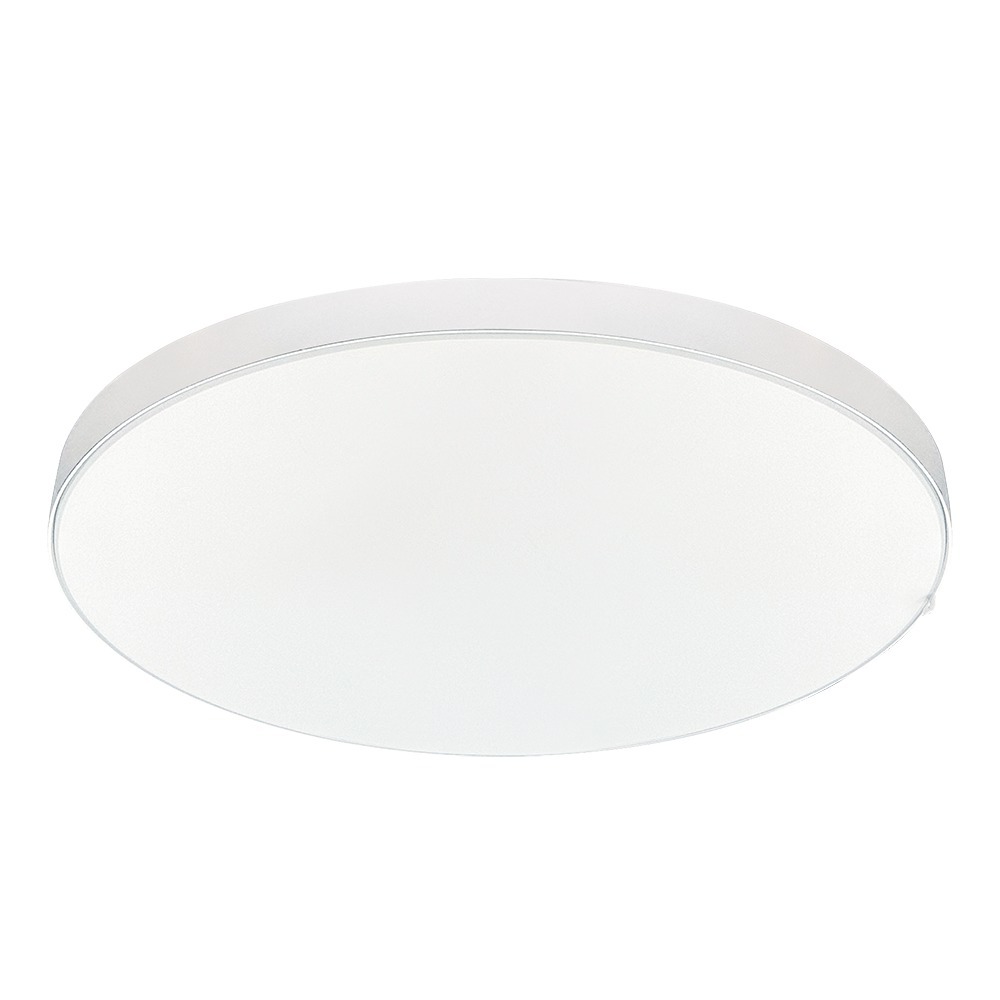

Single emission ceiling downlights for indoor application. The super warm white LED light source with a diffused light distribution is composed of 756 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 13842 lm, with a 155.5 lm/W nominal luminous efficacy.The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of technical fabric. The ingress protection degree is IP40; the total weight is of 9.5 kg.The total absorbed power is 99 W.The device features protection class I and can be ceiling-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

3d_Step

2d_Dwg

Base IESNA C00734WHMDI

Base Eulumdat C00734WHMDI

Instruction sheet

Product dimensions

Product image

Specification text

Skylum_R

ProductLeaf

Skylum

C00734WHMDI

Ciao, hai ricevuto una richiesta di contatto dal sito Linealight.
Riepiloghiamo qui le informazioni che l'utente ci ha lasciato:

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Country: [[COUNTRY]]
City: [[CITY]]
Profession: [[PROFESSION]]
Company: [[COMPANY]]
Subject: [[SUBJECT]]
Message: [[MESSAGE]]


Sei pregato di ricontattarlo al più presto.

Ciao, hai una nuova iscrizione alla newsletter.
Riepiloghiamo qui i dati che l'utente ci ha lasciato.

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Country: [[COUNTRY]]
Professionist: [[PROFESSIONIST]]

Grazie

Ciao, hai ricevuto una nuova richiesta di garanzia dal sito.
Riepiloghiamo qui di seguito i dati lasciati dall'utente:

Contact Name: [[CONTACT_NAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Company: [[COMPANY]]
Order Number: [[ORDER_NUMBER]]
Project Name: [[PROJECT_NAME]]
Address: [[ADDRESS]]
Installer Company: [[INSTALLER_COMPANY]]
Installer Company Contact: [[INSTALLER_COMPANY_CONTACT]]
Applications: [[APPLICATIONS]]

Grazie

Dear Customer,
we confirm that the completion of the 5-Year Warranty form, on the Linealight website, was successful.
We summarize below the data you provided:

Contact Name: [[CONTACT_NAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Company: [[COMPANY]]
Order Number: [[ORDER_NUMBER]]
Project Name: [[PROJECT_NAME]]
Address: [[ADDRESS]]
Installer Company: [[INSTALLER_COMPANY]]
Installer Company Contact: [[INSTALLER_COMPANY_CONTACT]]
Applications: [[APPLICATIONS]]

Thank you for choosing Linealight Group.

Ciao, hai ricevuto una nuova candidatura dal sito.
Riepiloghiamo i dati che l'utente ci ha lasciato.

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Position: [[POSITION]]
Branch: [[BRANCH]]
CV: [[CV]]
Message: [[MESSAGE]]

Grazie

Your application to Linealight Group has been successfully submitted.
You have applied for:

Position: [[POSITION]]
Branch: [[BRANCH]]

Dear Candidate,
Thank you for your recently submitted application.
We will make sure to contact you in case of future collaboration opportunities.

Best regards,
The HR team at Linea Light Group

Dear Customer, thank you for using our <a title="Modus Configurator" href="[CONFIGURATOR_URL]" target="_blank">Modus Configurator</a>.
Attached you will find the configuration data sheet Ref. [GUID] with its legend. Below are all the technical data sheets of the components used for the configuration:
[PRODUCT_SUMMARY]
You can view and change the configuration at any time at this address:
<a title="View or modify your Modus configuration" href="[CONFIGURATION_URL]" target="_blank">[CONFIGURATION_URL]</a>
 Discover LineaLight's other Configurators by visiting the new<a title="Configurators" href="[CONFIGURATORS_URL]">Configurators </a>section of the site.
Goodbye and thank you
Linea Light S.r.l. Italy Via Della Fornace 59 31023 Castelminio di Resana TV Italy Phone: +39 0423 7868 info@linealight.com
 [THANKS_MESSAGE]

This message was sent through an automated system. Please do not respond to this email directly.

New products and latest trends from lighting.

Subscribe to our newsletter

Fill out the form with the details of your request to receive support from the Customer Care team as soon as possible.

Contact Us

Do you want to discover the news of the Linea Light Group world?

Configure the D-Wave with your preferred sources and download the photometric files related to them.
Within the new D-Wave, you will have the possibility to insert different types of LED strips.

In this section, you will be able to configure your Downlight Evo and download the photometric file with accessory included! Attention, you will find the photometric files of downlights without accessory in the code section

Application

The Client declares to have read and approve the content of the “Warranty declaration” and of this web page.

IP	IP40
Optic	Diffused
Degrees	122.4°
CCT	2700 K
CRI	90
Delivered lumens	10736 lm
Finishes	White
Installation position	Ceiling
Control
Efficiency	108.4 lm/W
Source Type	topLED

Skylum_R

C00734WHMDI
