Snake_W3

7235

Indoor / Wall Mounted Lights

Wall Lights | 220-240 V

1 topLED 1.5 W DC - 2 W AC

IP
IP40
Optic
Diffused
Degrees
102°
CCT
3000 K
CRI
90
Delivered lumens
117 lm
Finishes
Black
Installation position
Wall lights
Control
Efficiency
58.5 lm/W
Source Type
topLED

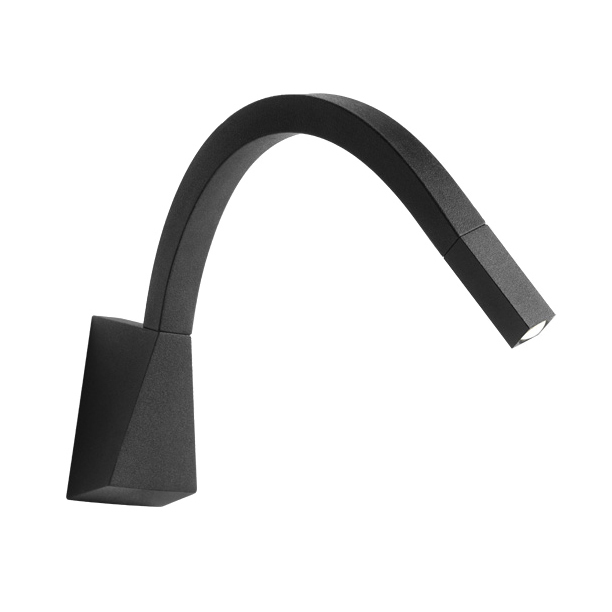

Single emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 178 lm, with a 118.7 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a black finish, processed by means of coating; the diffuser is made of PC with a satin finishing treatment; the mounting frame is made of iron, with a black finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.450 kg.

The total absorbed power is 2 W.

The device features protection class I and can be wall lights-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
