Squash_S
7626
Indoor / Ceiling Lights, Wall Mounted Lights
Wall Lights - Ceiling Downlights | 220-240 V
88 topLED 19 W DC - 19 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 113° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1954 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 102.8 lm/W |
| Source Type | topLED |

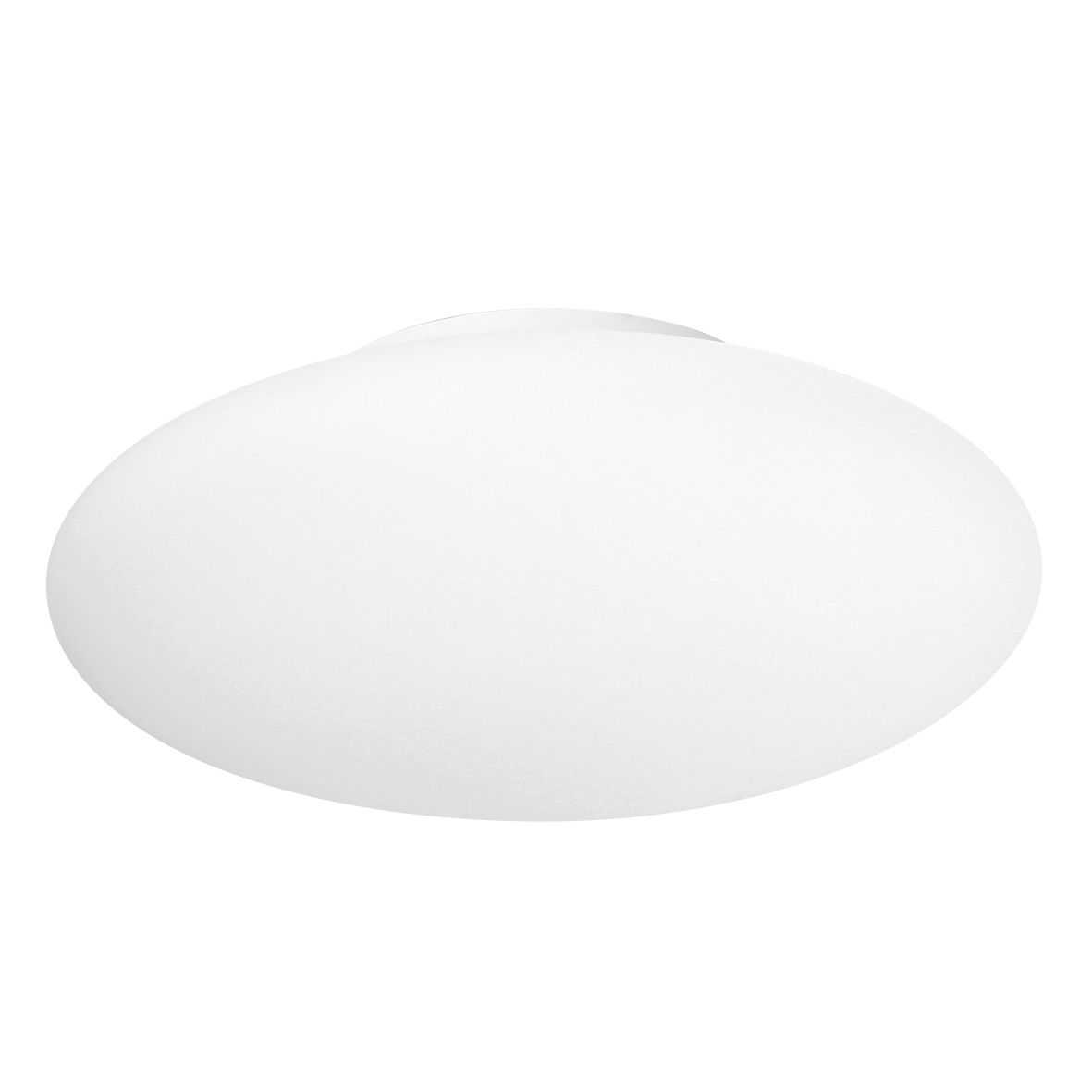

Technical description
Double emission wall lights, wall lights or ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 88 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2364 lm, with a 124.4 lm/W nominal luminous efficacy.
The diffuser is made of pe; the mounting frame is made of iron, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 2.665 kg.
The total absorbed power is 19 W.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
