Straight_W
8266
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
2 topLED 15 W DC - 19 W AC
| IP | IP44 |
|---|---|
| Optic | Diffused |
| Degrees | 148.2° |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | 756 lm |
| Finishes | Chrome |
| Installation position | Wall lights |
| Control | |
| Efficiency | 39.8 lm/W |
| Source Type | topLED |
Technical description

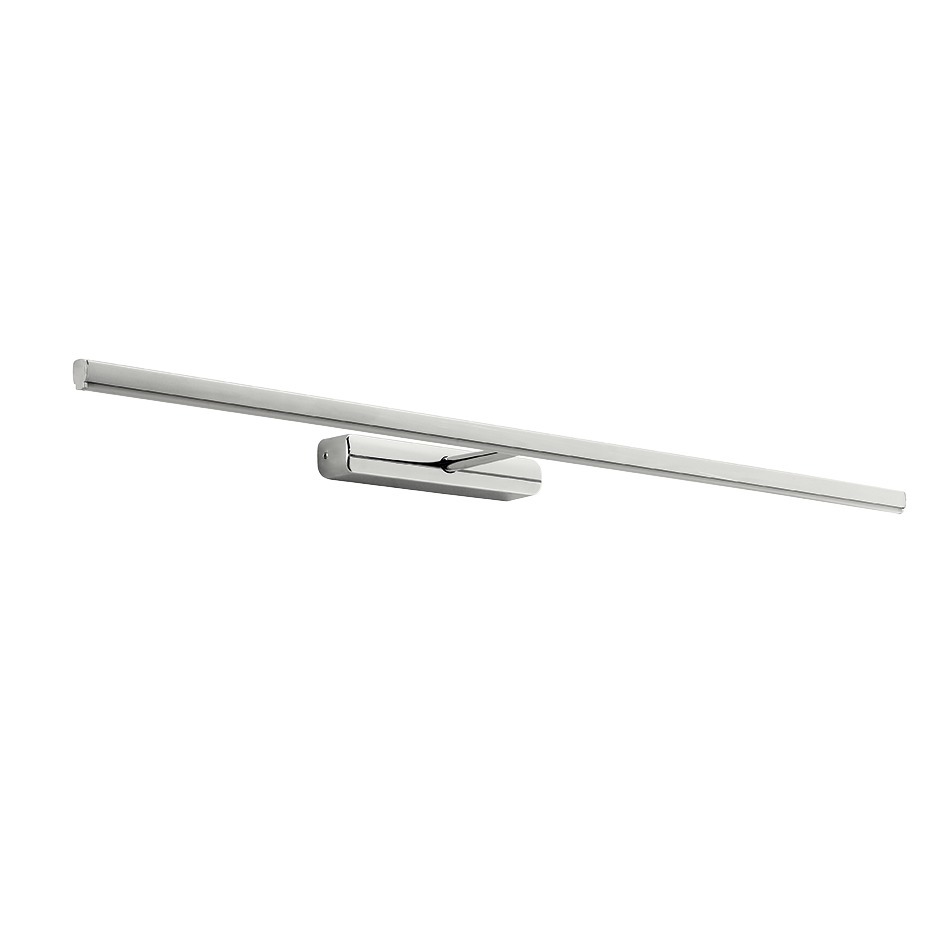

Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 80 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 1957 lm, with a 130.5 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a chrome finish, processed by means of electroplating; the diffuser is made of PC; the mounting frame is made of abs plastic, with a chrome finish. The ingress protection degree is IP44; the total weight is of 0.330 kg.
The total absorbed power is 19 W.
The device features protection class II and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
