Suelo_R

C00083BMNUS

New

Outdoor / Uplights

Uplights | 180-264 V AC /230-280 V DC

1 x powerLED 2 W DC - 2.5 W AC

IP
IP68
IK
09
Optic
Ultra Spot
Degrees
4.4°
CCT
4000 K
CRI
80
Delivered lumens
183 lm
Finishes
Brass
Installation position
Floor
Control
Efficiency
83.2 lm/W
Source Type
powerLED

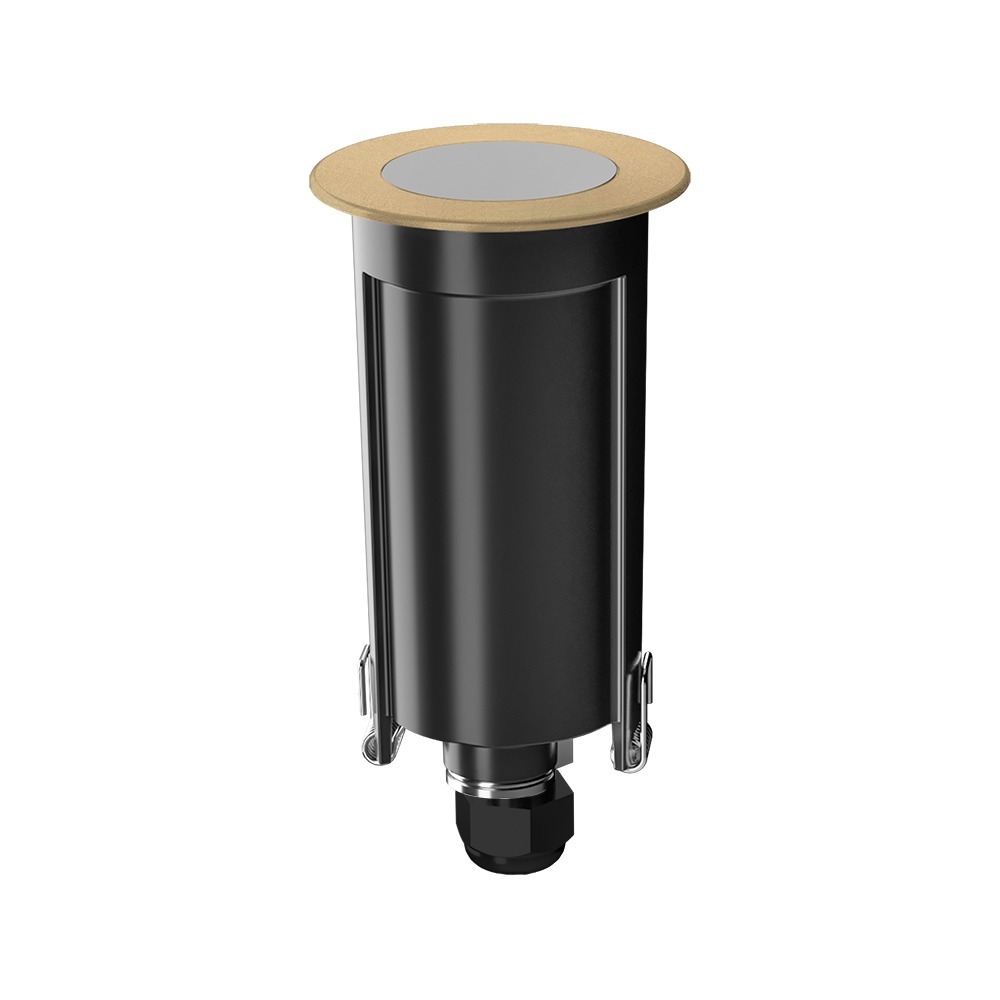

Single emission uplights for outdoor application. The natural white LED light source with a ultra spot light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 198 lm, with a 99.0 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating. The ingress protection degree is IP68; the total weight is of 0.420 kg.

The total absorbed power is 2.5 W. The power supply cable is included and features a 1 m length.

The device features protection class I and can be floor-mounted with an outer casing, code 84935(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

TM66

Accessories
