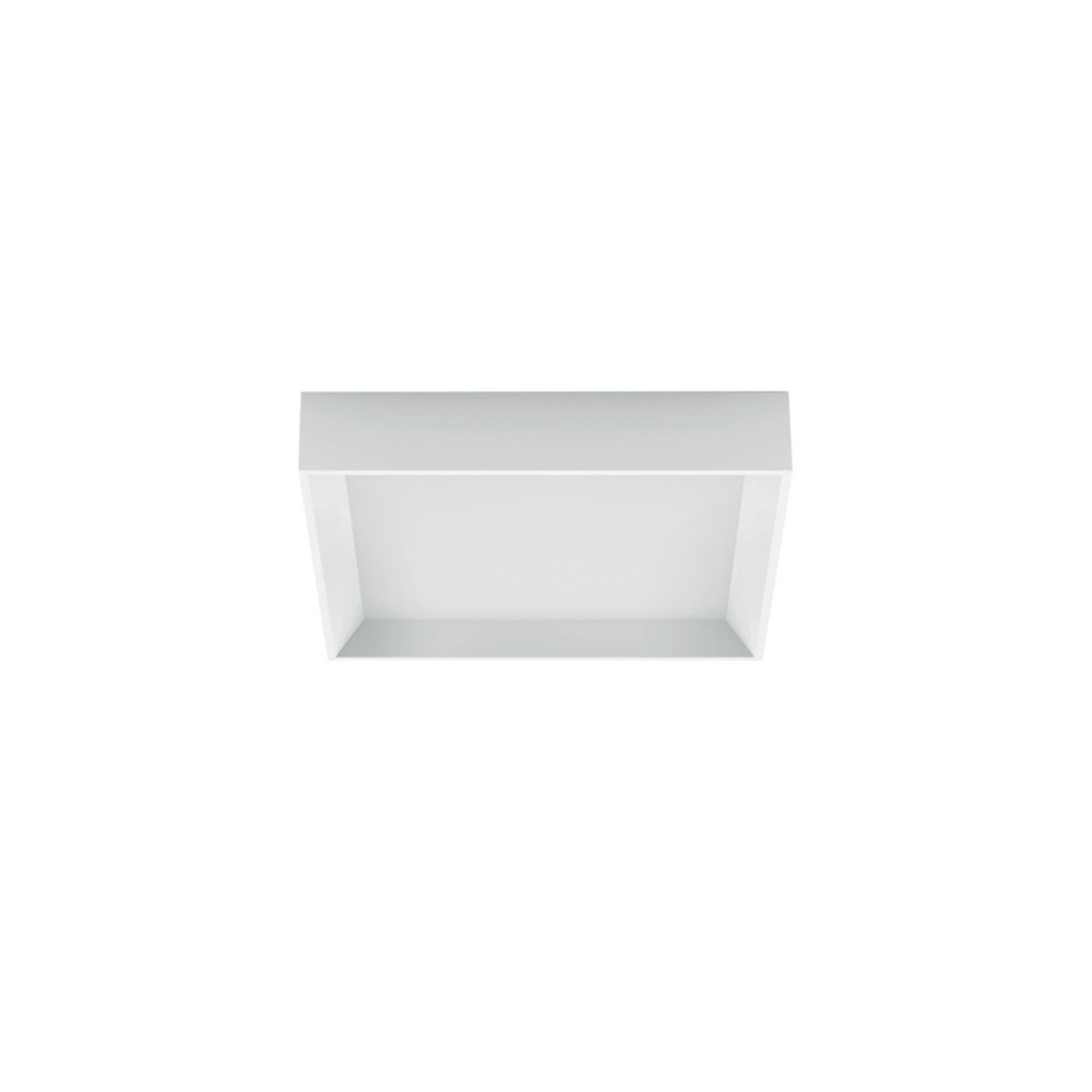

Tara_UPS
CA027KWHWDI
Indoor / Ceiling Lights
Ceiling Downlights | 220-240 V
1 topLED 18 W DC - 19 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 115.2° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1360 lm |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | PHASE-CUT |
| Efficiency | 71.6 lm/W |
| Source Type | topLED |
Technical description
Single emission ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2336 lm, with a 129.8 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 2.600 kg.
The total absorbed power is 19 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
