Tour_Cell_P
C00439WHNML
Indoor / Pendant Lights
Pendant Luminaires
24 x powerLEDs 46 W DC 600 mA
| IP | IP40 |
|---|---|
| Optic | Wide Flood |
| Degrees | 64.6° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 4014 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 87.3 lm/W |
| Source Type | powerLED |
Technical description

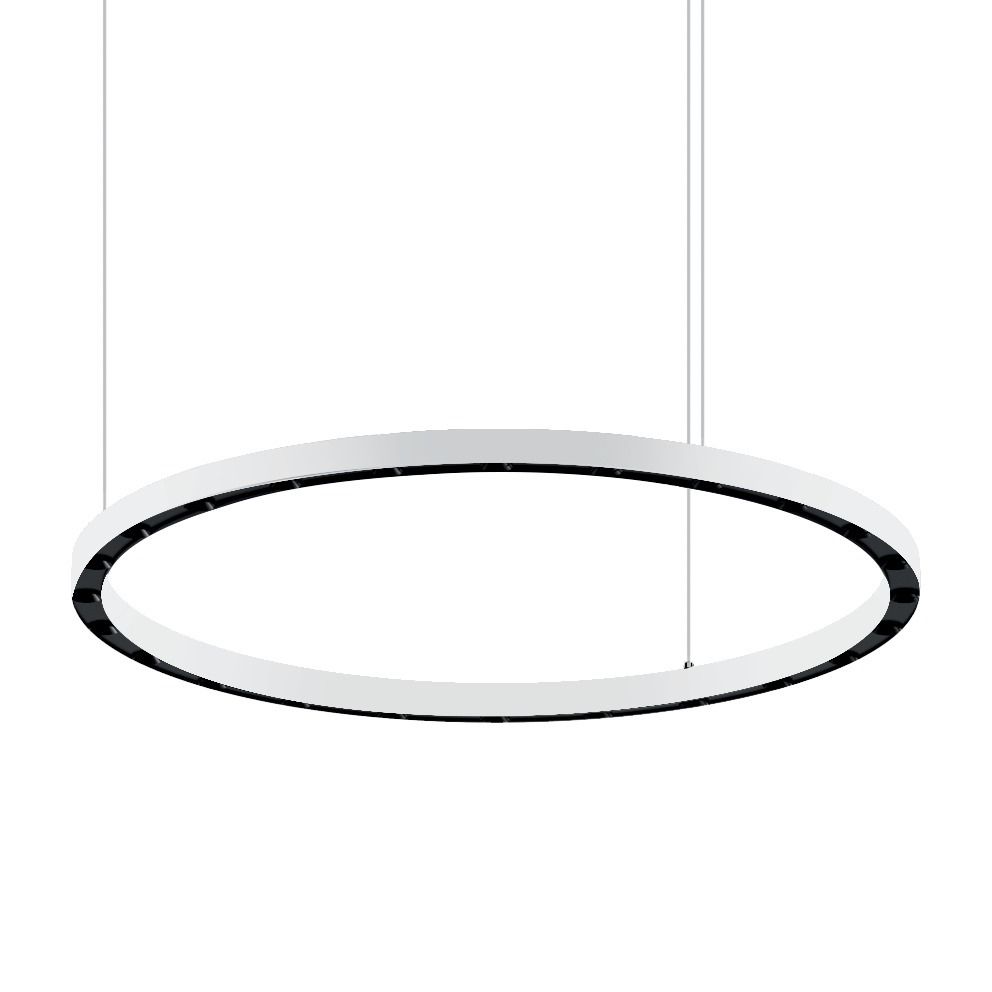

Single emission pendant luminaires for indoor application. The natural white LED light source with a wide flood light distribution is composed of 24 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 5688 lm, with a 123.7 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 5.2 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 46 W. The power supply cable is included and features a 4.85 m length.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 83120
Multipower PRO - DALI2 0/1-10V PUSH Multi Current - 38 W DC powerLEDs - 600mA 60 V / 46 W DC powerLEDs - 600mA 72V | 1-10V Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
Code 83122
VoltEdge - On/Off Driver - 600mA 60V 38W / 600mA 72V 46W | Multi Power 198~264V AC / 170~280V DC
| Family | Multi Power |
|---|---|
| IP | IP20 |
| Operation | CC |
