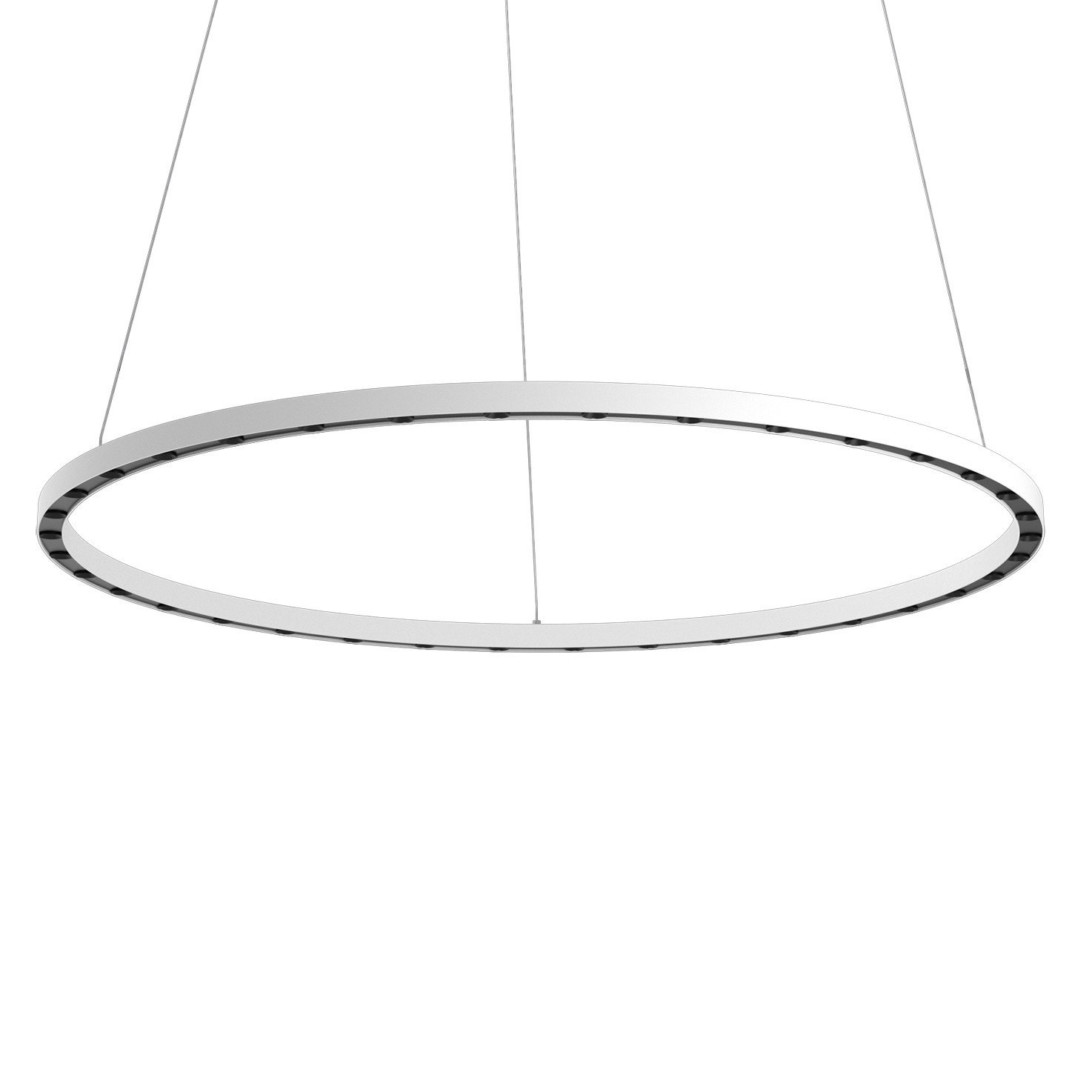

Tour_Cell_P
C00442WHNML
Indoor / Pendant Lights
Pendant Luminaires
36 x powerLEDs 68 W DC 550 mA
| IP | IP40 |
|---|---|
| Optic | Wide Flood |
| Degrees | 64.6° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 6024 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 88.6 lm/W |
| Source Type | powerLED |
Technical description
Single emission pendant luminaires for indoor application. The natural white LED light source with a wide flood light distribution is composed of 36 powerled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 8532 lm, with a 125.5 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 68 W. The power supply cable is included and features a 4.85 m length.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 83143
Multipower PRO - 0/1-10V PUSH Multi Current - 68 W DC powerLEDs - 550mA 108V | 1-10V Push and Simply Dim Multi Power 99~264V AC / 170~280V DC
| Family | Multi Power |
|---|---|
| IP | IP20 |
| Operation | CC |
Code 83121
Omnidali - DALI2 Multi Current | Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation | CC |
You've seen 2 products out of 2
Downloads
Documentation
Photometric data
2D/3D Drawings
TM66
Accessories
