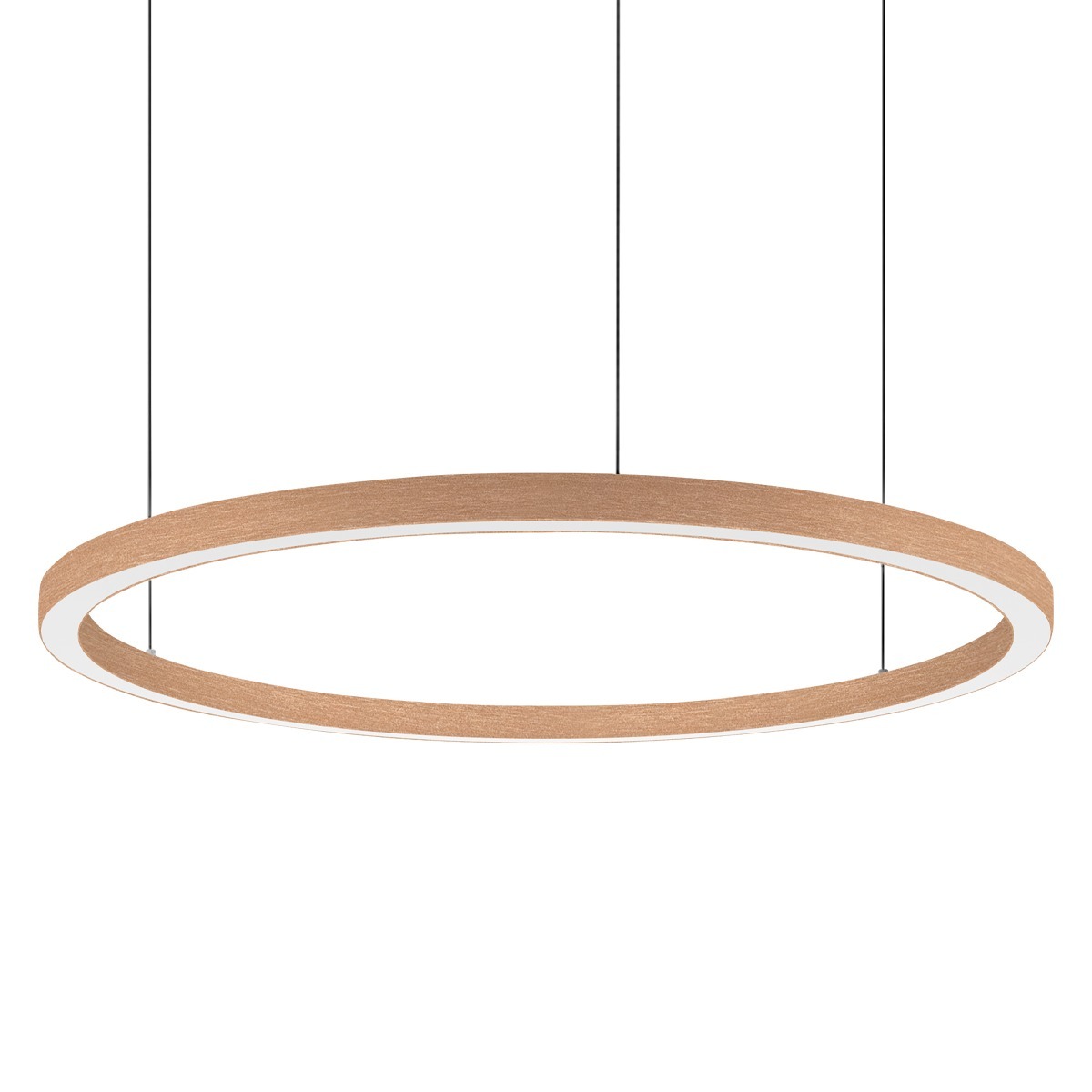

Tour_PD
C00415HCMDI
Indoor / Pendant Lights
Pendant Luminaires
384 topLED 70 W DC 24 V
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 155.6° |
| CCT | 2700 K |
| CRI | 90 |
| Delivered lumens | 4231 lm |
| Finishes | Brushed copper |
| Installation position | Ceiling |
| Control | |
| Efficiency | 60.4 lm/W |
| Source Type | topLED |
Technical description
Single emission pendant luminaires for indoor application. The super warm white LED light source with a diffused light distribution is composed of 384 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 8001 lm, with a 114.3 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a copper finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 70 W. The power supply cable is included and features a 4.85 m length.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99722
Stormshield - DALI Driver - 1-120 W DC stripLED - 5A 24V | DALI Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
