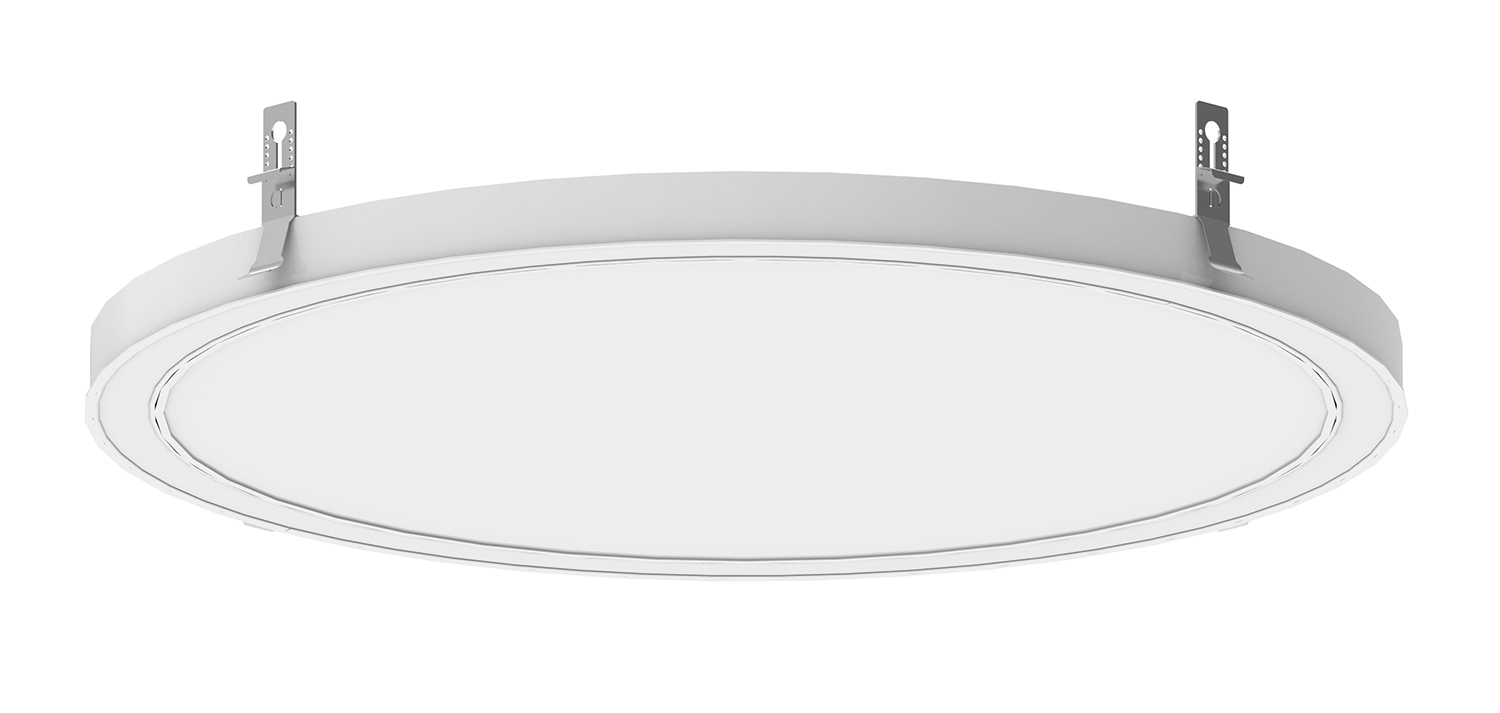

Single emission recessed downlights or recessed downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 192 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 4176 lm, with a 111.4 lm/W nominal luminous efficacy.The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 3.2 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 37.5 W.The device features protection class III and can be ceiling-mounted, with a 742 mm diameter hole (in plasterboard).Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Instruction sheet

Base IESNA C00221WHWDI

Base Eulumdat C00221WHWDI

TM66

Product dimensions

Product image

Specification text

Tour_R

ProductLeaf

Reson_75 - On/Off Driver - 3.13 A 24 V |   On/Off Driver 198~264V AC / 176~275V DC  75 W

Stormshield - DALI Driver - 1-120 W DC stripLED - 5A 24V |  DALI  Controller

Reson_150 | 0/1-10V Driver 24V 150W |  1-10V  Controller

DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W  |  Push and Simply Dim  Controller

DALI-2 PUSH Driver - 1-240 W DC stripLED - 10A 24V 240W  |  Push and Simply Dim  Controller

Tour

C00221WHWDI
