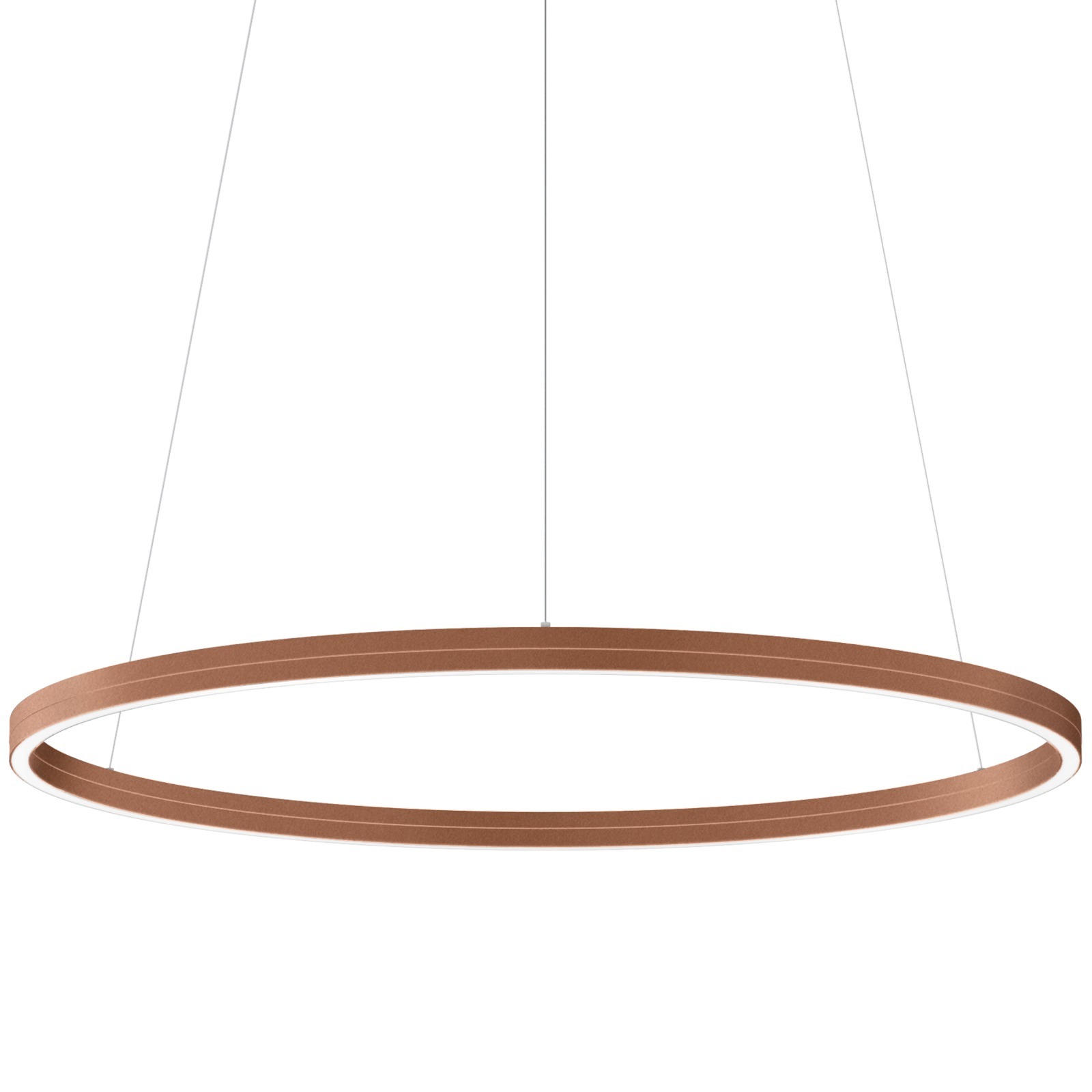

Double emission pendant luminaires for indoor application. The natural white LED light source with a double diffused light distribution is composed of 2590 stripled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 18052 lm, with a 143.3 lm/W nominal luminous efficacy.The device body is made of aluminium 6060 and features a copper finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7.4 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 126 W. The power supply cable is included and features a 4.85 m length.The device features protection class III and can be ceiling-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

Base IESNA C00667HCNDD

Base Eulumdat C00667HCNDD

Instruction sheet

2d_Dwg

2d_Dxf

TM66

Product dimensions

Product image

Specification text

Tour_Slim_D

ProductLeaf

Tour PD - PI - PU - D fixing kit (3 pcs) - Brushed copper

Suspensions

3-point rose - Tour - On/off - 75W + 75W - Copper

Ceiling rose

3-point rose - Tour - DALI / Push Dimm 75+75W - Copper

Stormshield - DALI Driver - 1-120 W DC stripLED - 5A 24V |  DALI  Controller

Reson_150 | 0/1-10V Driver 24V 150W |  1-10V  Controller

Reson_150 - On/Off Driver 24V 150W 24V |   On/Off Driver 198~264V AC / 176~275V DC  150 W

DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W  |  Push and Simply Dim  Controller

Tour_Slim

C00667HCNDD
