Tour_Slim_PD Complete
C01055HCNDI
Indoor / Pendant Lights
Pendant Luminaires | 198-264 V
1 topLED 29 W DC - 36 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 111.8° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 1748 lm |
| Finishes | Brushed copper |
| Installation position | Ceiling |
| Control | |
| Efficiency | 43.7 lm/W |
| Source Type | topLED |
Technical description

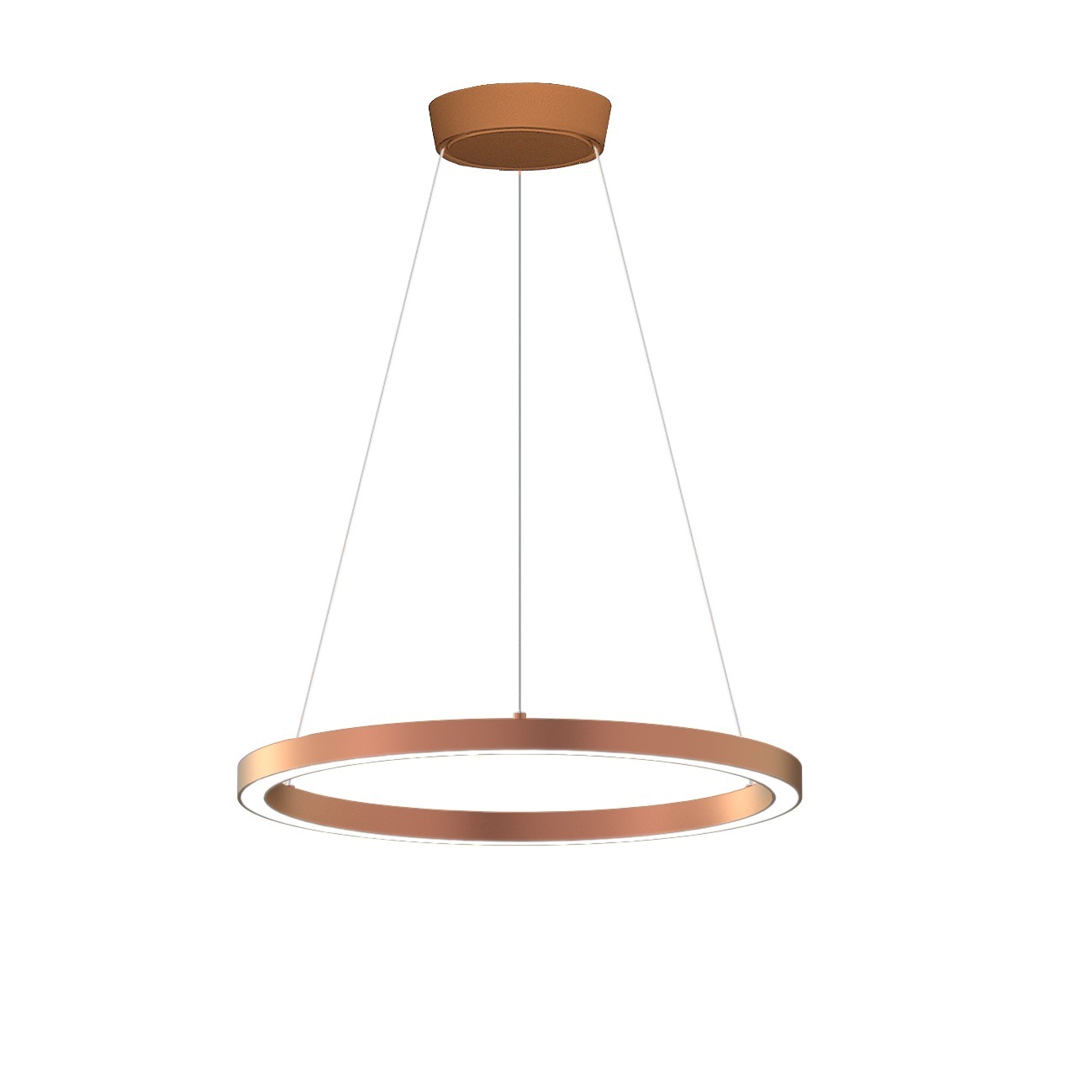

Single emission pendant luminaires for indoor application. The natural white LED light source with a diffused light distribution is composed of 816 stripled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 3854 lm, with a 116.8 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a copper finish; the diffuser is made of silicone. The ingress protection degree is IP40; the total weight is of 2.3 kg.
The total absorbed power is 40 W. The power supply cable is included and features a 4.85 m length.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
