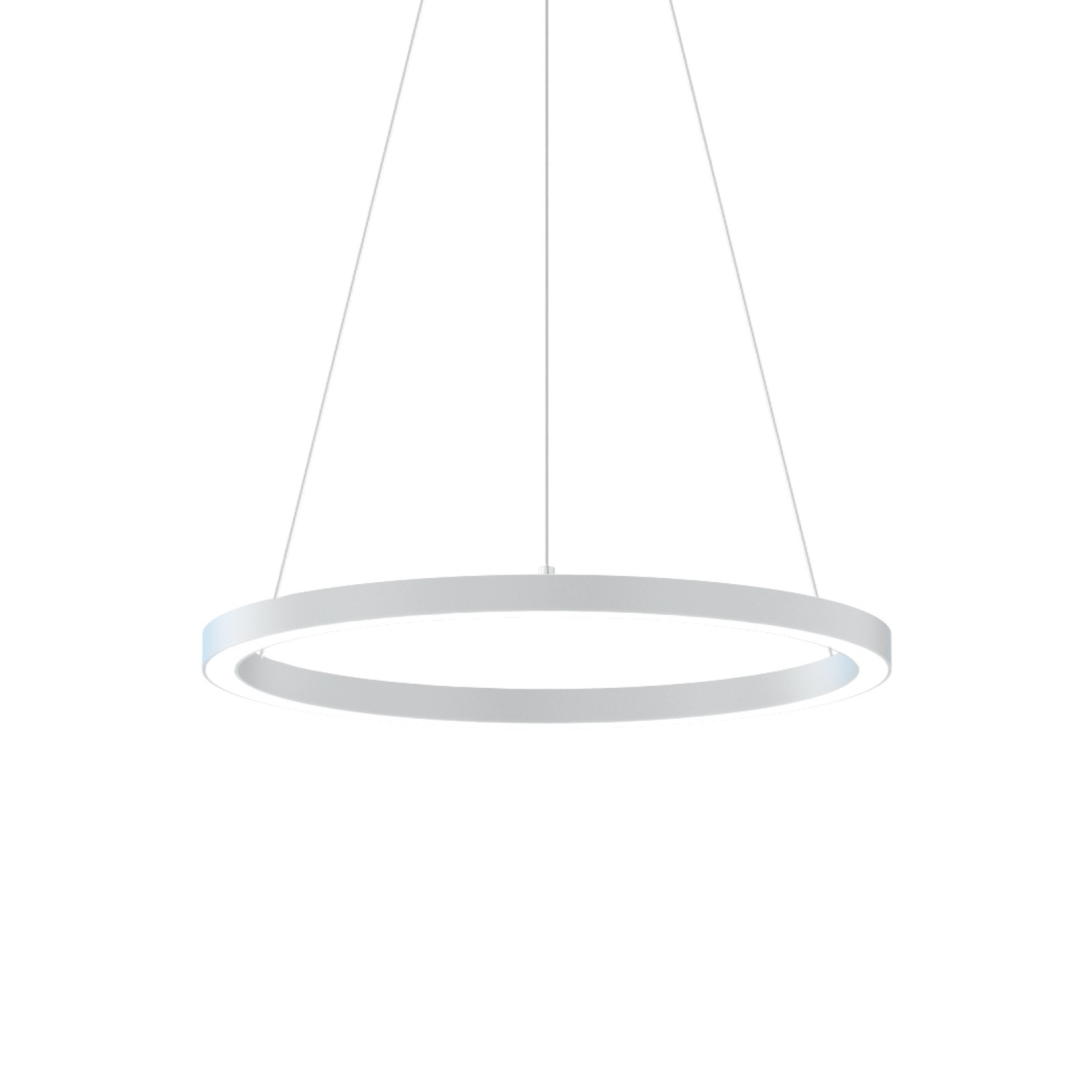

Tour_Slim_PD
C01059WHNDI
Indoor / Pendant Lights
Pendant Luminaires
1 topLED 29 W DC 24 V
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 111.8° |
| CCT | 4000 K |
| CRI | 90 |
| Delivered lumens | 2075 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 62.9 lm/W |
| Source Type | topLED |
Technical description
Single emission pendant luminaires for indoor application. The natural white LED light source with a diffused light distribution is composed of 1008 stripled LEDs with CCT of 4000 K and a CRI 90.
The device body is made of aluminium 6060 and features a white finish, processed by means of powder coating; the diffuser is made of silicone. The ingress protection degree is IP40; the total weight is of 1.4 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 33 W. The power supply cable is included and features a 4.85 m length.
The device features protection class III and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99722
Stormshield - DALI Driver - 1-120 W DC stripLED - 5A 24V | DALI Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
You've seen 4 products out of 5
Downloads
Documentation
Photometric data
2D/3D Drawings
TM66
Accessories
