Trix-C30
8426
Indoor / Catenary and Systems
Systems | 220-240 V
72 topLED 18 W DC - 21 W AC










IP | IP20 |
---|---|
Optic | Diffused |
Degrees | 136° |
CCT | 3000 K |
CRI | 80 |
Delivered lumens | 1608 lm |
Finishes | Grey |
Installation position | Wall lights |
Control | |
Efficiency | 76.6 lm/W |
Source Type | topLED |

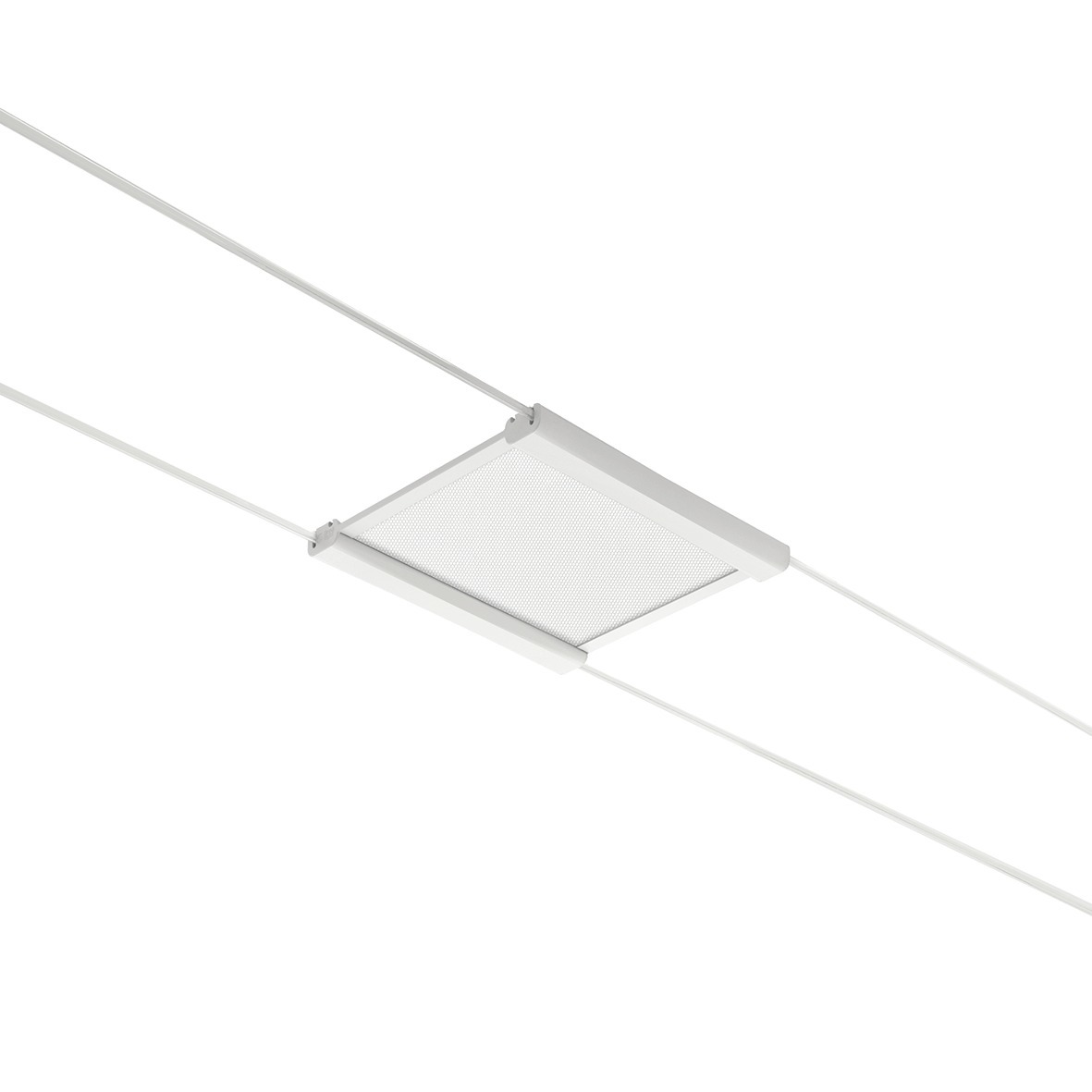

Technical description
Double emission systems for indoor application. The warm white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2370 lm, with a 131.7 lm/W nominal luminous efficacy.
The device body is made of PC and features a grey finish, processed by means of coating; the diffuser is made of pmma with a silk-screening treatment. The ingress protection degree is IP20; the total weight is of 1.000 kg.
The total absorbed power is 21 W.
The device features protection class II and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
