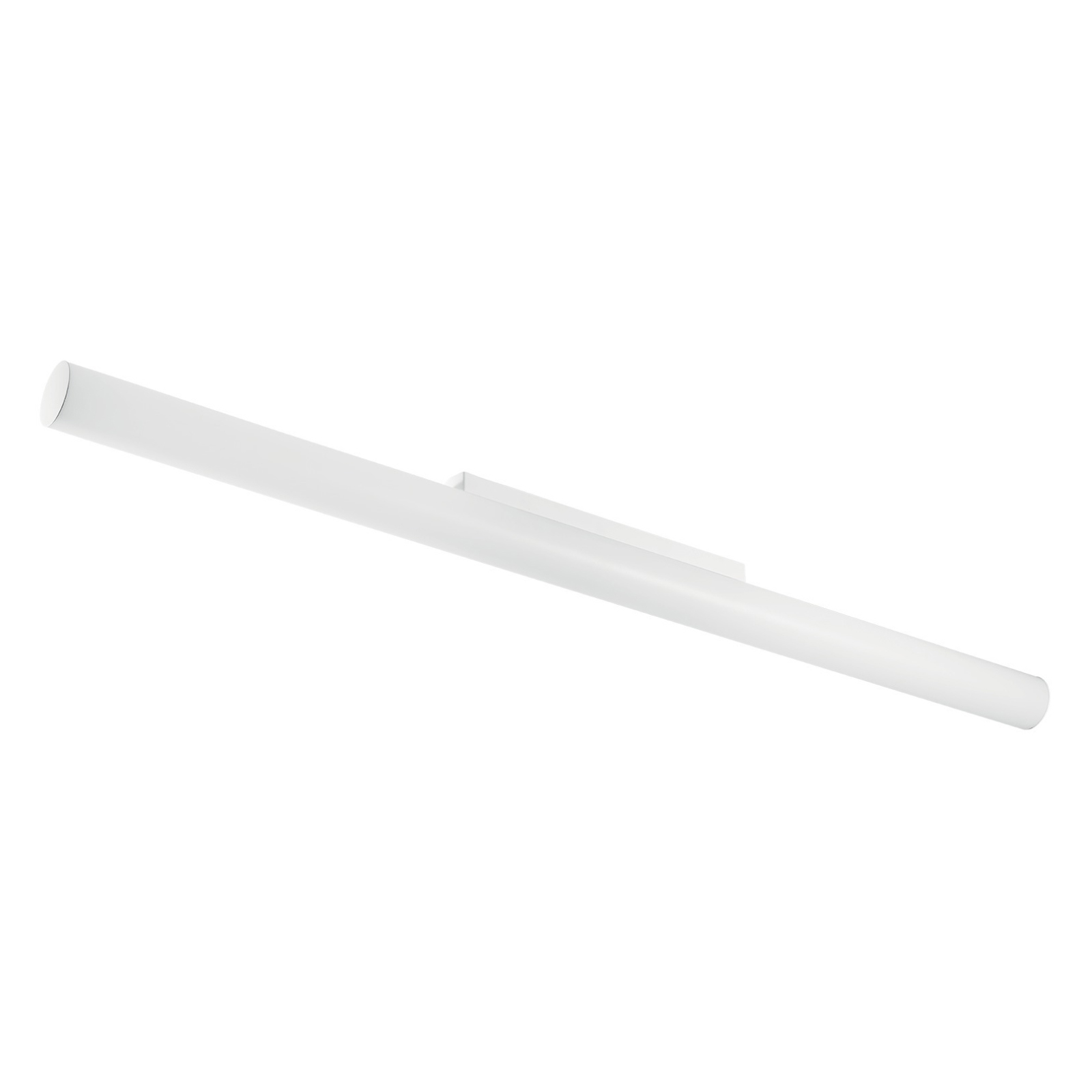

Tu-Top
8851
Indoor / Ceiling Lights, Wall Mounted Lights
Wall Lights - Ceiling Downlights | 220-240 V
11 topLED 41 W DC - 48 W AC









IP | IP40 |
---|---|
Optic | Diffused |
CCT | 3000 K |
CRI | 80 |
Delivered lumens | 5370 lm |
Finishes | White |
Installation position | Wall lights, Ceiling |
Control | DALI |
Efficiency | 111.9 lm/W |
Source Type | topLED |
Technical description
Double emission wall lights or ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 176 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 6234 lm, with a 152.0 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of pmma; the mounting frame is made of iron, with a white finish, processed by means of coating. The ingress protection degree is IP40;
The total absorbed power is 48 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
