C00564AMW3F

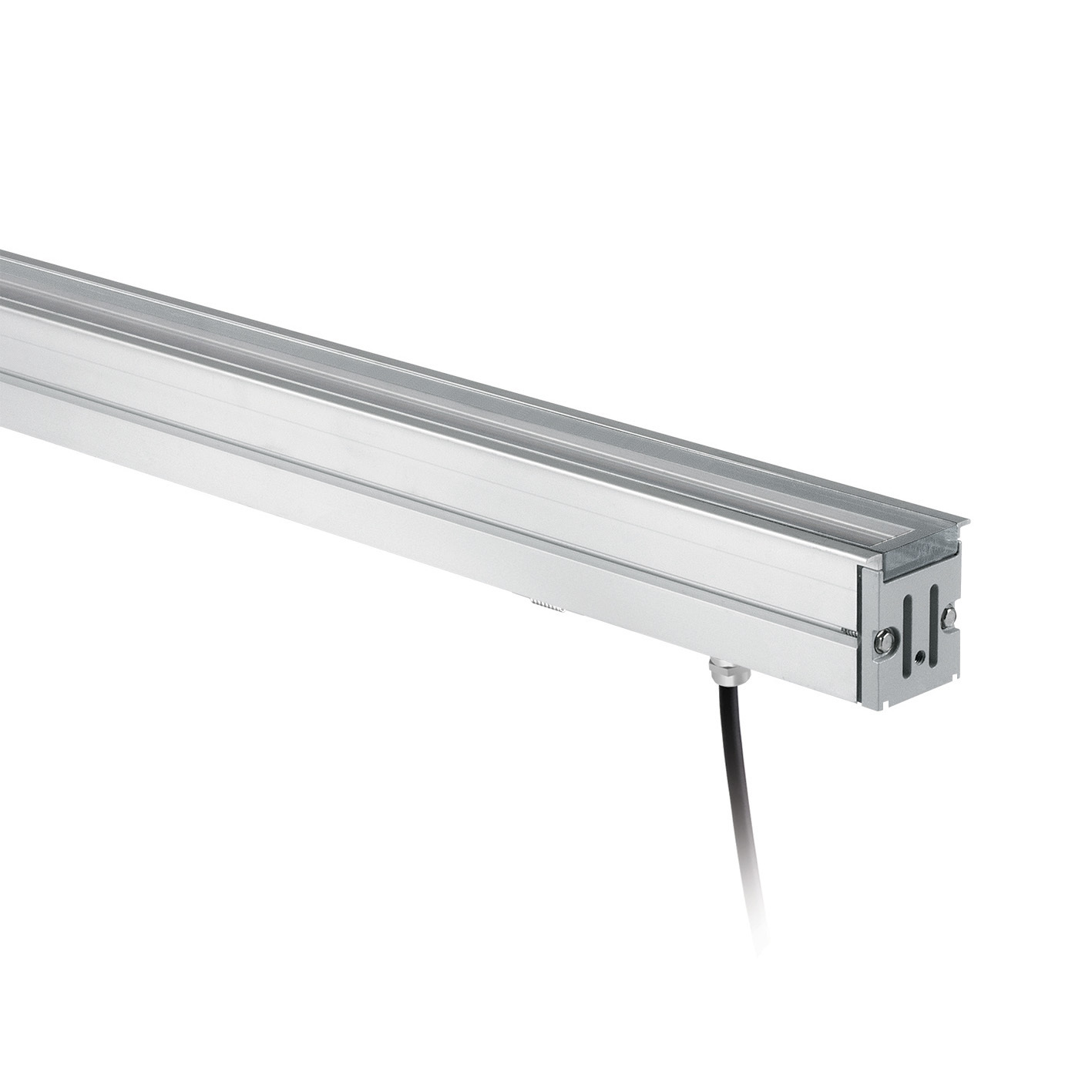

Single emission lines for outdoor application. The warm white LED light source with a elliptic flood (20°÷29°) x >60° light distribution is composed of 192 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 3884 lm, with a 176.5 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.98 kg.

The total absorbed power is 24.6 W. The power supply cable is included and features a 0.25 m length.

The device features protection class II and can be floor-mounted with an outer casing, code 99915(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.
