Xenia_AF PRO

C00650AMQWW

New

Outdoor / Linear Lighting

Lines | 85-277 V

36 topLED 12 W DC - 13 W AC

IP
IP68
IK
08
Optic
Asymmetric Wallwasher
CCT
RGB-W 4000 K
Delivered lumens
--
Installation position
Floor
Control
DMX-RDM
Source Type
topLED

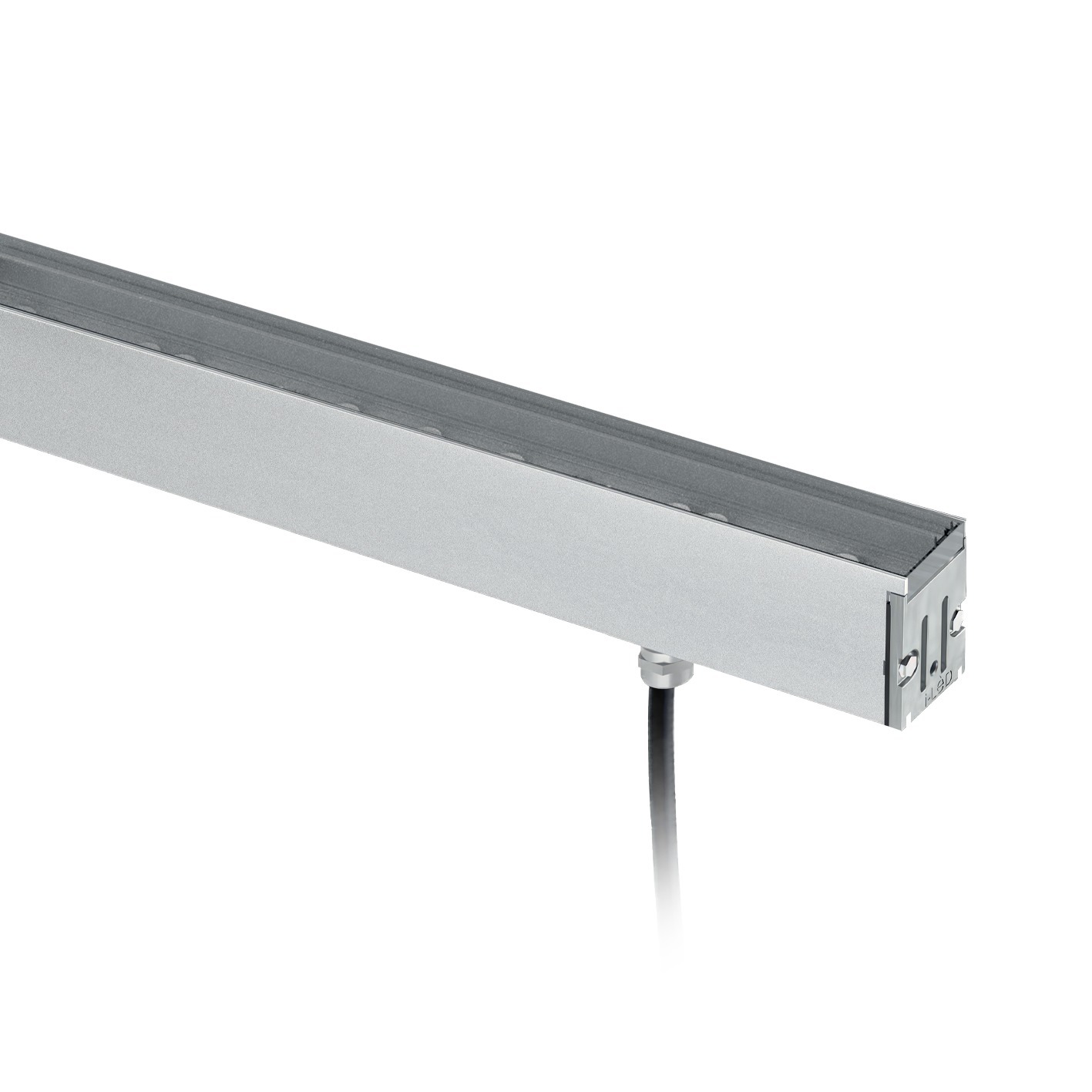

Single emission lines for outdoor application. The RGBW - 4000 K LED light source with a asymmetric wallwasher light distribution is composed of 36 topled LEDs with CCT of RGB-W 4000 K.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.67 kg.

The total absorbed power is 12 W. The power supply cable is included and features a 0.25 m length.

The device features protection class II and can be floor-mounted with an outer casing, code 99918(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

2D/3D Drawings

TM66

Accessories
