Xenia_ALF
C00620AMMDI
Outdoor / Linear Lighting
Lines
96 topLED 3 W DC 24 V
| IP | IP68 |
|---|---|
| IK | 08 |
| Optic | Diffused |
| Degrees | 107.4° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 131 lm |
| Installation position | Floor |
| Control | |
| Efficiency | 43.7 lm/W |
| Source Type | topLED |
Technical description

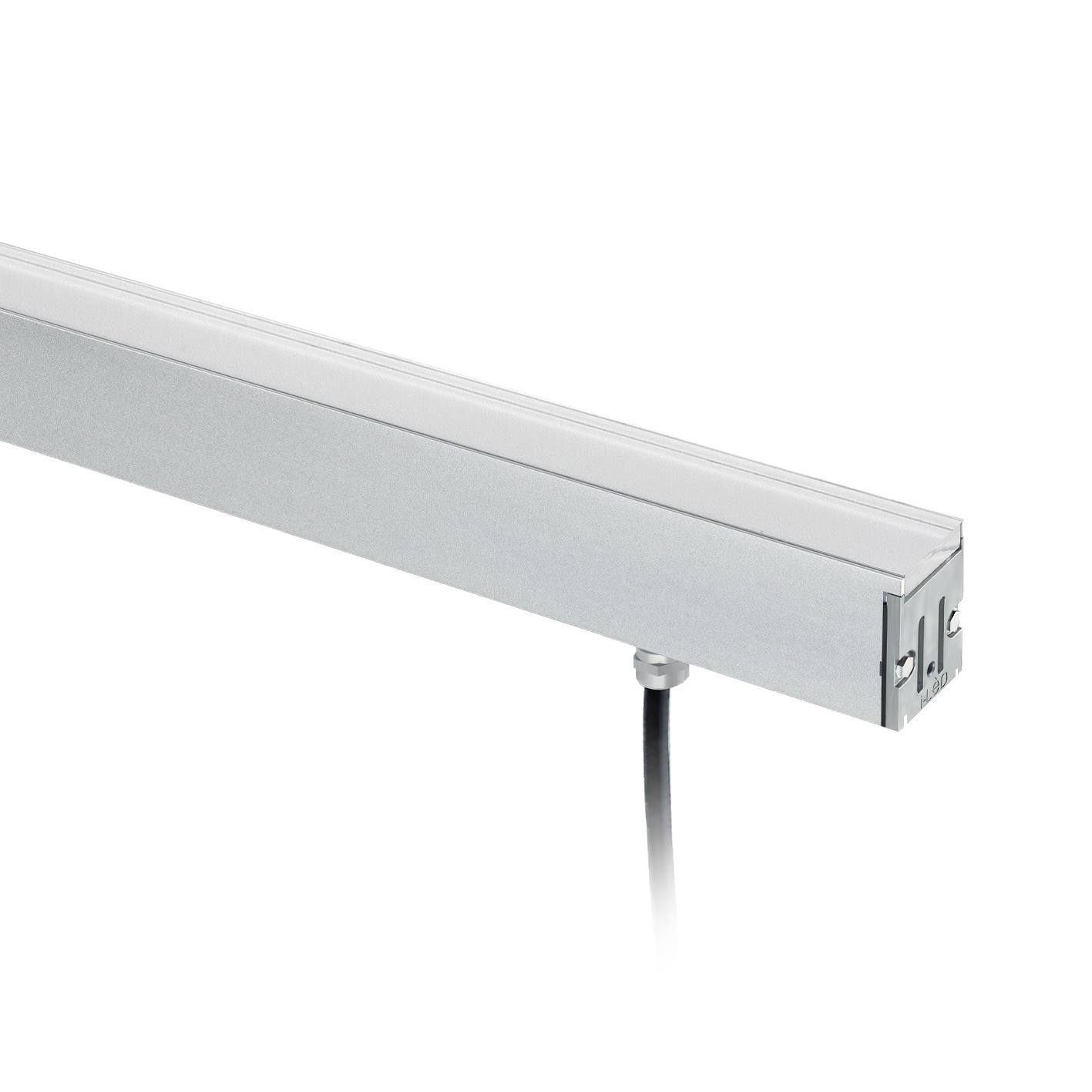

Single emission lines for outdoor application. The super warm white LED light source with a diffused light distribution is composed of 96 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 478 lm, with a 159.3 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of glass - tempered with a anti-slip painting treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 3 W. The power supply cable is included and features a 0.25 m length.
The device features protection class III and can be floor-mounted with an outer casing, code 99913(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
