Xenia_W
C00517AMAWW
Outdoor / Wall lighting, Linear Lighting
Wall Lights - Lines
56 topLED 6.4 W DC 24 V
| IP | IP66 |
|---|---|
| IK | 07 |
| Optic | Asymmetric Wallwasher |
| Degrees | 86.8° |
| CCT | 2200 K |
| CRI | 80 |
| Delivered lumens | 787 lm |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Efficiency | 123.0 lm/W |
| Source Type | topLED |
Technical description

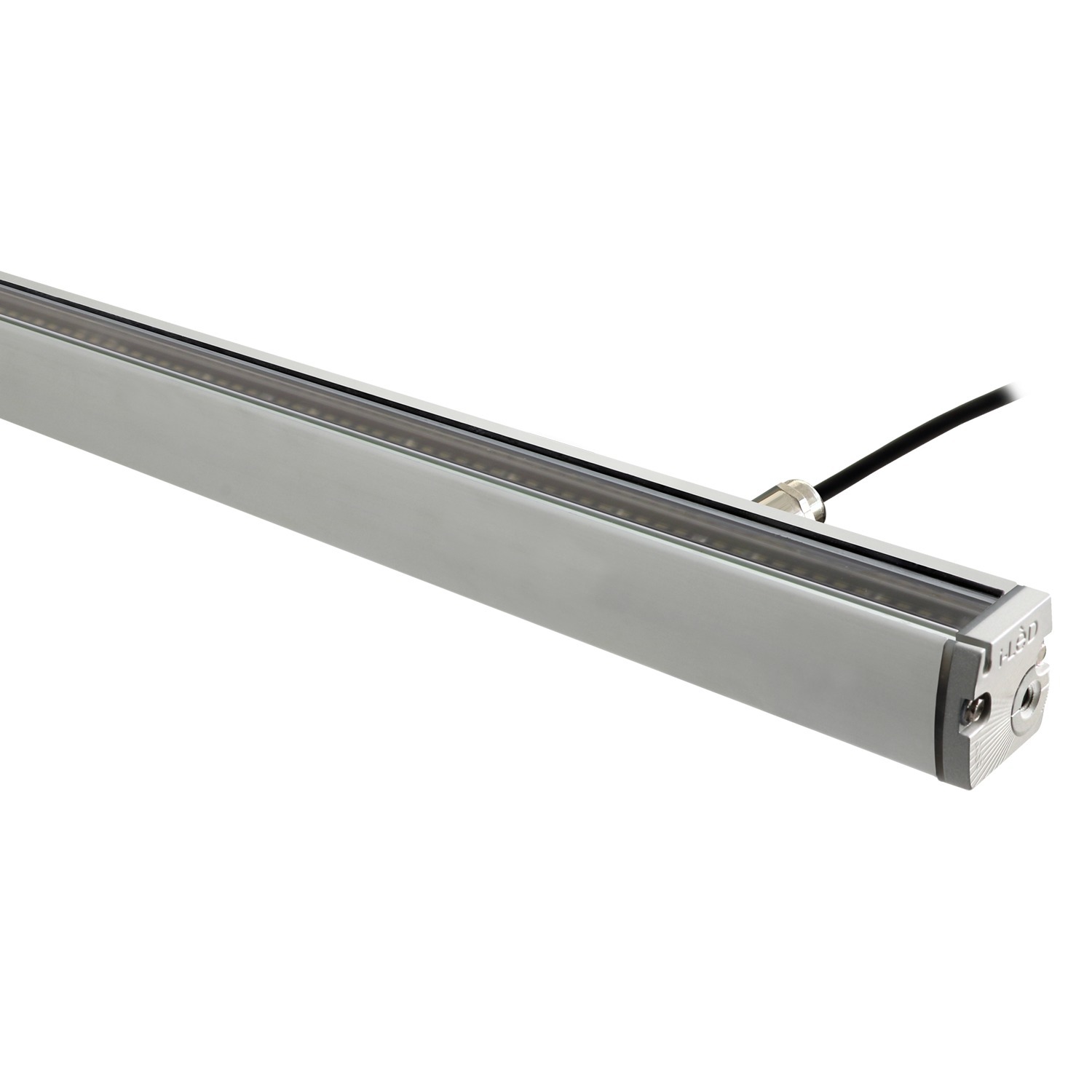

Single emission wall lights or lines for outdoor application. The ancient white LED light source with a asymmetric wallwasher light distribution is composed of 56 topled LEDs with CCT of 2200 K and a CRI 80; the source luminous flux is 930 lm, with a 145.3 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 0.45 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 6.4 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
