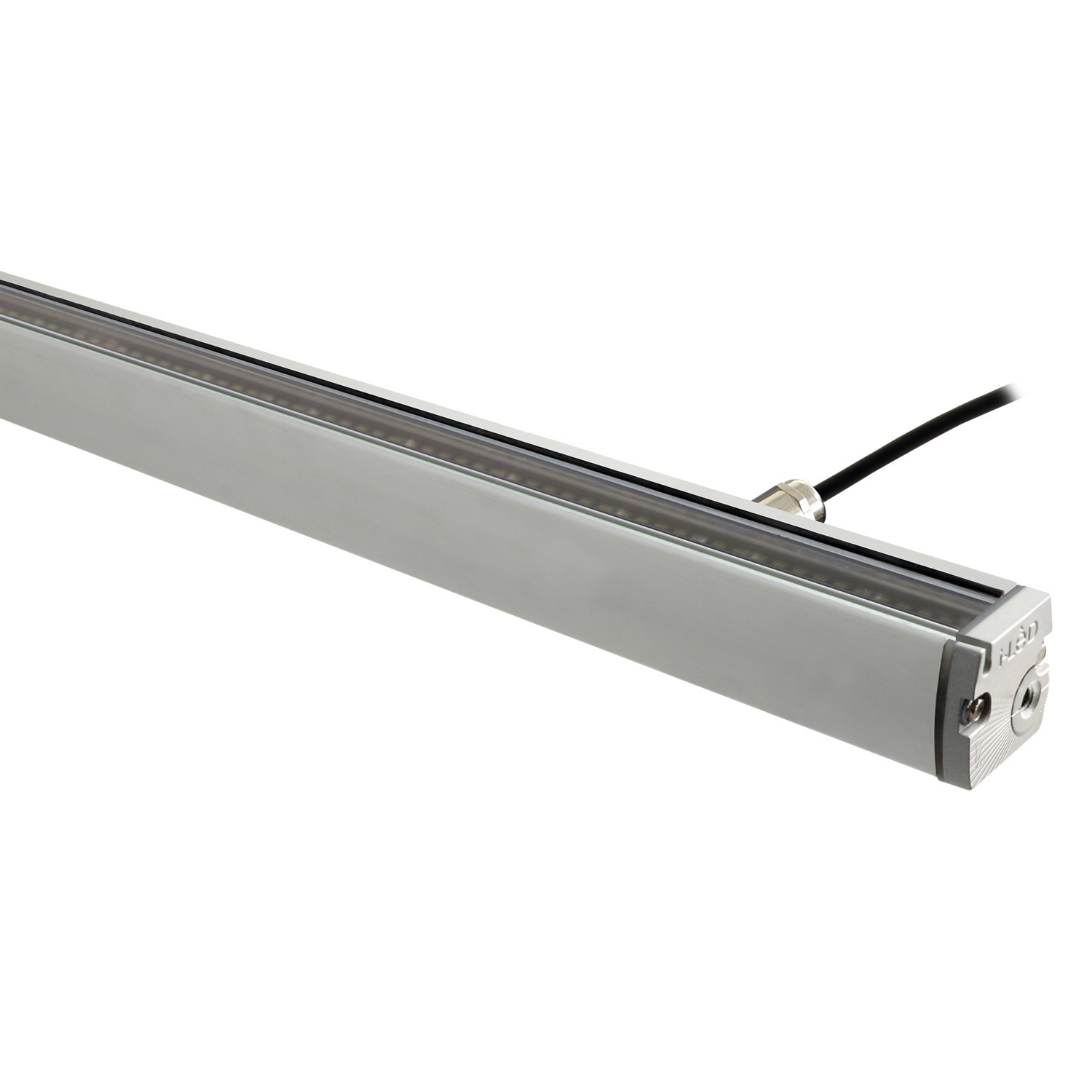

Xenia_W
C00519AMM3F
Outdoor / Wall lighting, Linear Lighting
Wall Lights - Lines
144 topLED 16.5 W DC 24 V
| IP | IP66 |
|---|---|
| IK | 07 |
| Optic | Elliptic Flood (20°÷29°) X >60° |
| Degrees | 91° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 2328 lm |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Efficiency | 141.1 lm/W |
| Source Type | topLED |
Technical description
Single emission wall lights or lines for outdoor application. The super warm white LED light source with a elliptic flood (20°÷29°) x >60° light distribution is composed of 144 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2790 lm, with a 169.1 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 1 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 16.5 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24V 150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 - On/Off Driver 24V 150W 24V | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
DALI-2 PUSH Driver - 1-150 W DC stripLED - 6.3A 24V 150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation | CV |
