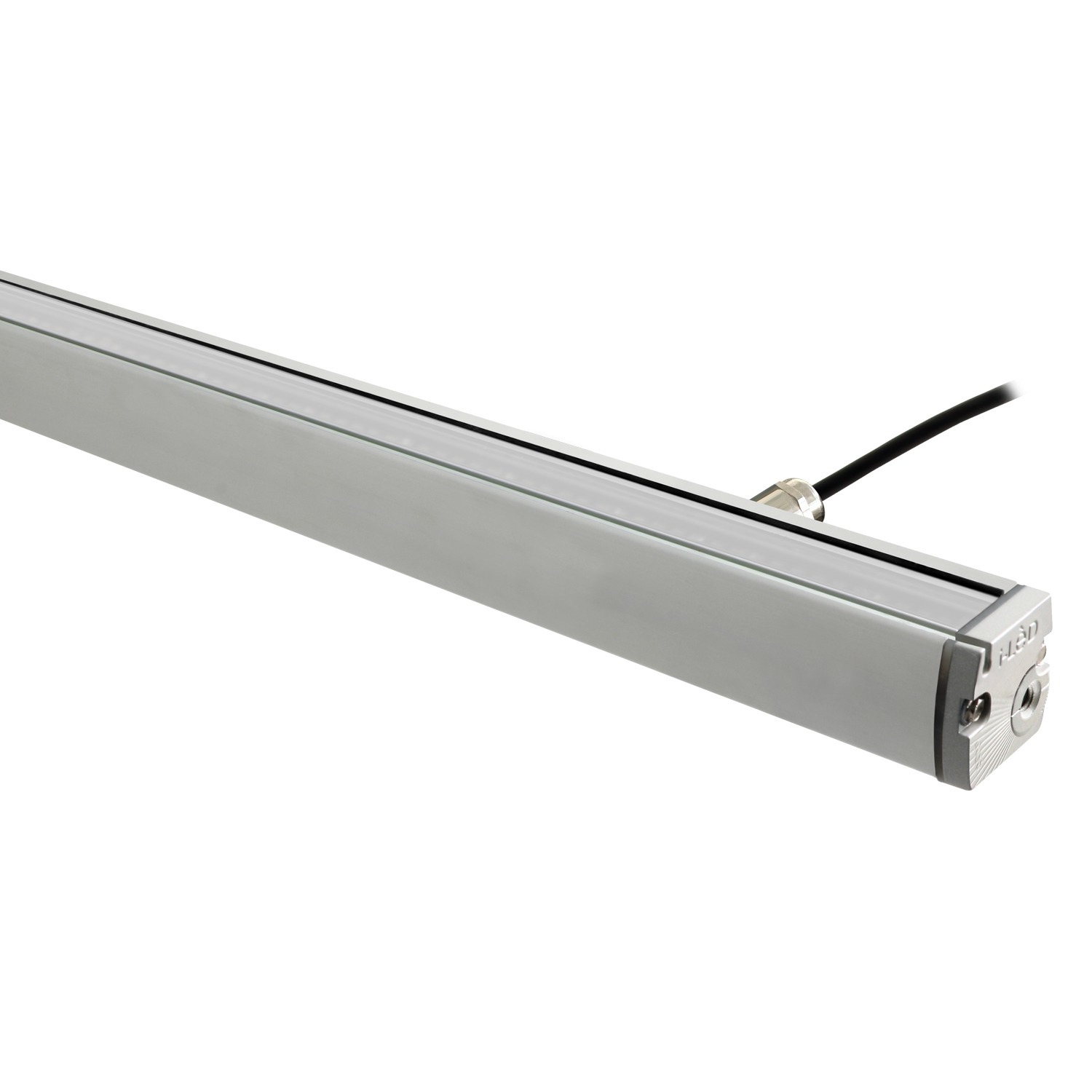

Xenia_W
C00528AMV3F
Outdoor / Wall lighting, Linear Lighting
Wall Lights - Lines | 85-277 V
72 topLED 22 W DC - 24 W AC















IP | IP66 |
---|---|
IK | 07 |
Optic | Elliptic Flood (20°÷29°) X >60° |
CCT | RGB-W 3000 K |
Delivered lumens | -- |
Installation position | Wall lights, Ceiling, Floor |
Control | DMX-RDM |
Source Type | topLED |
Technical description
Single emission wall lights or lines for outdoor application. The RGBW - 3000 K LED light source with a elliptic flood (20°÷29°) x >60° light distribution is composed of 72 topled LEDs with CCT of RGB-W 3000 K.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 1.3 kg.
The total absorbed power is 22 W. The power supply cable is included and features a 0.25 m length.
The device features protection class II and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
