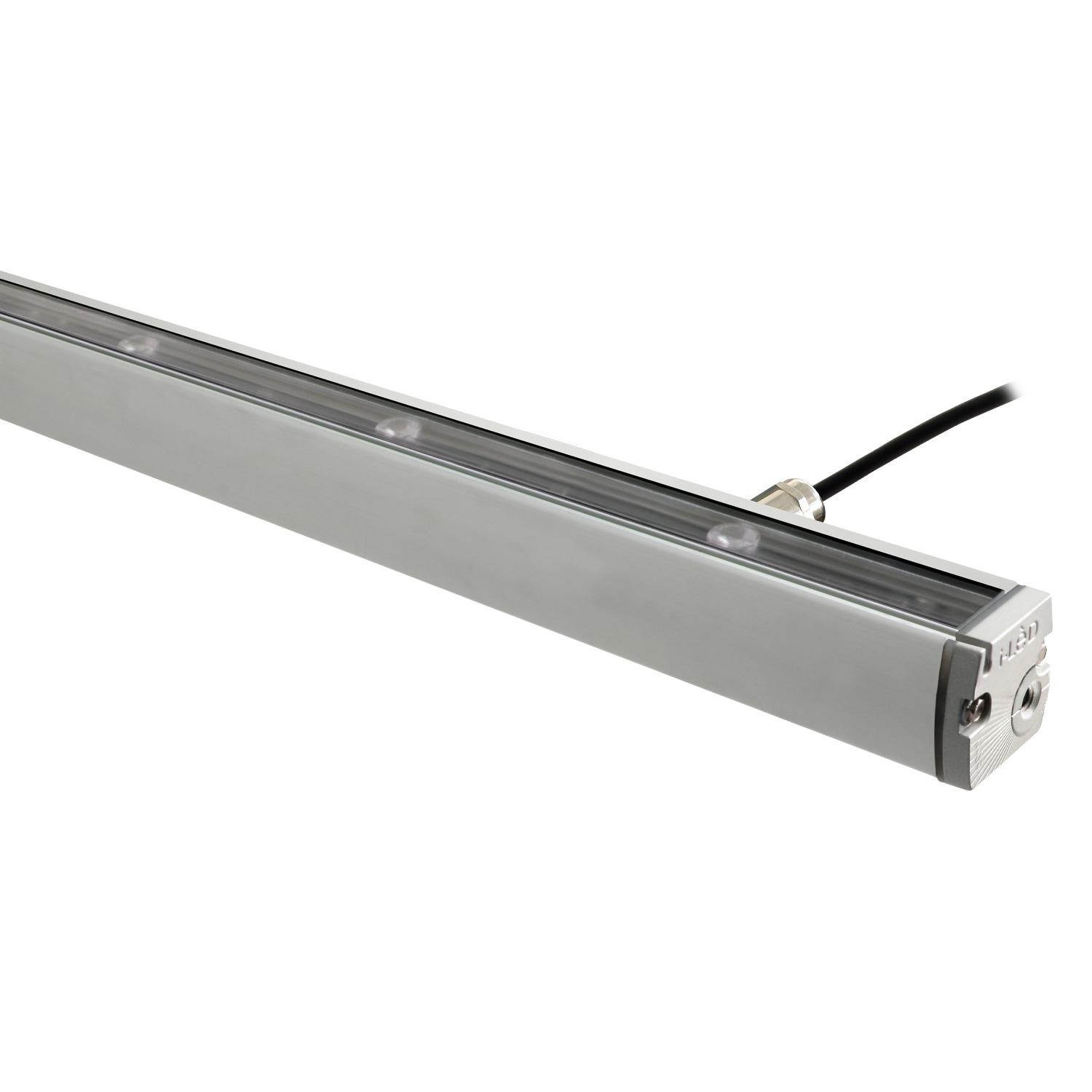

Xenia_W
C00529AMM3F
Outdoor / Wall lighting, Linear Lighting
Wall Lights - Lines
3 x powerLEDs 6.1 W DC 630 mA
| IP | IP66 |
|---|---|
| IK | 07 |
| Optic | Elliptic Flood (20°÷29°) X >60° |
| Degrees | 92° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 624 lm |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Efficiency | 102.3 lm/W |
| Source Type | powerLEDs |
Technical description
Single emission wall lights or lines for outdoor application. The super warm white LED light source with a elliptic flood (20°÷29°) x >60° light distribution is composed of 3 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 798 lm, with a 130.8 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 0.45 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 6.1 W. The power supply cable is included and features a 1 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99186
Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 630mA 39V / 12-24 W DC powerLEDs | On/Off Driver 198~264V AC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
Code C-E200008
Aqualed_Slim - On/Off Driver - 12W DC 630mA 9-20V | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation | CC |
