Xenia_W

C00532AMMWW

New

Outdoor / Wall lighting, Linear Lighting

Wall Lights - Lines

12 x powerLEDs 24.3 W DC 630 mA

IP
IP66
IK
07
Optic
Asymmetric Wallwasher
Degrees
90°
CCT
2700 K
CRI
80
Delivered lumens
2366 lm
Installation position
Wall lights, Ceiling, Floor
Control
Efficiency
97.4 lm/W
Source Type
powerLEDs

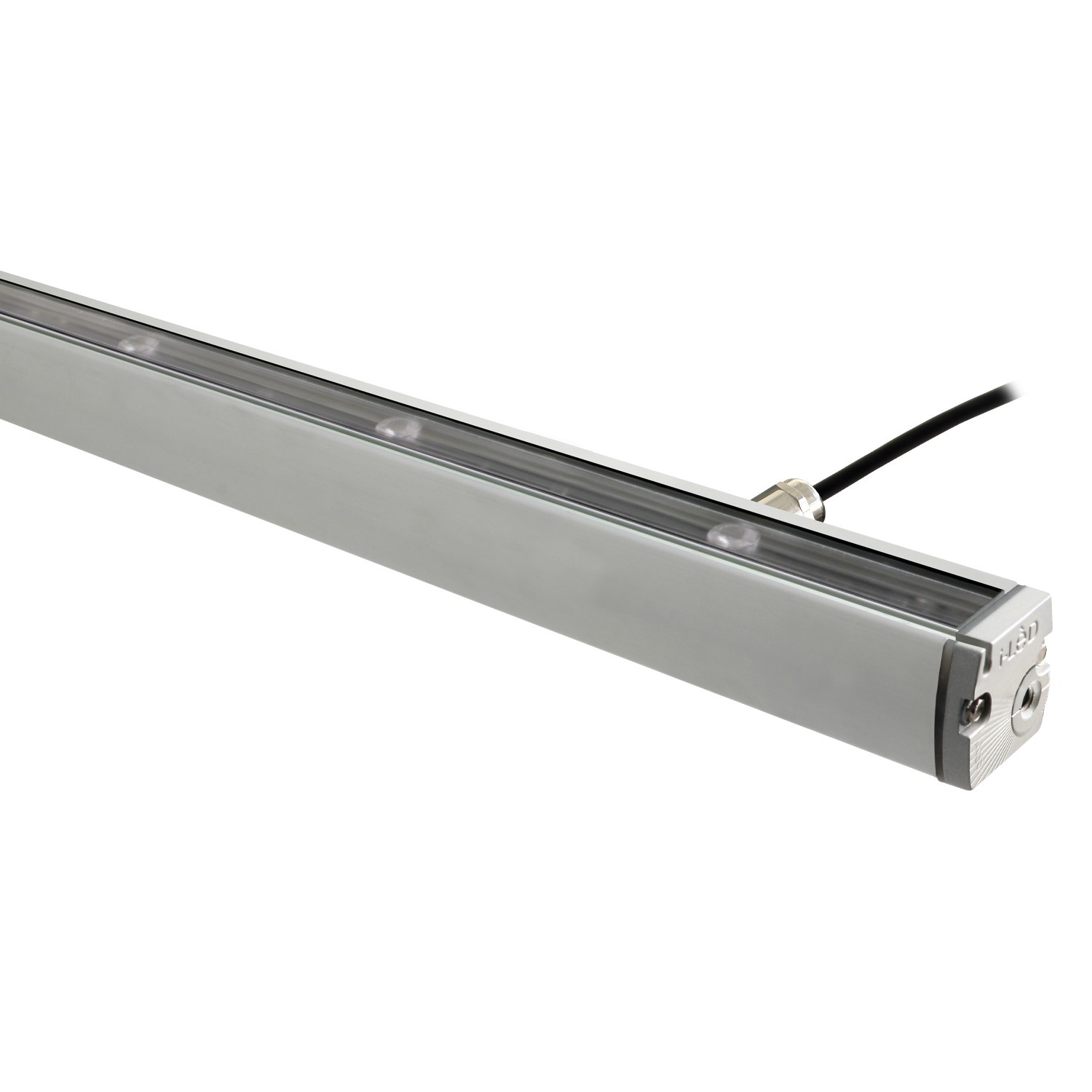

Single emission wall lights or lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2988 lm, with a 123.0 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 1.3 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 24.3 W. The power supply cable is included and features a 1 m length.

The device features protection class III and can be wall lights, ceiling or floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99186

Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 630mA 39V / 12-24 W DC powerLEDs | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP67
OperationCC
Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 630mA 39V / 12-24 W DC powerLEDs |   On/Off Driver 198~264V AC
