Xenia_W

C00534AMNFL

New

Outdoor / Wall lighting, Linear Lighting

Wall Lights - Lines | 85-277 V

3 x powerLEDs 6.1 W DC - 7.8 W AC

IP
IP66
IK
07
Optic
Flood
Degrees
28.8°
CCT
4000 K
CRI
80
Delivered lumens
634 lm
Installation position
Wall lights, Ceiling, Floor
Control
Efficiency
81.3 lm/W
Source Type
powerLEDs

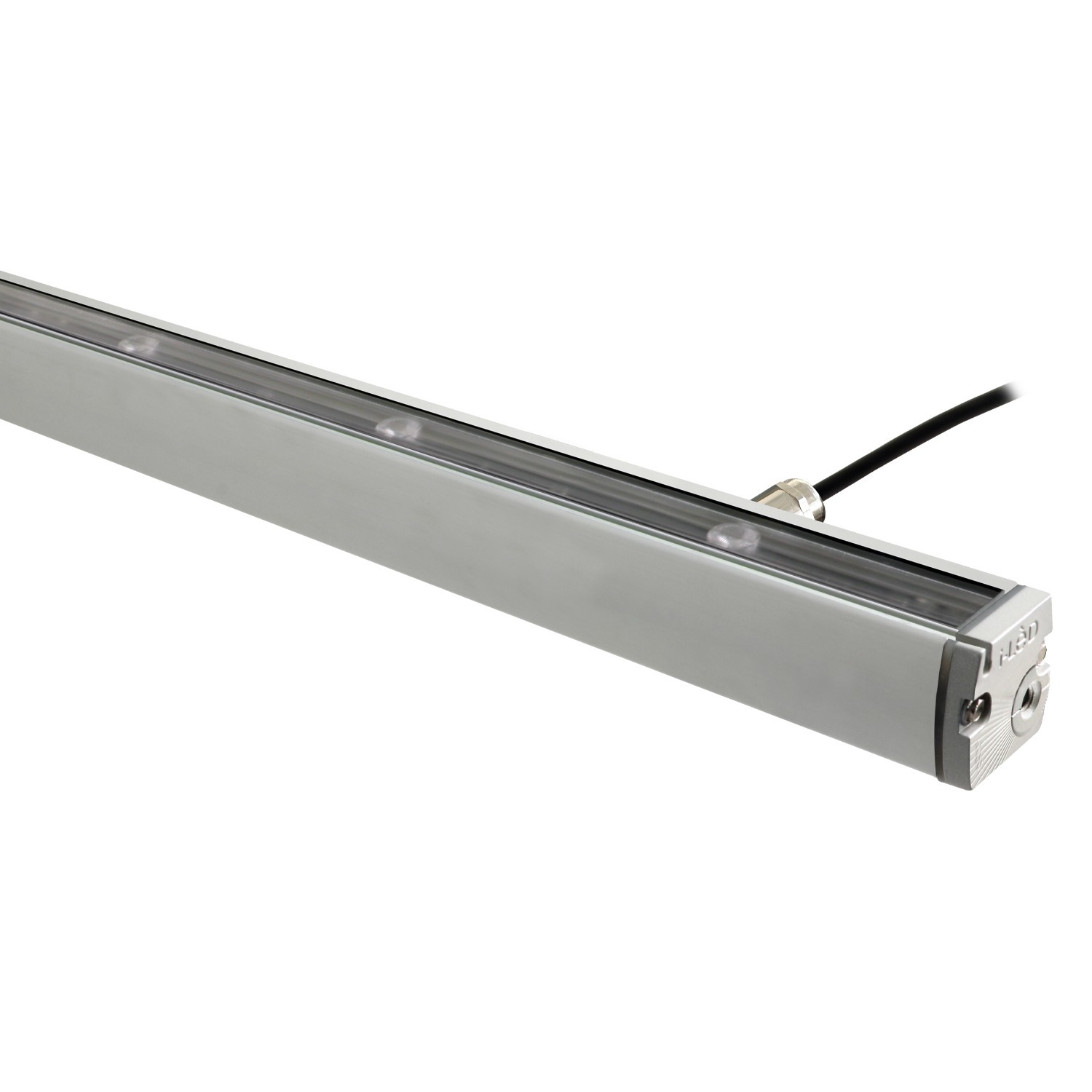

Single emission wall lights or lines for outdoor application. The natural white LED light source is composed of 3 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 909 lm, with a 149.0 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 0.55 kg.

The total absorbed power is 7.8 W. The power supply cable is included and features a 0.25 m length.

The device features protection class II and can be wall lights, ceiling or floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
