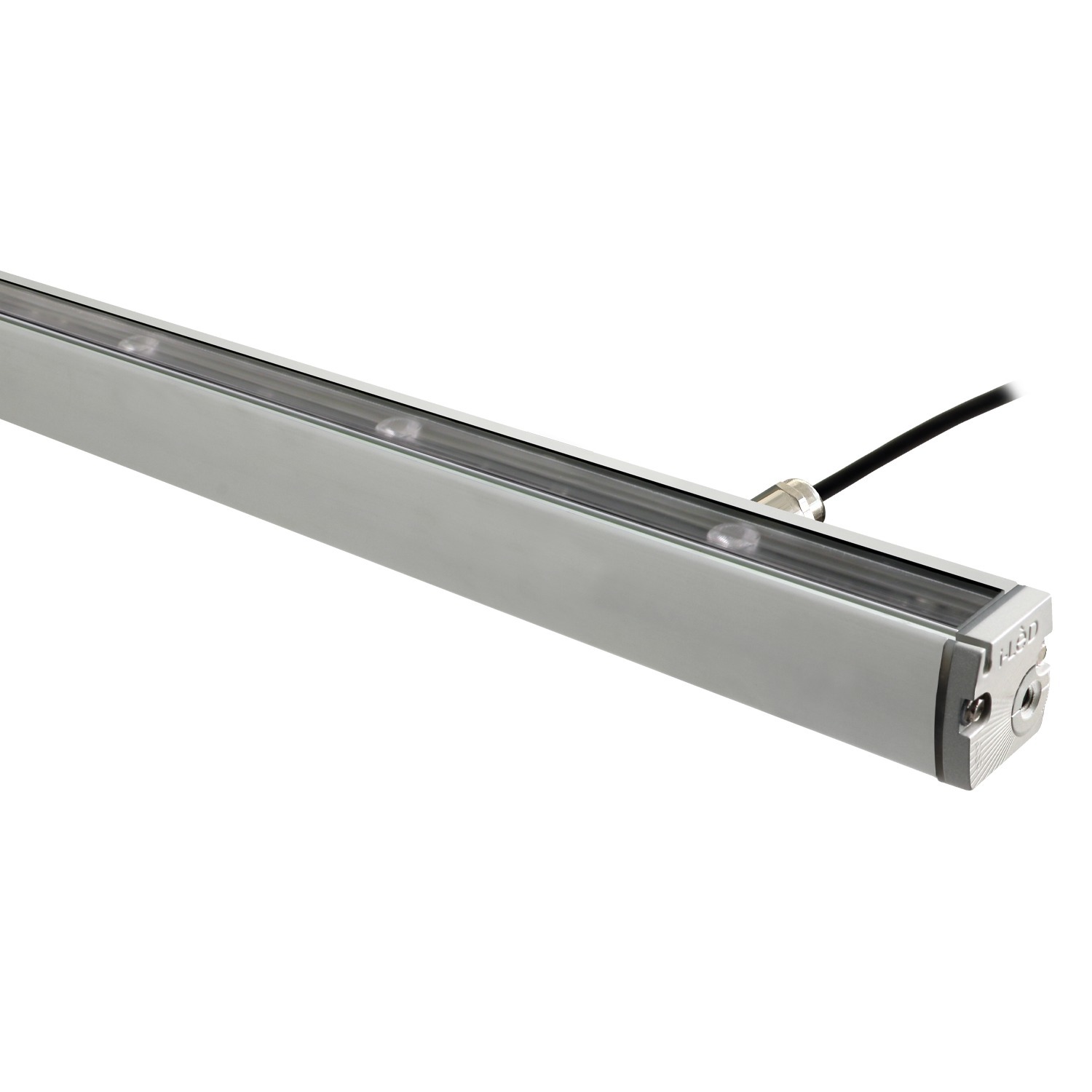

Xenia_W
C00535AMWFL
Outdoor / Wall lighting, Linear Lighting
Wall Lights - Lines | 85-277 V
6 x powerLEDs 12.1 W DC - 14.2 W AC













IP | IP66 |
---|---|
IK | 07 |
Optic | Flood |
Degrees | 28.8° |
CCT | 3000 K |
CRI | 80 |
Delivered lumens | 1111 lm |
Installation position | Wall lights, Ceiling, Floor |
Control | |
Efficiency | 78.2 lm/W |
Source Type | powerLEDs |
Technical description
Single emission wall lights or lines for outdoor application. The warm white LED light source is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1594 lm, with a 131.7 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of 15 µm anodizing; the diffuser is made of pmma. The ingress protection degree is IP66; the total weight is of 0.8 kg.
The total absorbed power is 14.2 W. The power supply cable is included and features a 0.25 m length.
The device features protection class II and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
