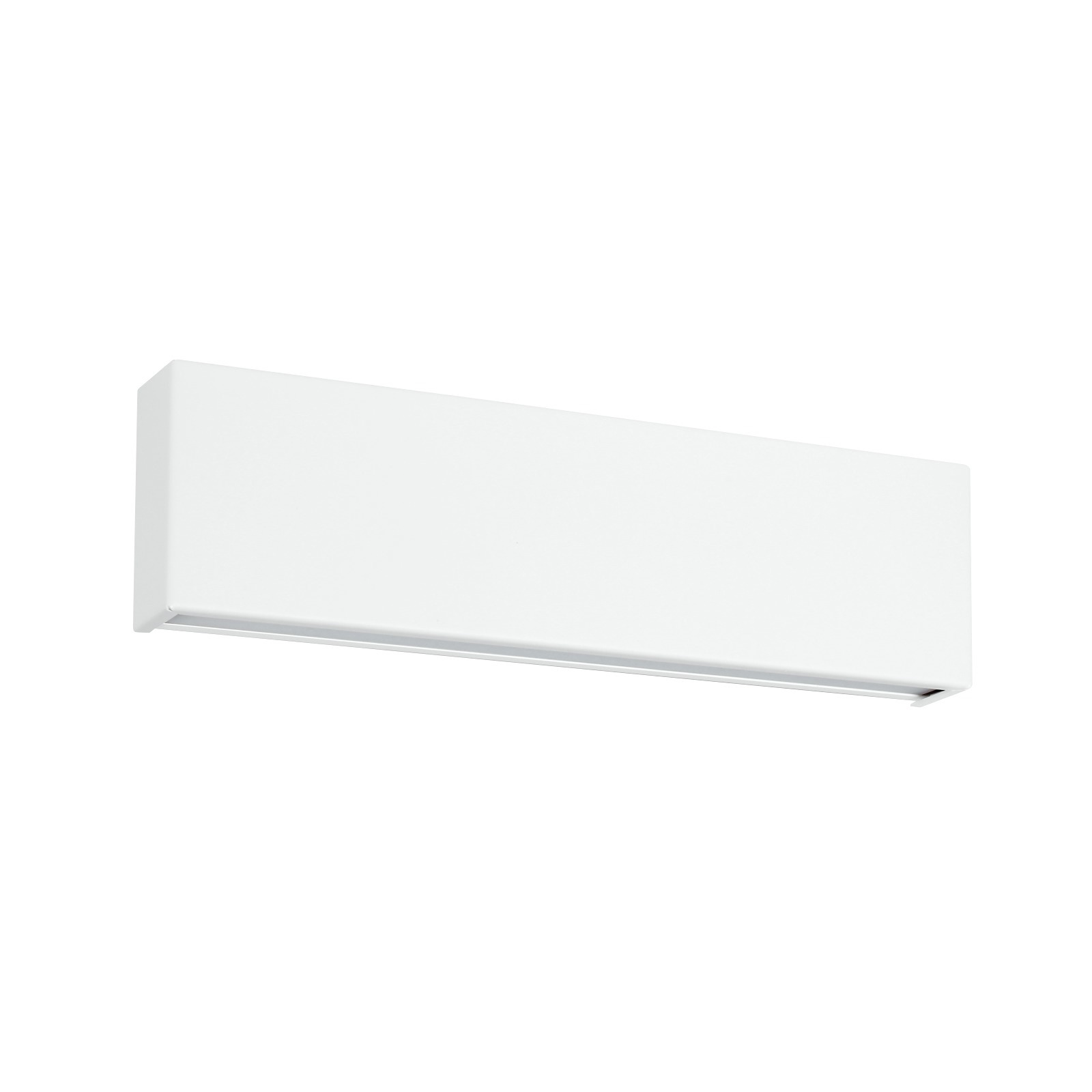

Box_W2 Bi Emission
8256
Indoor / Luminaria De Pared
Luminaria de pared | 198-264 V
72 topLED 18 W DC - 19 W AC
| IP | IP40 |
|---|---|
| Óptica | Diffused |
| Grados | 120° |
| CCT | 3000 K |
| CRI | 90 |
| Lumen de luminaria | 1510 lm |
| Acabados | Text white RAL 9003 |
| Posición de instalación | Pared |
| Control | |
| Eficacia | 79.5 lm/W |
| Tipo de fuente | topLED |
| Precio de lista (IVA no incluida) | 130,00 € |
| _availabilityClass | A |
Descripción técnica
Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2370 lm, with a 131.7 lm/W nominal luminous efficacy.
The device body is made of iron and features a text white ral9003 finish, processed by means of coating; the diffuser is made of pmma.
The ingress protection degree is IP40; the total weight is of 1 kg.
The total absorbed power is 19 W
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Descargas
Documentación

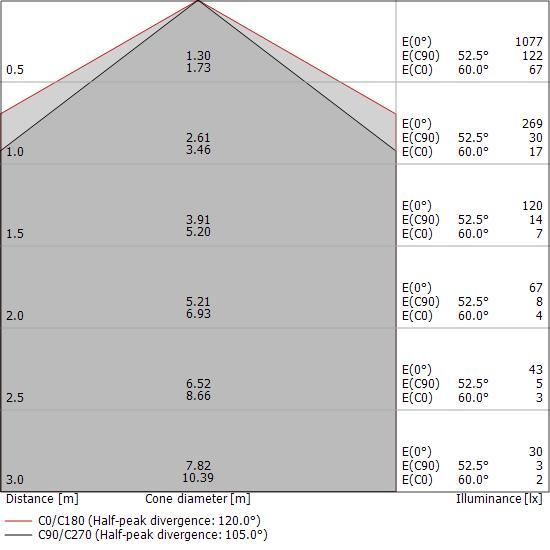

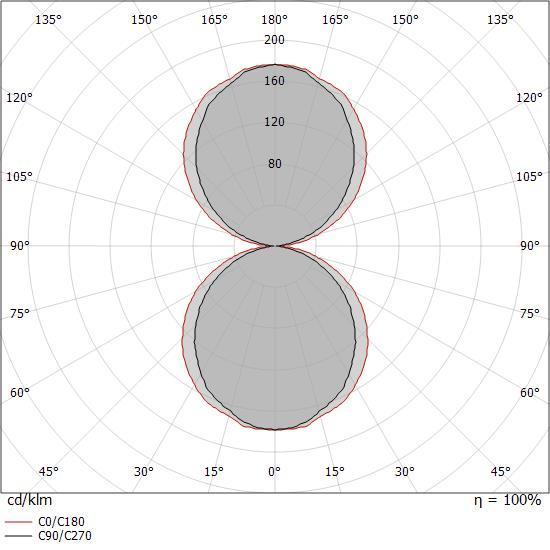

Datos fotométricos
