Pound_BC
82353W30
Indoor / Lámparas de Techo
Plafón
1 arrayLED 13 W DC 350 mA
| IP | IP20 |
|---|---|
| Óptica | Flood |
| Grados | 26.2° |
| CCT | 3000 K |
| CRI | 90 |
| Lumen de luminaria | 1242 lm |
| Acabados | Text white RAL 9003 |
| Posición de instalación | Techo |
| Control | |
| Eficacia | 95.5 lm/W |
| Tipo de fuente | arrayLED |
| Precio de lista (IVA no incluida) | 202,00 € |
| _availabilityClass | D |

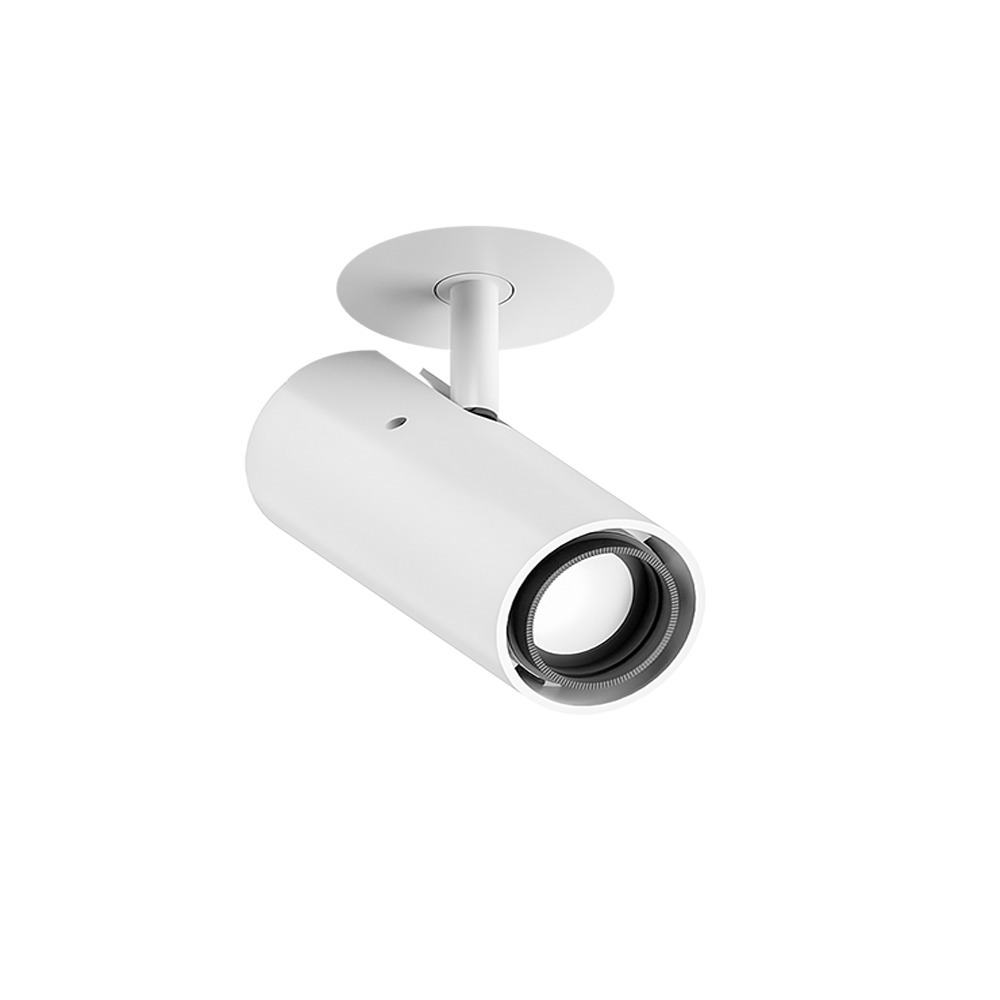

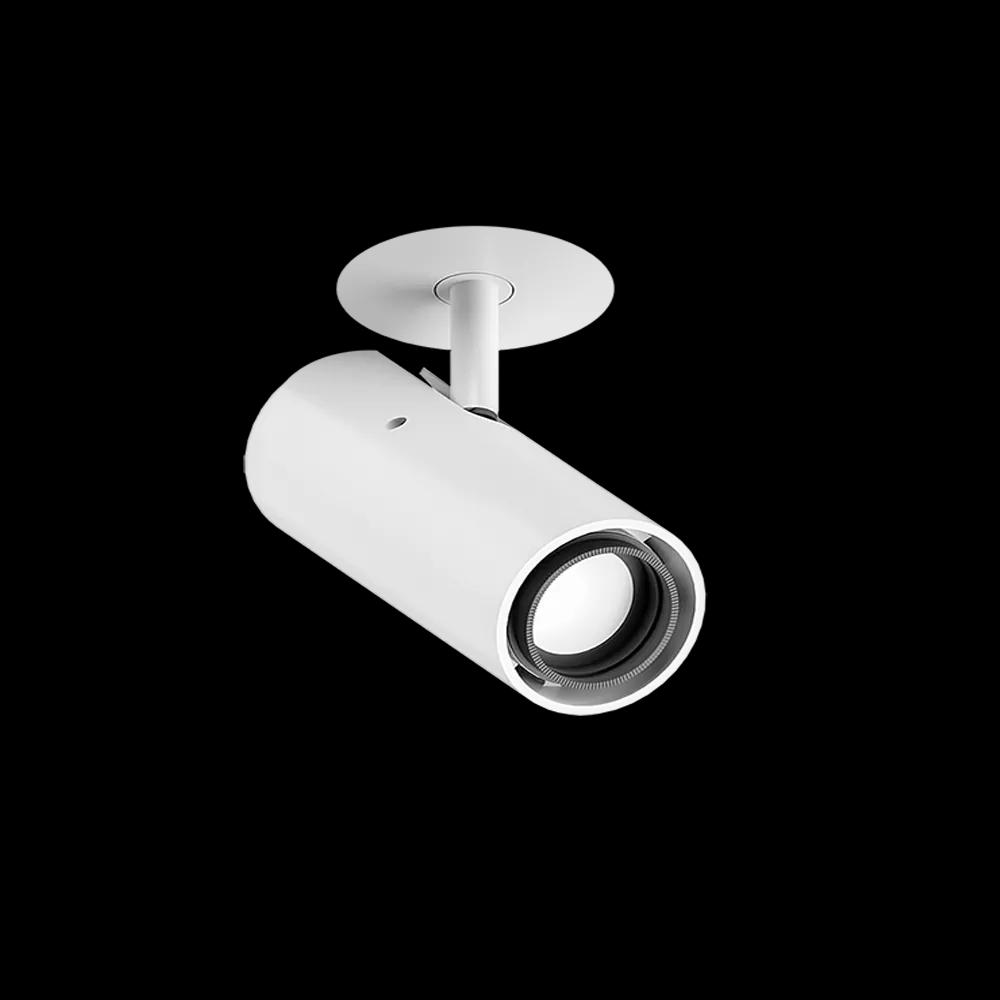

Descripción técnica
Single emission ceiling downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1771 lm, with a 136.2 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a text white ral9003 finish, processed by means of powder coating with thermosetting powders.
The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 13 W
The device features protection class III and can be ceiling-mounted, with a 57 mm diameter hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
Electrónica
Código 99375
Slim 12 - On/Off Driver - Output 350mA 17-40V 12W | On/Off Driver 198~264V AC
| Familia | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Código 83322
Simon_PRO - DALI2 Push and Simply Dim Multi Current - 200/250/300/350/400mA 12/37V 15W | Push and Simply Dim Controller
| Familia | Controller |
|---|---|
| IP | IP40 |
| Operation |
Código 99115
Boson - 0/1-10V N/O button Multi Current - Output 350/500/630mA 3/46V 22W | 1-10V N/O button Multi Power 198~264V AC / V DC
| Familia | Multi Power |
|---|---|
| IP | IP40 |
| Operation |
