Clark316
C00773SEMFL
Outdoor / Прожектор
Прожектор | 198-264 V
1 arrayLED 25 W DC - 26.5 W AC















| IP | IP68 |
|---|---|
| IK | 10 |
| Оптика | Flood |
| градус | 26.4° |
| CCT | 2700 K |
| CRI | 80 |
| Световой поток светильника | 2976 lm |
| отделка | |
| Положение установки | Стена, Потолок, Пол |
| Управление | |
| Эффективность | 112.3 lm/W |
| Тип источника | arrayLED |
| List price (excl. VAT) | 524,00 € |
| _availabilityClass | D |
Техническое описание
Single emission projectors for outdoor application. The super warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 3851 lm, with a 154.0 lm/W nominal luminous efficacy.
Product suitable for installations in coastal areas with high salinity and strong exposure to atmospheric agents.
The device body is made of aisi 316 stainless steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The robust steel structure enhances the fixture’s design and ensures long‑lasting performance, even in the most demanding environments.
The ingress protection degree is IP68; the total weight is of 2.4 kg.
The total absorbed power is 26.5 W The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Загрузки
Документация

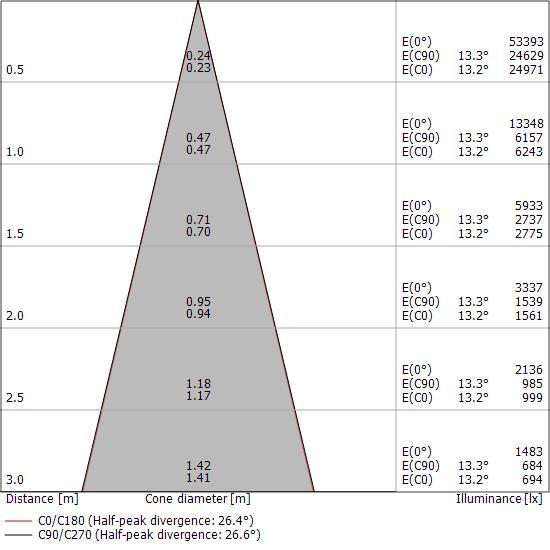

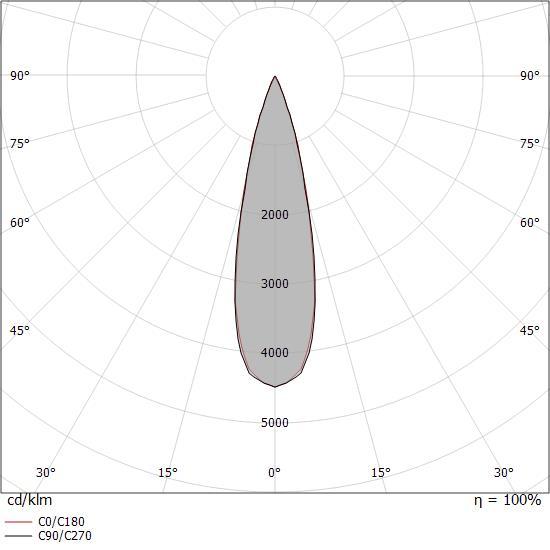

Фотометрические данные
