92167A79

Outdoor / Тумбовые Светильники & Опоры, Уличные наземные светильники

Тумбовые светильники & Опоры | 198-264 V

6 x powerLEDs 40 W DC - 43 W AC

IP
IP66
IK
08
Оптика
Park
CCT
2200 K
CRI
80
Световой поток светильника
2938 lm
отделка
Text anthracite grey RAL 7016
Положение установки
Yличного фонаря
Управление
Эффективность
68.3 lm/W
Тип источника
powerLEDs

Single emission bollard & pole for outdoor application. The ancient white LED light source with a park light distribution is composed of 6 powerled LEDs with CCT of 2200 K and a CRI 80; the source luminous flux is 4241 lm, with a 106.0 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a anthracite gray ral 7016 finish, processed by means of powder coating with thermosetting powders; the diffuser is made of extra clear glass with a silk-screening treatment.

The ingress protection degree is IP66; the total weight is of 3.5 kg.

The total absorbed power is 43 W The power supply cable is included and features a 1 m length.

The device features protection class II and can be pole-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Загрузки

Документация

Техническая спецификация

.pdf

Инструкция

.pdf

Изображение продукта

.jpeg

Текст спецификации

.txt

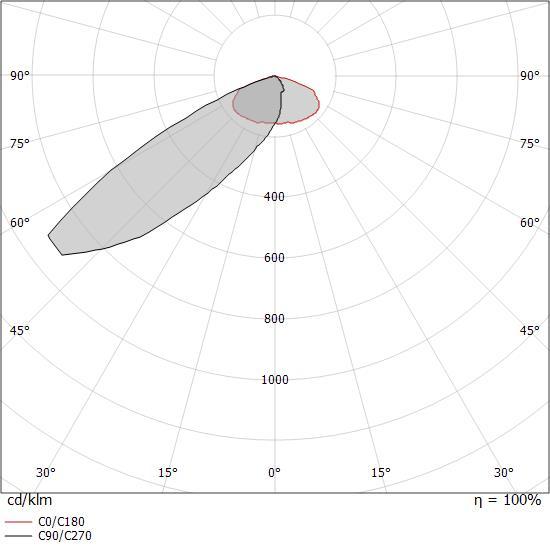

Фотометрические данные

2D/3D Чертеж
