Ribbon
C0046MDI05000
Indoor / Светодиодная Полоса
Светодиодная полоса | 1 topLED 108 W DC 24 V
21.6 W/m | 2341 Lm/m
| IP | IP20 |
|---|---|
| Оптика | Diffused |
| градус | 134.4° |
| CCT | 2700 K |
| CRI | 95 |
| Световой поток светильника | 11705 lm |
| Положение установки | Стена, Потолок |
| Управление | |
| Эффективность | 108.4 lm/W |
| Тип источника | topLED |
| List price (excl. VAT) | 110,00 € |
| Product category | A |
Техническое описание
Single emission led strip for indoor application. The super warm white LED light source with a diffused light distribution is composed of 800 stripled LEDs with CCT of 2700 K and a CRI 95; the source luminous flux is 11705 lm, with a 108.4 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish.
The ingress protection degree is IP20; the total weight is of 0.17 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 108 W The power supply cable is included and features a 0.2 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Профили
Вы видели 4 продуктов из 7
Электроника
Код 99722
Stormshield | DALI Driver 24V - Output 5A 24V 1-120W | DALI Controller
| Семья | Controller |
|---|---|
| IP | IP67 |
| Operation |
Код 99374
Reson_75 | On/Off Driver - Output 3.12A 24V 1-75W | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Семья | Драйвер On/Off |
|---|---|
| IP | IP40 |
| Operation | CV |
Код 83062
DALIFlat Push - Driver DALI PUSH 110 - 6.25A 24V 150W | DALI Push and Simply Dim Controller
| Семья | Controller |
|---|---|
| IP | IP20 |
| Operation |
Код 99332
Reson_150 | 0/1-10V Driver 24 V - Output 6.25A 24V 1-150W | 1-10V Controller
| Семья | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Вы видели 4 продуктов из 6
Загрузки
Документация

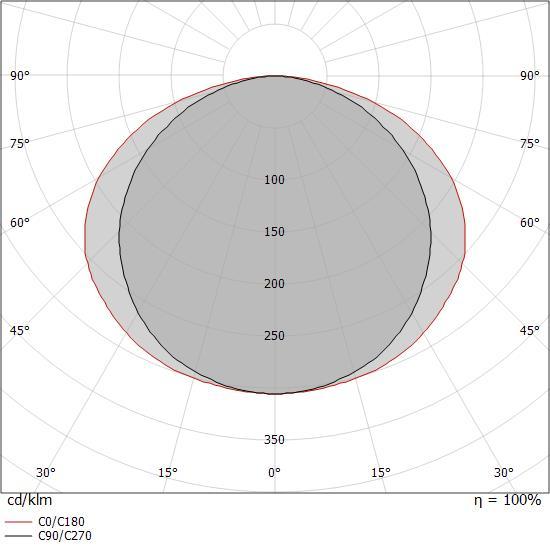

Фотометрические данные
