Antille_S
8888
Indoor / Ceiling Lights, Wall Mounted Lights
Wall Lights - Ceiling Downlights | 198-264 V
176 topLED 23 W DC - 28 W AC










| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 159.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 2912 lm |
| Finishes | Gold |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 104.0 lm/W |
| Source Type | topLED |
| List price (excl. VAT) | 306,00 € |
| Product category | A |
Technical description

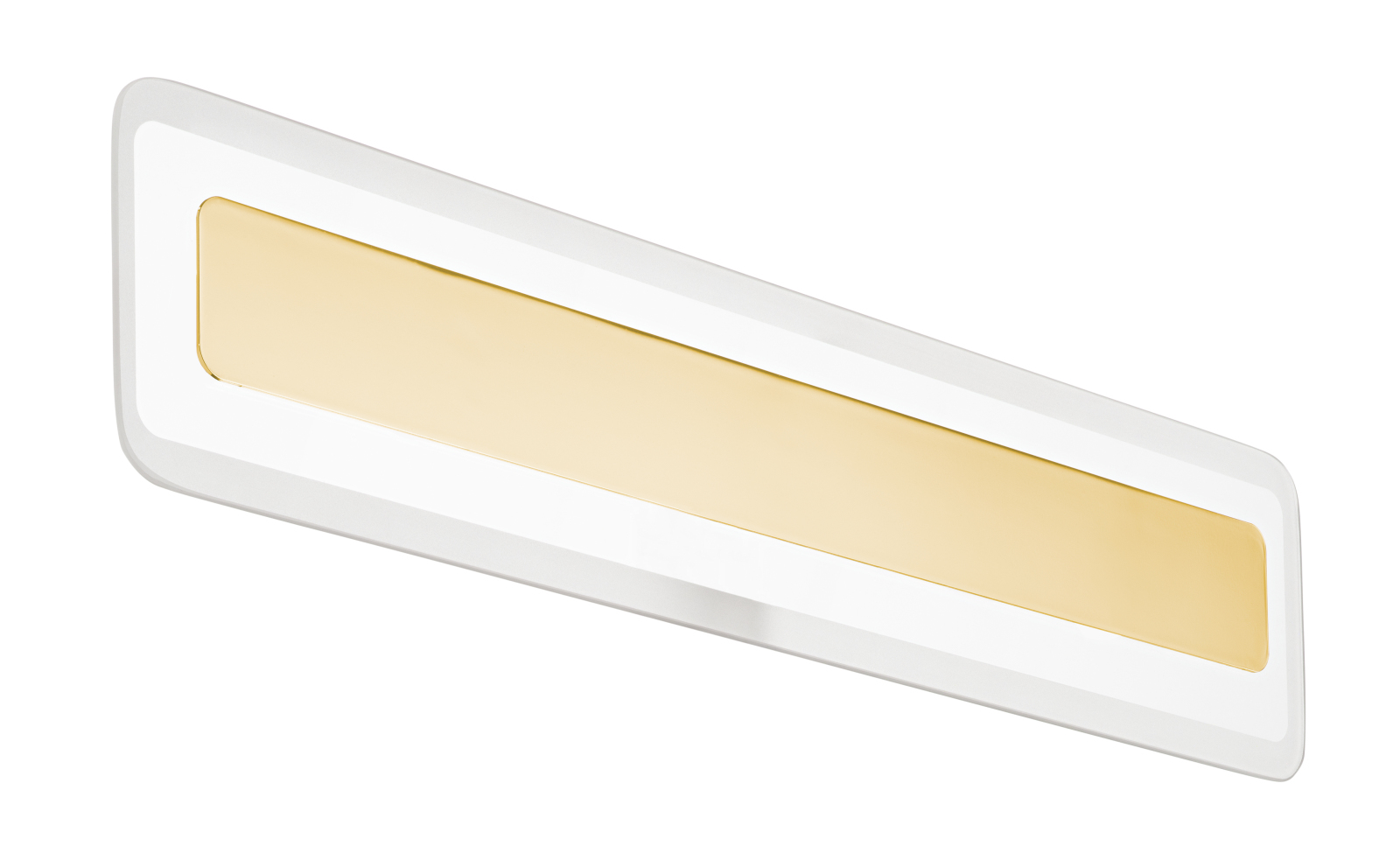

Double emission wall lights or ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 176 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3363 lm, with a 146.2 lm/W nominal luminous efficacy.
The device body is made of iron and features a polished (galvanic) gold finish, processed by means of electroplating; the diffuser is made of glass with a sandblasting treatment; the mounting frame is made of iron, with a text white ral9003 finish, processed by means of coating.
The ingress protection degree is IP20; the total weight is of 1.885 kg.
The total absorbed power is 28 W
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
