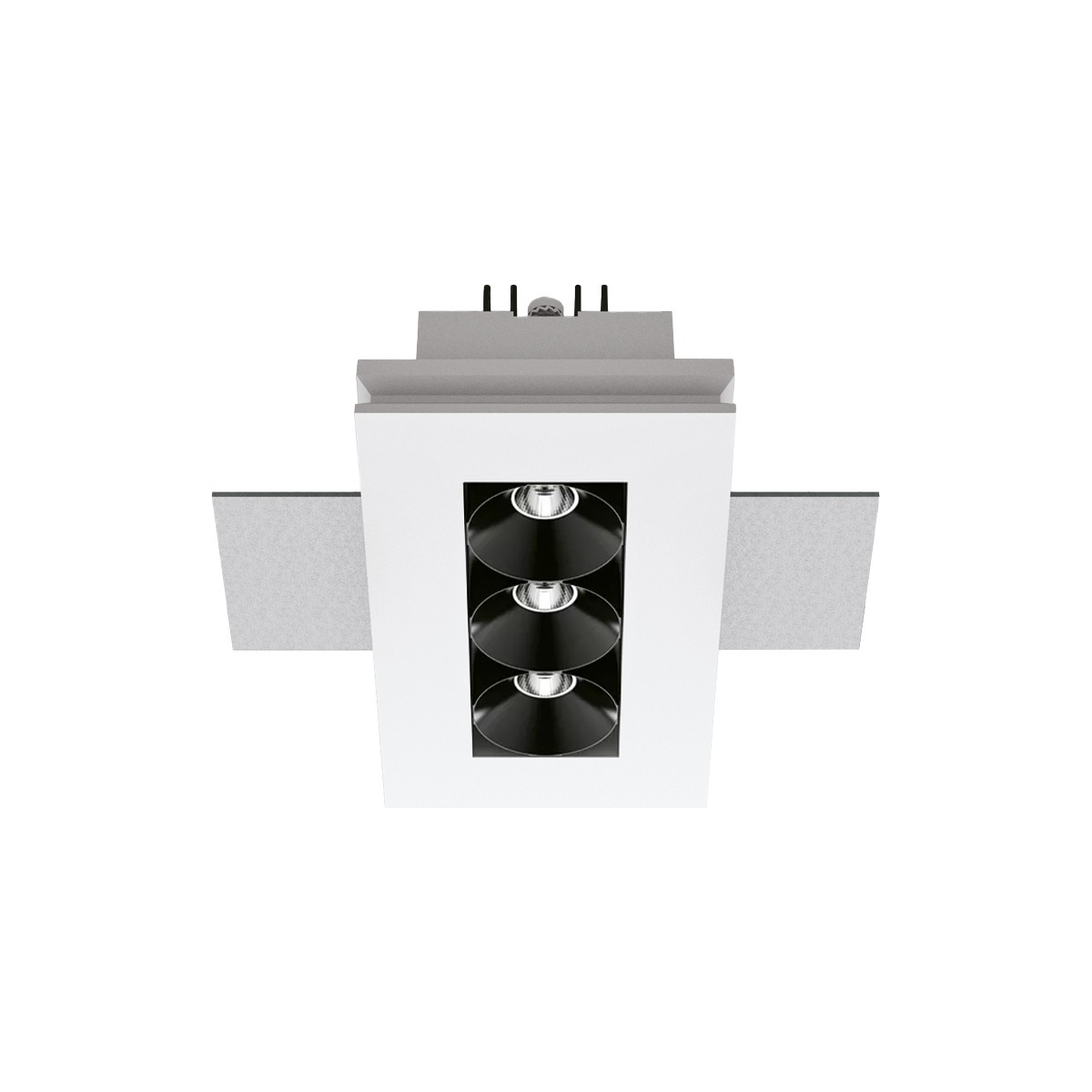

Gypsum Cell
64546N15
Indoor / Recessed Downlights
Downlights
3 x powerLEDs 6 W DC 630 mA
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2Ffdfebcfec36a75249d3cd0adcbce9db5_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F138a6e98658c64dd3c113ca1028b6c38_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F3f449124c601553354c922404a40ea44_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F600f0c1252eb991cc6b7efccddd2aec9_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2Ff37449d8632a1d8adf7596d9f85e1147_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F815184625e31e8fef30400af288df26c_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F451c4fdb5221ec3d4e3d6dc2510350f7_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F9032dcdc6a118e4b9ded02840aaa771c_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F74fcd7fb2dc6fdaf2a66bbf77cc53069_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F9c6499210aa00a8300112905b77132c8_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F60e2026e65c461ede3237d1e998e6347_ORIGINAL.webp&w=96&q=75)
![](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F8fe5b3ea835cb476ae52931a984fae0a_ORIGINAL.webp&w=96&q=75)
IP | IP20 |
---|---|
Optic | Spot |
Degree | 12.8° |
CCT | 4000 K |
CRI | 80 |
Delivered lumens | 468 lm |
Finishes | Black |
Installation position | Ceiling |
Control | |
Efficiency | 78.0 lm/W |
Source Type | powerLEDs |
Technical description
Single emission recessed downlights for indoor application. The natural white LED light source with a spot light distribution is composed of 3 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 711 lm, with a 118.5 lm/W nominal luminous efficacy.
The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.500 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 6 W. The power supply cable is included and features a 0.170 m length.
The device features protection class III and can be ceiling-mounted, with a 160 x 90 mm hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99376
Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |
![Slim - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2Fc505c0b1d497c2b9b341ea678c63d238_ORIGINAL.webp&w=3840&q=75)
Code 99105
Leon - On/Off Driver | On/Off Driver 198~264V AC
Family | On/Off Driver |
---|---|
IP | IP40 |
Operation | CC |
![Leon - On/Off Driver | On/Off Driver 198~264V AC](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2F300fd54ec807a241d19836c97a7ecb42_ORIGINAL.webp&w=3840&q=75)
Code C-E100001
Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W | Push and Simply Dim Multi Power 198~264V AC / 180~275V DC
Family | Multi Power |
---|---|
IP | IP40 |
Operation | CC |
![Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W | Push and Simply Dim Multi Power 198~264V AC / 180~275V DC](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2Fbaf05a00ccaa67874146c89952703f23_ORIGINAL.webp&w=3840&q=75)
Code 99115
Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC
Family | Multi Power |
---|---|
IP | IP40 |
Operation | CC |
![Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC](/_next/image?url=https%3A%2F%2Fstatic.linealight.com%2Fstatic%2Ffd2c0f02cfd37ebe8a44c7ed3cb4b7ce_ORIGINAL.webp&w=3840&q=75)
