Clark316

C00773SEMFL

Outdoor / Projectors

Projectors | 198-264 V

1 arrayLED 25 W DC - 26.5 W AC

IP
IP68
IK
10
Optic
Flood
Degrees
26.4°
CCT
2700 K
CRI
80
Delivered lumens
2976 lm
Finishes
Stainless steel
Installation position
Wall lights, Ceiling, Floor
Control
Efficiency
112.3 lm/W
Source Type
arrayLED
List price (excl. VAT)
524,00 €
Product category
D

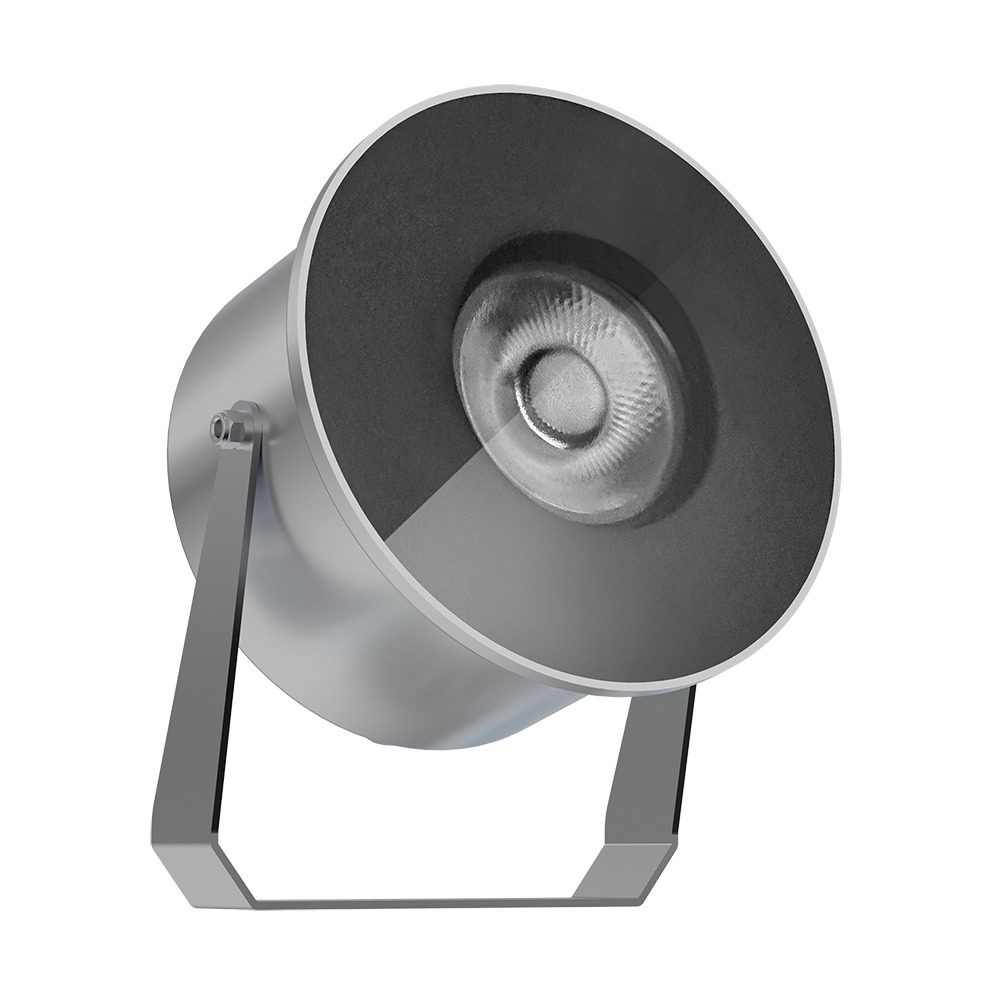

Single emission projectors for outdoor application. The super warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 3851 lm, with a 154.0 lm/W nominal luminous efficacy.

Product suitable for installations in coastal areas with high salinity and strong exposure to atmospheric agents.

The device body is made of aisi 316 stainless steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The robust steel structure enhances the fixture’s design and ensures long‑lasting performance, even in the most demanding environments.

The ingress protection degree is IP68; the total weight is of 2.4 kg.

The total absorbed power is 26.5 W The power supply cable is included and features a 1 m length.

The device features protection class II and can be wall lights, ceiling or floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
