Gemini_W1
9670
Indoor / Wall Mounted Lights
Wall Lights | 198-264 V
48 topLED 13 W DC - 14 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 180° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 880 lm |
| Finishes | Statuary |
| Installation position | Wall lights |
| Control | |
| Efficiency | 62.9 lm/W |
| Source Type | topLED |
| List price (excl. VAT) | 199,00 € |
| Product category | A |
Technical description

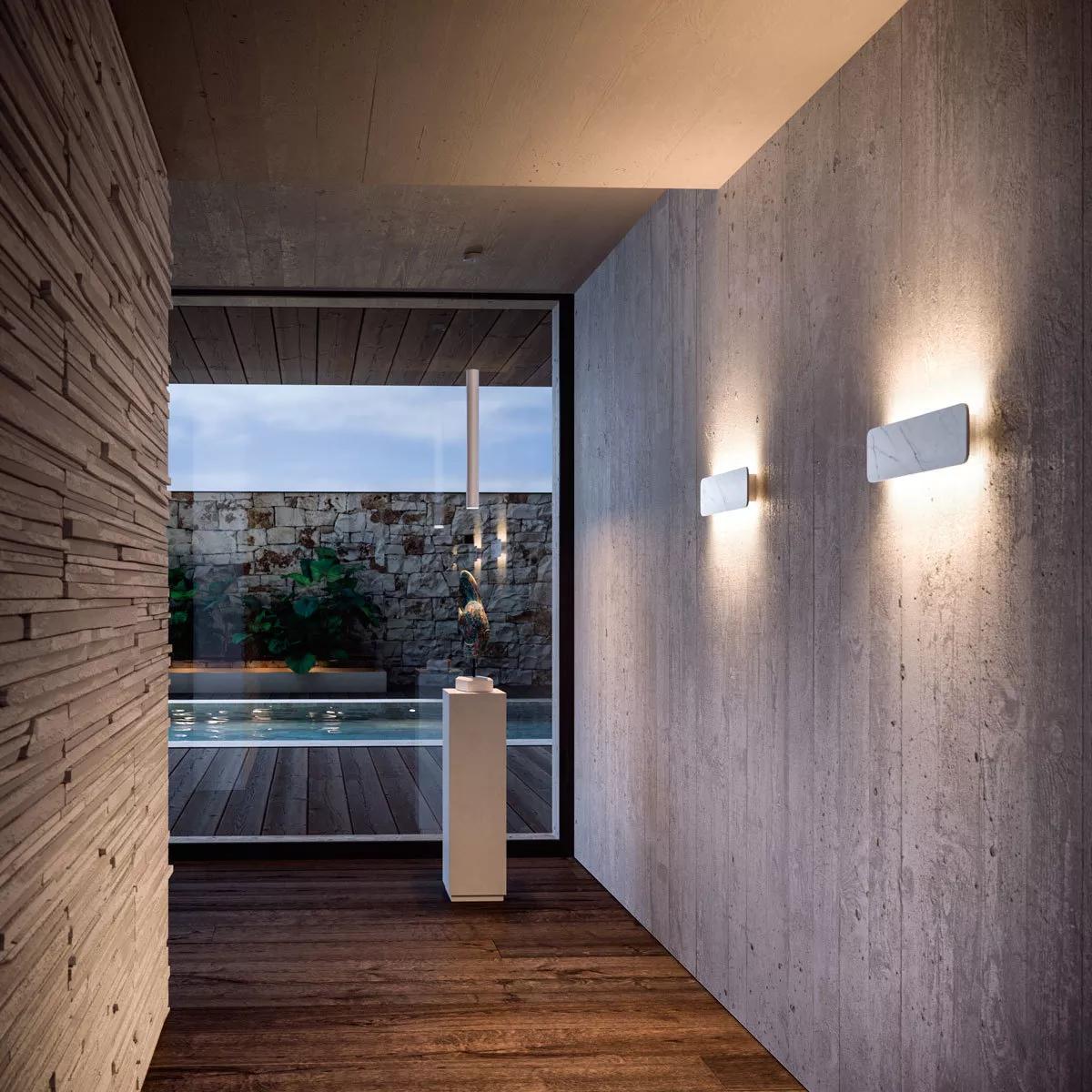

Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 48 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1322 lm, with a 101.7 lm/W nominal luminous efficacy.
; the diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of aluminium, with a text white ral9003 finish, processed by means of coating.
The ingress protection degree is IP40; the total weight is of 1.320 kg.
The total absorbed power is 14 W
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
2D/3D Drawings
