Ribbon
84195
LED Strip | 1500 topLED 200 W DC 48 V
20 W/m | 1661.9 Lm/m
| IP | IP20 |
|---|---|
| Degrees | 129° |
| CCT | 3000 K |
| CRI | 95 |
| Delivered lumens | 16620 lm |
| Finishes | Text white RAL 9003 |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 83.1 lm/W |
| Source Type | topLED |
Technical description

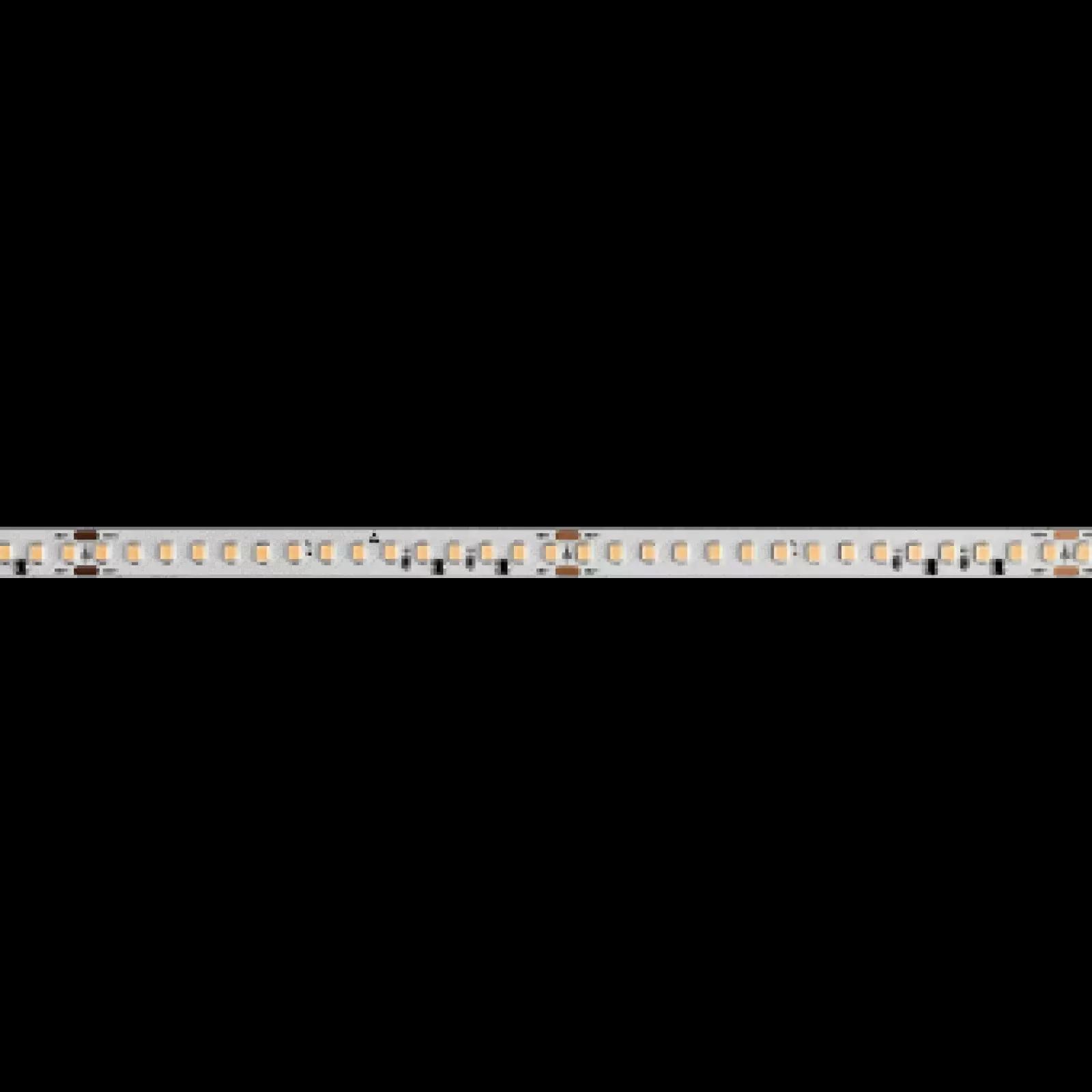

Single emission led strip for indoor application. The warm white LED light source is composed of 1500 stripled LEDs with CCT of 3000 K and a CRI 95; the source luminous flux is 16619 lm, with a 83.1 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish. The ingress protection degree is IP20; the total weight is of 0.130 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 200 W The power supply cable is included and features a 0.50 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Profiles
You've seen 4 products out of 18
Electronics

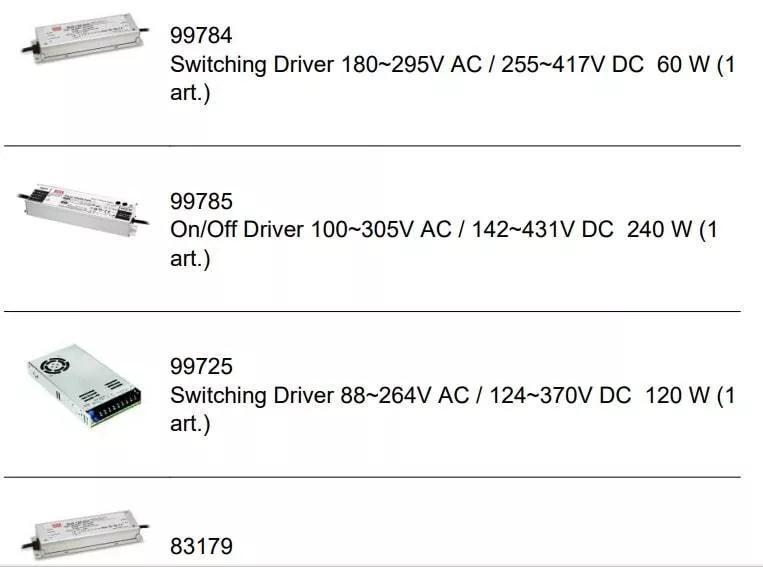

Code 99784
Stormshield | On/Off Driver 48 V - Output 3.13A 48V 1-150W | Switching Driver 180~295V AC / V DC
| Family | Switching Driver |
|---|---|
| IP | IP67 |
| Operation |
Code 99785
Stormshield | On/Off Driver 48 V - Output 5A 48V 1-240W | On/Off Driver 100~305V AC / V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation |

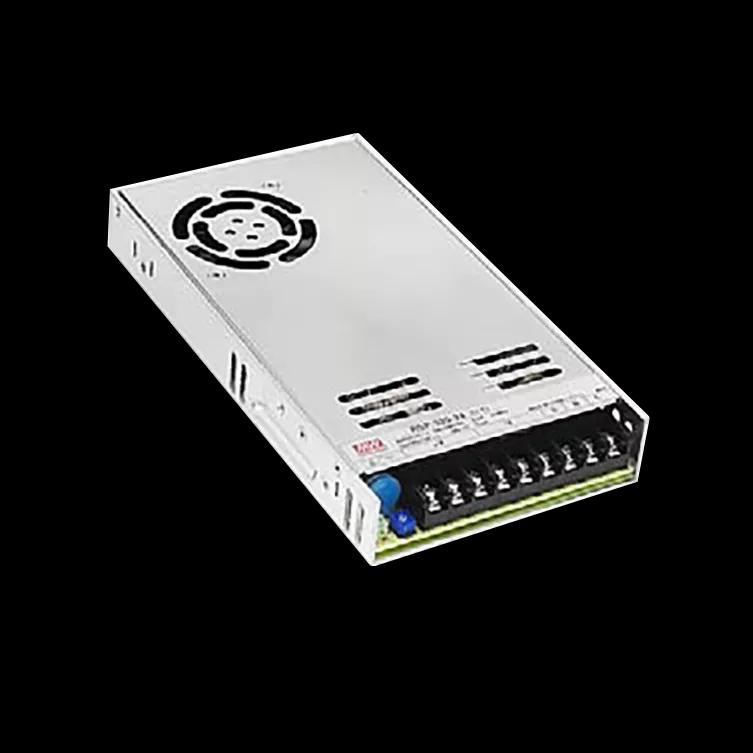

Code 99725
Exa | Switching Driver - Output 6.7A 48V 320W | Switching Driver 88~264V AC / V DC
| Family | Switching Driver |
|---|---|
| IP | IP20 |
| Operation |
You've seen 3 products out of 3
Downloads
Documentation

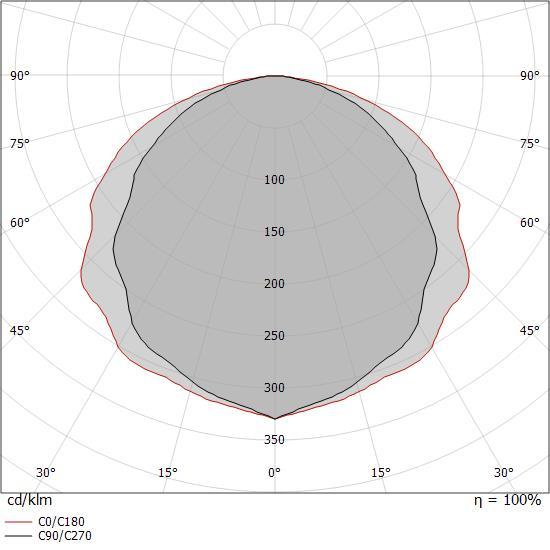

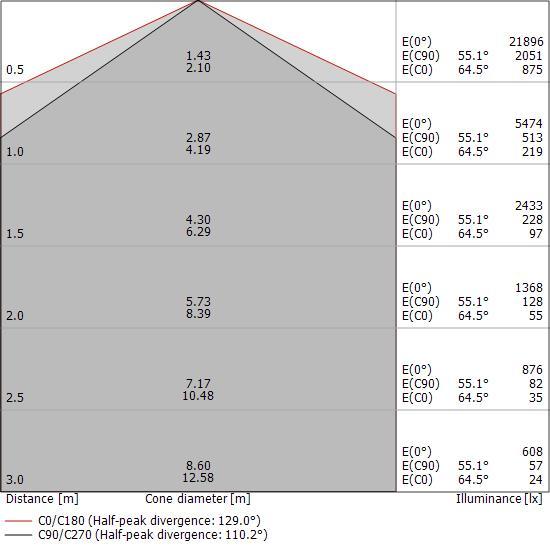

Photometric data
2D/3D Drawings
Accessories
