Ribbon
84197
LED Strip | 270 topLED 67.5 W DC 48 V
13.5 W/m | 0 Lm/m
| IP | IP20 |
|---|---|
| CCT | RGB-W 3000 K |
| Delivered lumens | -- |
| Finishes | Text white RAL 9003 |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Source Type | topLED |
Technical description

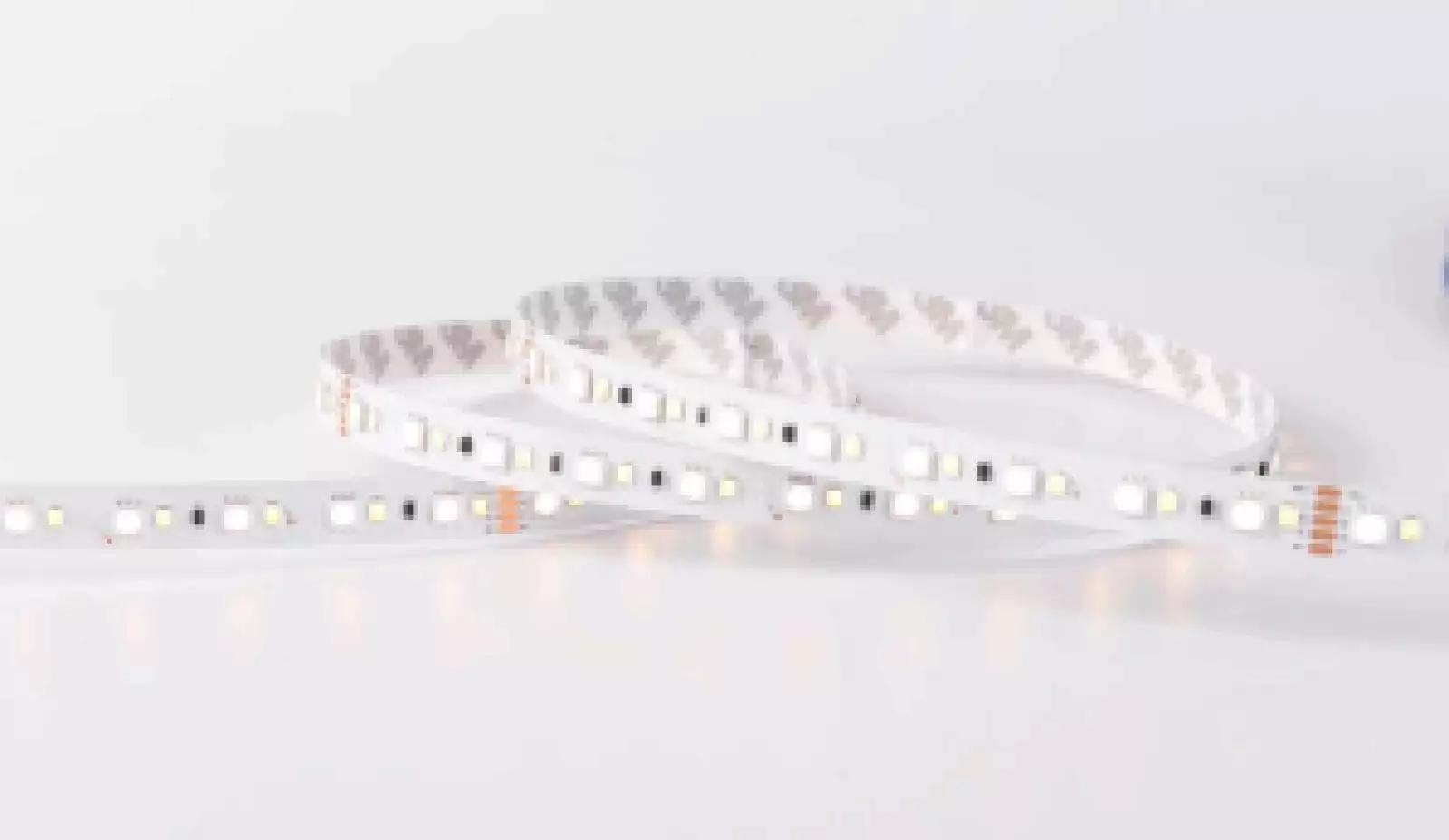

Single emission led strip for indoor application. The RGBW - 3000 K LED light source is composed of 270 topled LEDs with CCT of RGB-W 3000 K.
The device body is made of technopolymer and features a white finish. The ingress protection degree is IP20; the total weight is of 0.125 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 67.5 W The power supply cable is included and features a 0,120 m length.
The device features protection class III and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Profiles
You've seen 4 products out of 18
Electronics
Code 99784
Stormshield | On/Off Driver 48 V - Output 3.13A 48V 1-150W | Switching Driver 180~295V AC / V DC
| Family | Switching Driver |
|---|---|
| IP | IP67 |
| Operation |
Code 99785
Stormshield | On/Off Driver 48 V - Output 5A 48V 1-240W | On/Off Driver 100~305V AC / V DC
| Family | On/Off Driver |
|---|---|
| IP | IP67 |
| Operation |

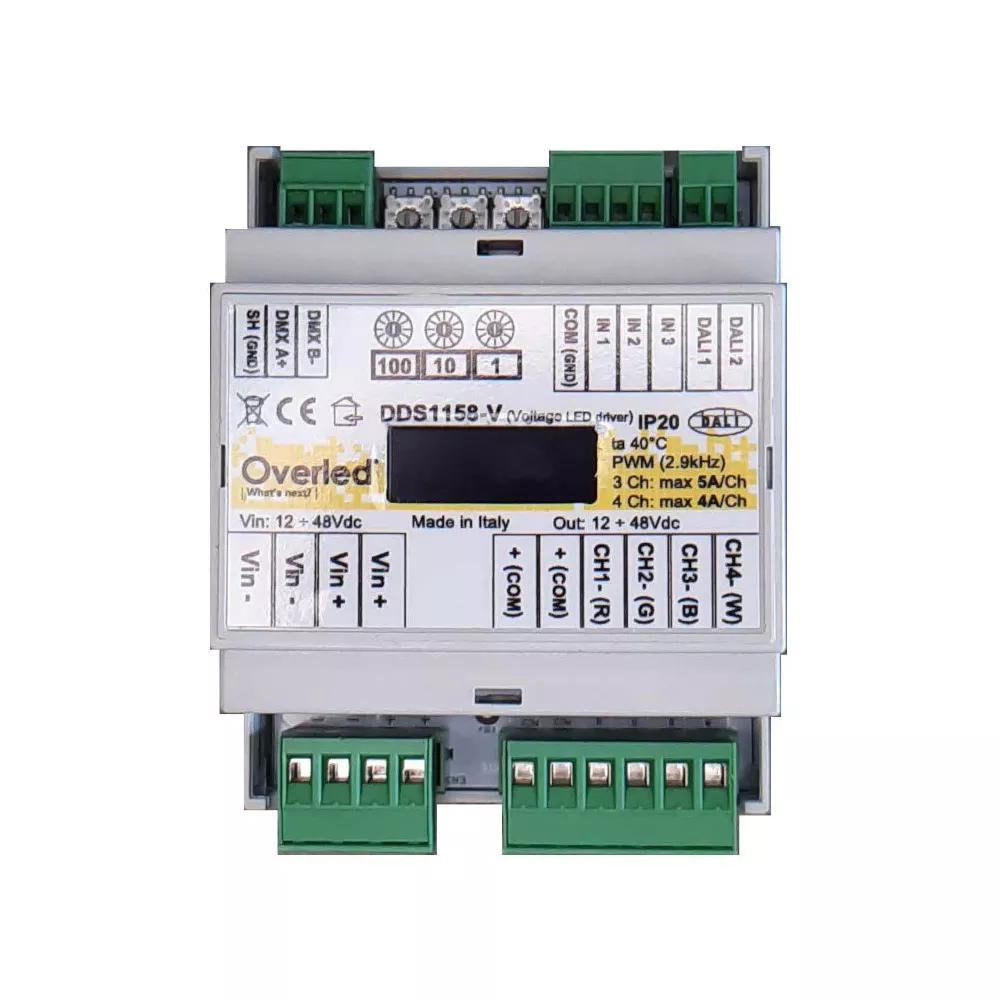

Code C-E300013
Driver DMX/RDM/DALI-2 - 4ch (1-240W DC/ch) - 5A 12V/ch / 4ch (1-120W DC/ch) - 5A 24V/ch / 4ch (1-192W DC/ch) | Multi Channel 4ch. 10~52V DC 768 W
| Family | Multi Channel |
|---|---|
| IP | IP20 |
| Operation | CV |
You've seen 3 products out of 3
