Ribbon
98078
LED Strip | 600 topLED 60 W DC 24 V
12 W/m | 1236 Lm/m
| IP | IP20 |
|---|---|
| Degrees | 116° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 6181 lm |
| Finishes | Text white RAL 9003 |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 103.0 lm/W |
| Source Type | topLED |
Technical description

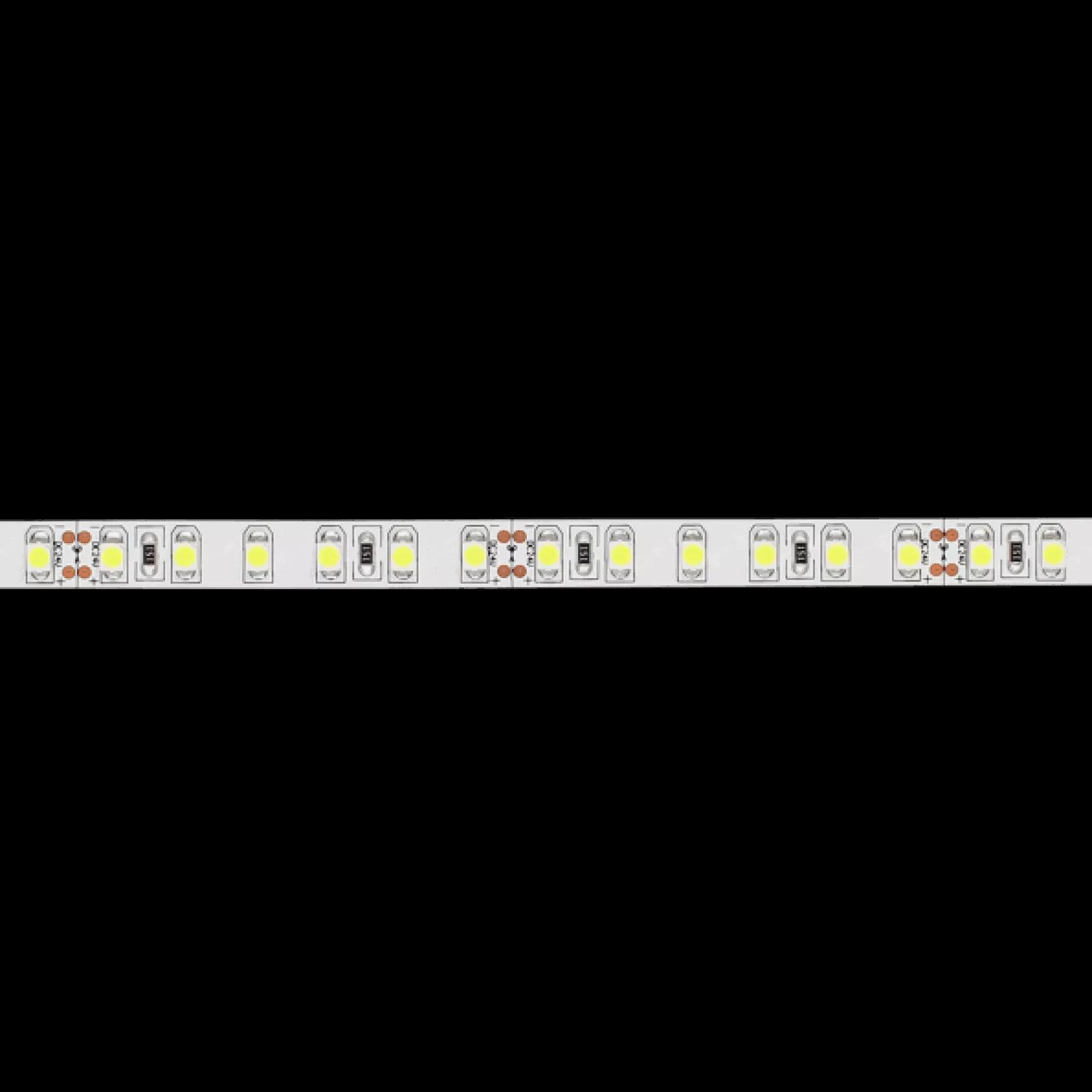

Single emission led strip for indoor application. The super warm white LED light source is composed of 600 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 6180 lm, with a 103.0 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish. The ingress protection degree is IP20; the total weight is of 0.125 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 60 W The power supply cable is included and features a 0.50 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Profiles
You've seen 4 products out of 18

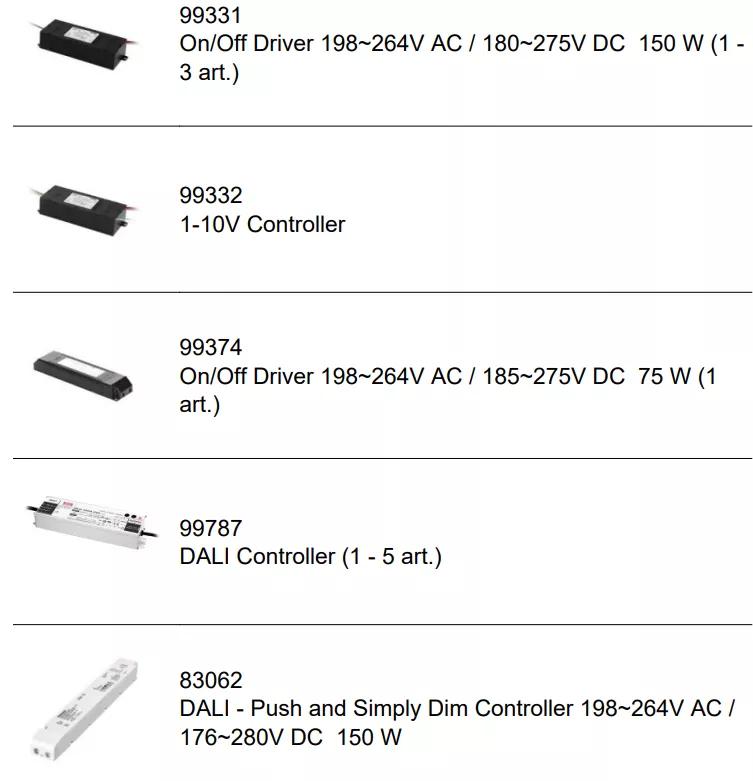

Electronics
Code 99374
Reson_75 | On/Off Driver - Output 3.12A 24V 1-75W | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 83062
DALIFlat Push - Driver DALI PUSH 110 - 6.25A 24V 150W | DALI Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation |
Code 99332
Reson_150 | 0/1-10V Driver 24 V - Output 6.25A 24V 1-150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation |
Code 99331
Reson_150 | On/Off Driver 24V - Output 6.25A 24V 1-150W | On/Off Driver 198~264V AC / V DC
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation |
You've seen 4 products out of 4
Downloads
Documentation

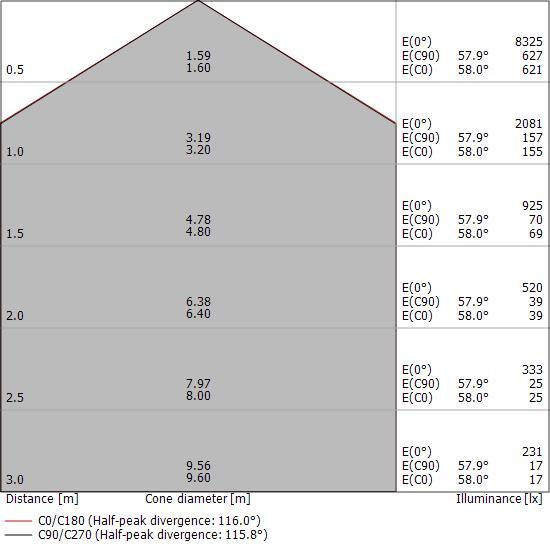

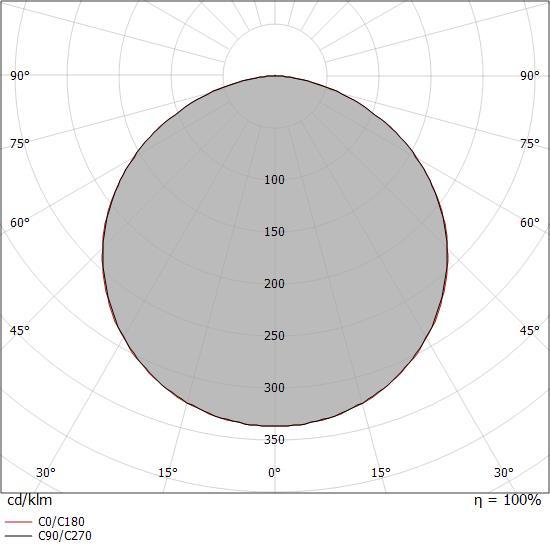

Photometric data
