Lira_W

9341

Outdoor / Wall lighting

Wall Lights | 220-240 V

126 topLED 19 W DC - 21 W AC

IP
IP65
IK
10
Optic
Diffused
Degrees
122.8°
CCT
3000 K
CRI
80
Delivered lumens
1001 lm
Finishes
Black
Installation position
Wall lights
Control
Efficiency
47.7 lm/W
Source Type
topLED
List price (excl. VAT)
316,00 €
Product category
A

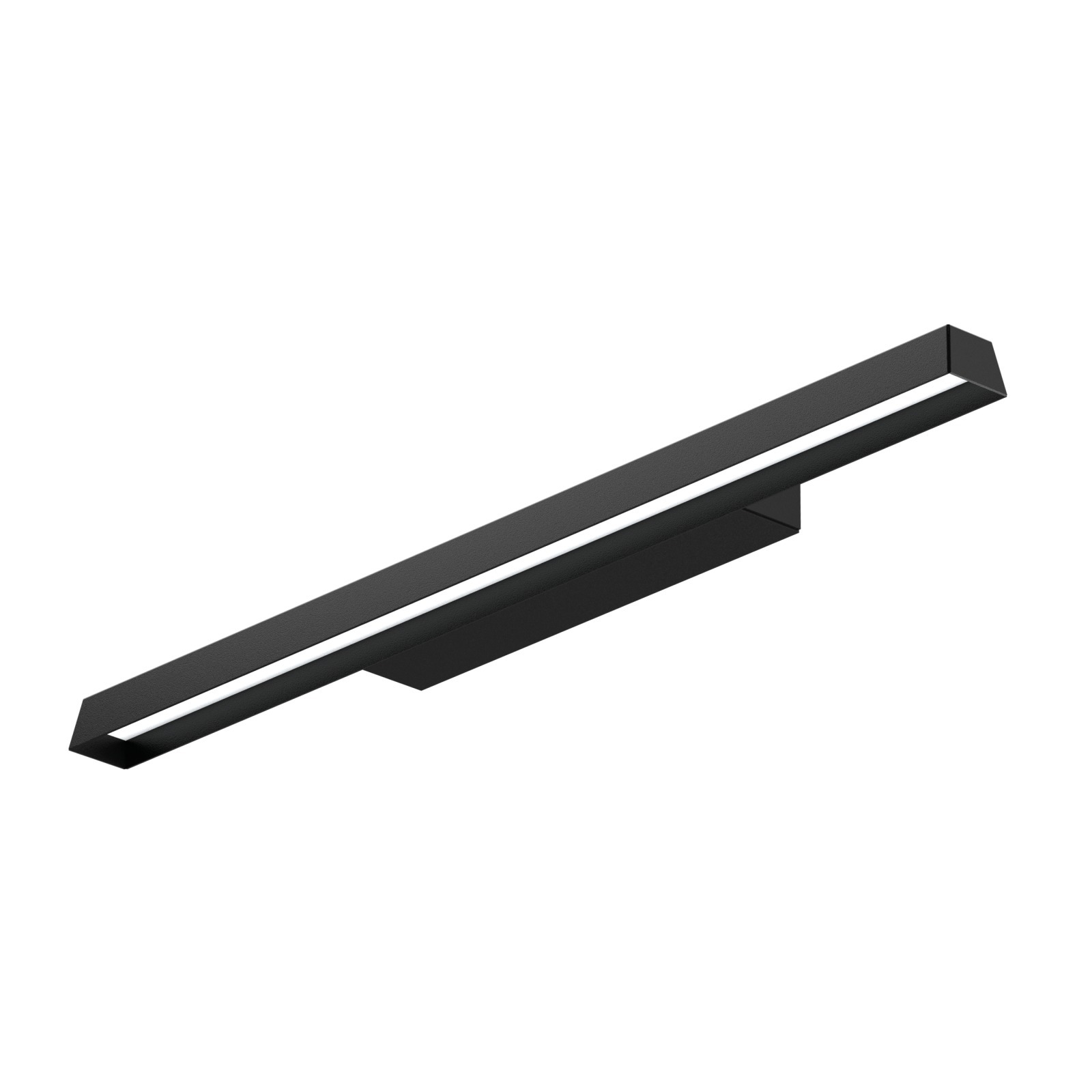

Single emission wall lights for outdoor application. The warm white LED light source with a diffused light distribution is composed of 126 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2952 lm, with a 155.4 lm/W nominal luminous efficacy.

The device body is made of stainless steel and features a text black ral9005 finish, processed by means of coating; the diffuser is made of pu; the mounting frame is made of stainless steel, with a text black ral9005 finish, processed by means of coating. The robust steel structure enhances the fixture’s design and ensures long‑lasting performance, even in the most demanding environments.

The ingress protection degree is IP65; the total weight is of 1.940 kg.

The total absorbed power is 21 W

The device features protection class II and can be wall lights-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Spares parts

.pdf

General

.pdf

Product image

.jpeg

Specification text

.txt

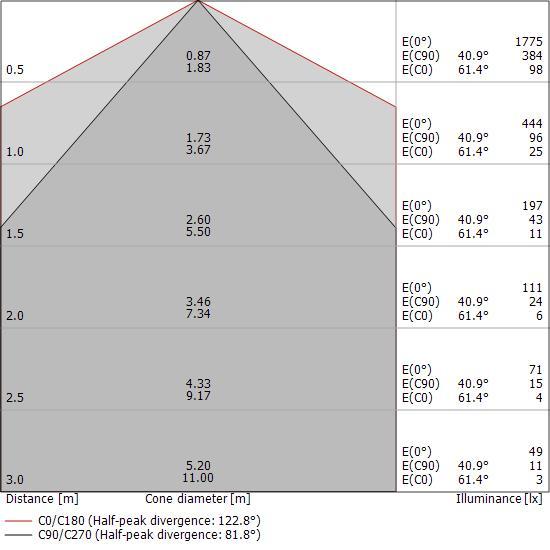

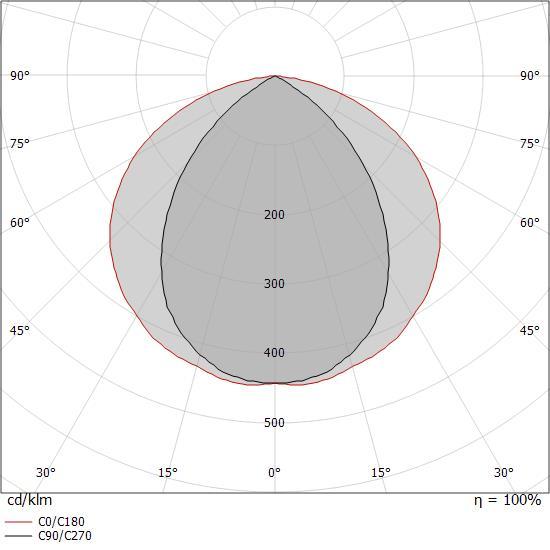

Photometric data

2D/3D Drawings
