Optus_W
77083W30
Indoor / Wall Mounted Lights
Wall Lights
3 arrayLED 45 W DC 1250 mA
| IP | IP20 |
|---|---|
| Optic | Medium Flood |
| Degrees | 38.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 5608 lm |
| Finishes | Text black RAL 9005 |
| Installation position | Wall lights |
| Control | |
| Efficiency | 124.6 lm/W |
| Source Type | arrayLED |
| List price (excl. VAT) | 488,00 € |
| Product category | D |
Technical description

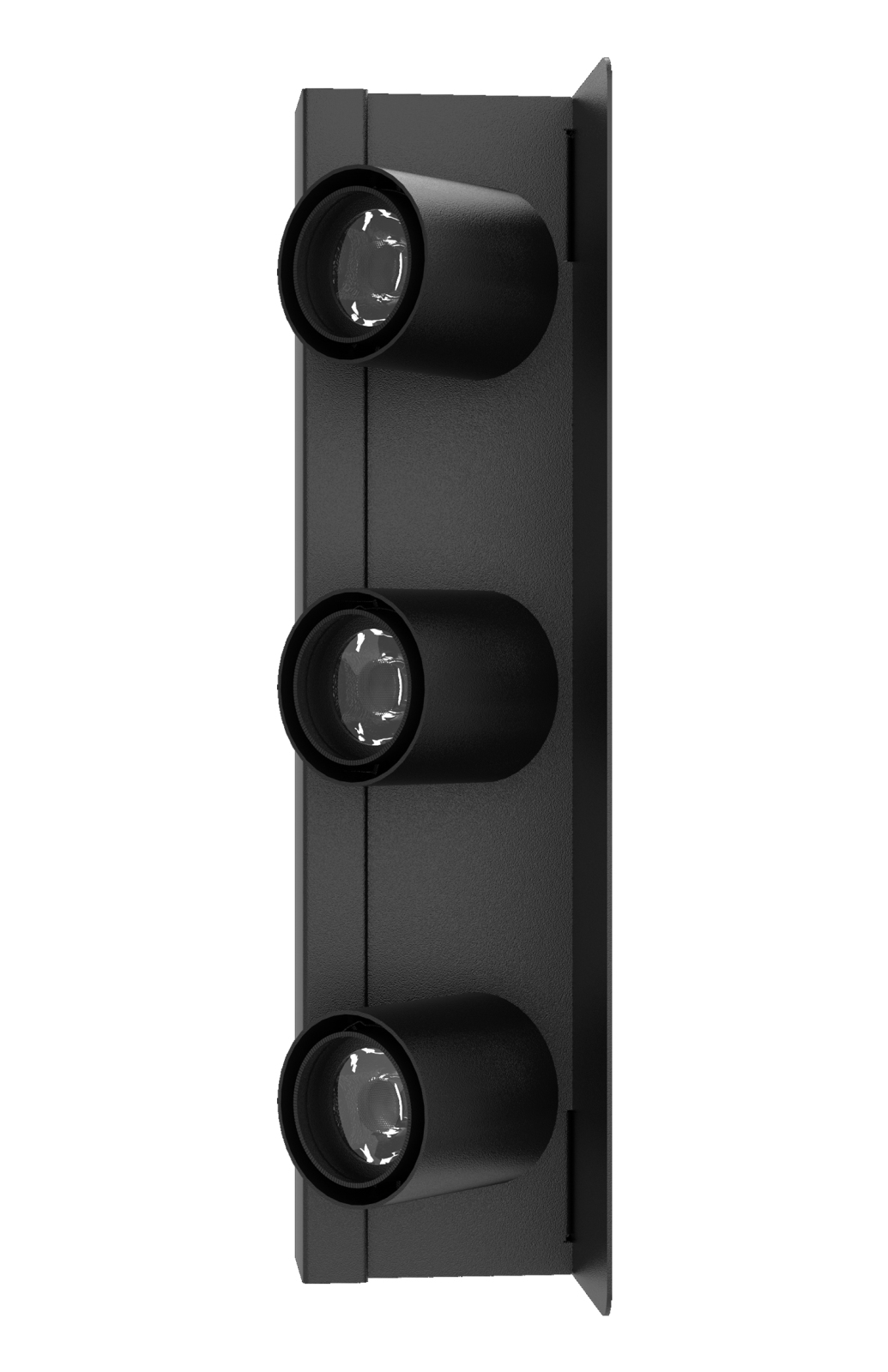

Single emission wall lights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 3 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 7716 lm, with a 171.5 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a text black ral9005 finish, processed by means of powder coating with thermosetting powders.
The ingress protection degree is IP20; the total weight is of 2.7 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 45 W
The device features protection class III and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 83008
Multipower | DALI 2 Push 0/1-10V Multi Current - 350/400/500/600/700/850/950/1200mA 10-53V 45W | 1-10V Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP20 |
| Operation |
Code C-E100048
K53 | Multi Power Driver - Output 500/1200mA 2.5/44V 18/50W | Multi Power 198~264V AC / V DC
| Family | Multi Power |
|---|---|
| IP | IP20 |
| Operation | CC |
You've seen 2 products out of 2
Downloads
Documentation

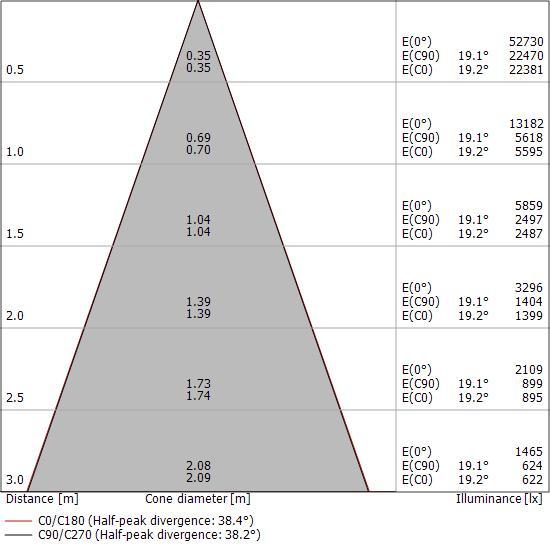

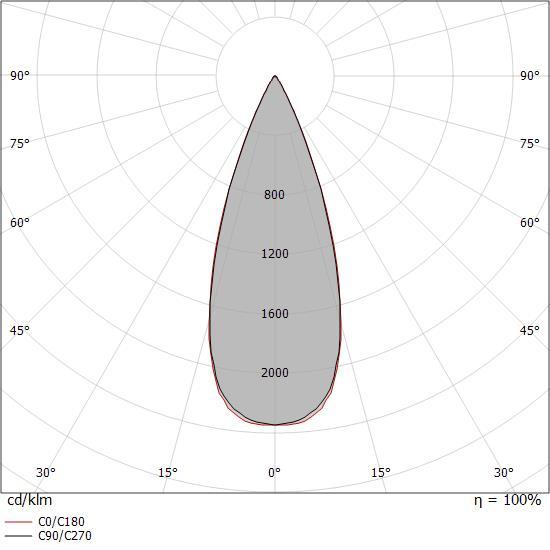

Photometric data
2D/3D Drawings
TM66
Accessories
