Pound_BC
82353W30
Indoor / Ceiling Lights
Ceiling Downlights
1 arrayLED 13 W DC 350 mA
| IP | IP20 |
|---|---|
| Optic | Flood |
| Degrees | 26.2° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 1242 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 95.5 lm/W |
| Source Type | arrayLED |
Technical description

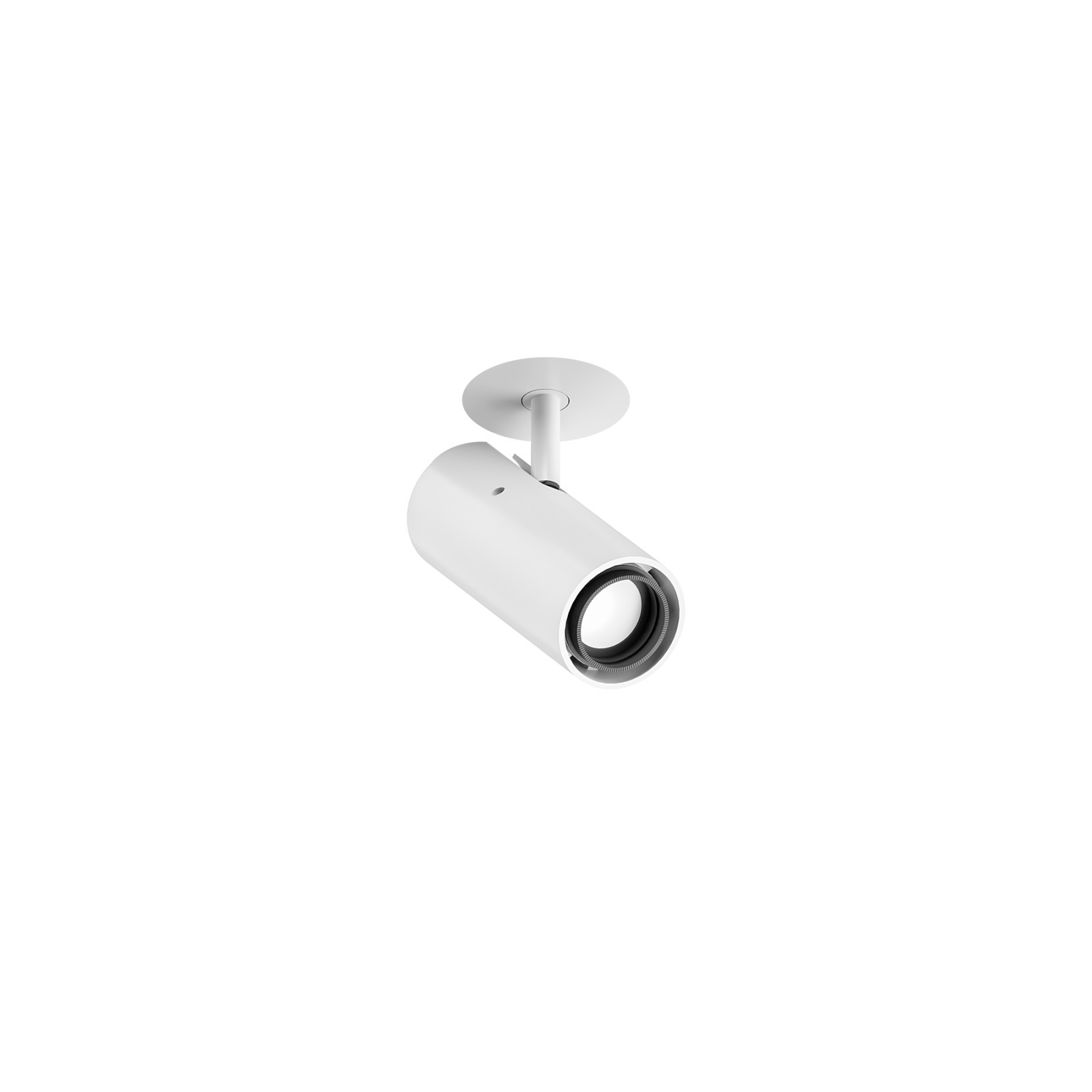

Single emission ceiling downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1771 lm, with a 136.2 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 13 W.
The device features protection class III and can be ceiling-mounted, with a 57 mm diameter hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99375
Slim - On/Off Driver - 350mA 40V 6-12W | On/Off Driver 198~264V AC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 83322
Simon_PRO - DALI2 Push and Simply Dim Multi Current - 200mA/300mA/400mA 15W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 99115
Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC
| Family | Multi Power |
|---|---|
| IP | IP40 |
| Operation | CC |
