PU_C Plus
C0026WDI05019
Outdoor / Flex Lights
LED Strip | 700 topLED 125 W DC 24 V
25 W/m | 2625 Lm/m
| IP | IP66 |
|---|---|
| Optic | Diffused |
| Degrees | 119.4° |
| CCT | 3000 K |
| CRI | >90 |
| Delivered lumens | 11731 lm |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 93.8 lm/W |
| Source Type | topLED |
| List price (excl. VAT) | 288,00 € |
| Product category | A |
Technical description
Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 700 topled LEDs with CCT of 3000 K and a CRI >90; the source luminous flux is 13925 lm, with a 111.4 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish; the diffuser is made of pu.
The ingress protection degree is IP66; the total weight is of 0.575 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 125 W The power supply cable is included and features a 1(M)x0.25m + 1(F)x1 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 | On/Off Driver - Output 3.12A 24V 1-75W | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24 V - Output 6.25A 24V 1-150W | 1-10V Controller
| Family | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 | On/Off Driver 24V - Output 6.25A 24V 1-150W | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Family | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
Power | DALI2 PUSH driver 24V - Output 6.3A 24V 1-150W | Push and Simply Dim Controller
| Family | Controller |
|---|---|
| IP | IP67 |
| Operation |
You've seen 4 products out of 5
Downloads
Documentation

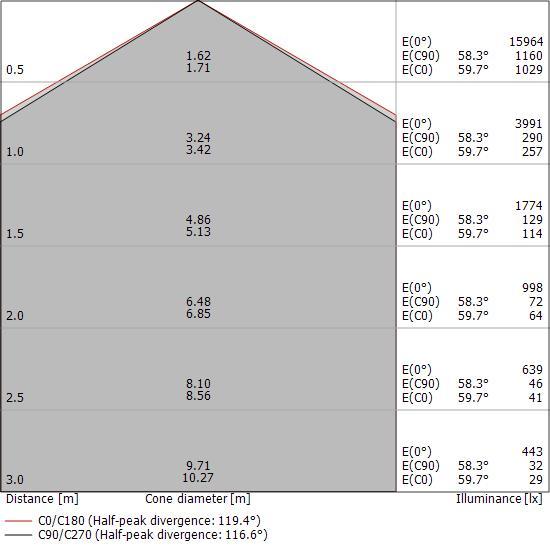

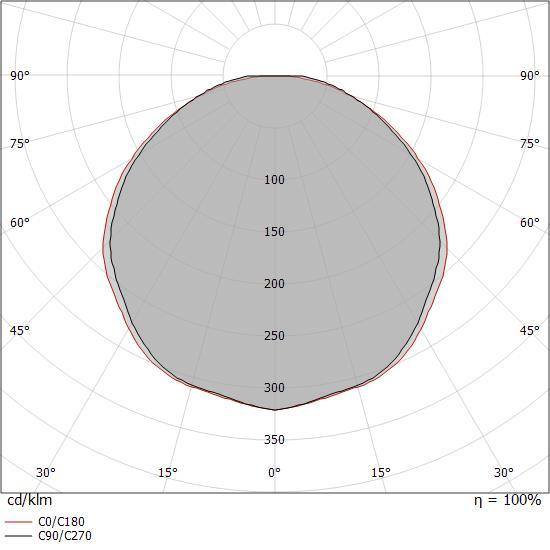

Photometric data
